high quality steel gantry crane wheels
- 1000 Set / Sets per Month
- Qingdao Shanghai Tianjin or any other port in China
- T/T Credit Card
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Henan, China | Brand Name: | KLT CRANE |
Product Description
Xinxiang Kailite Crane Equipment Co., Ltd. Located in the Chinese Crane Hometown, we not only on overhead crane, gantry crane with GB and FEM & DIN standard, but also supply you the related spare parts; crane wheel is one of the main spare parts of crane.
Wheels are also able to be Deep Hardened for heavy wear or load requirements. Wheel is used to support cranes,transfer cars and load, and in orbit to make crane moving back and forth to run the device.

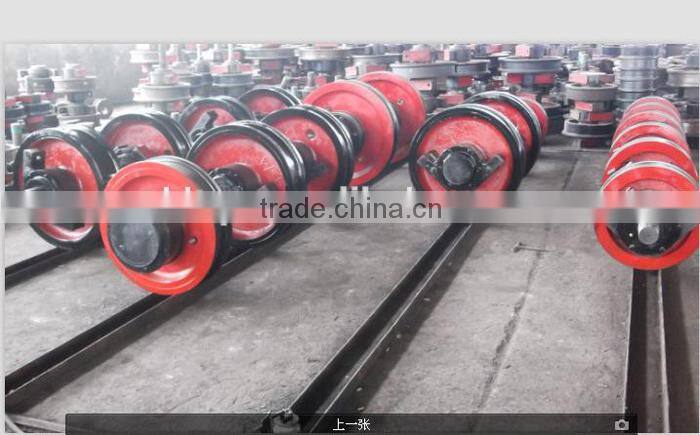

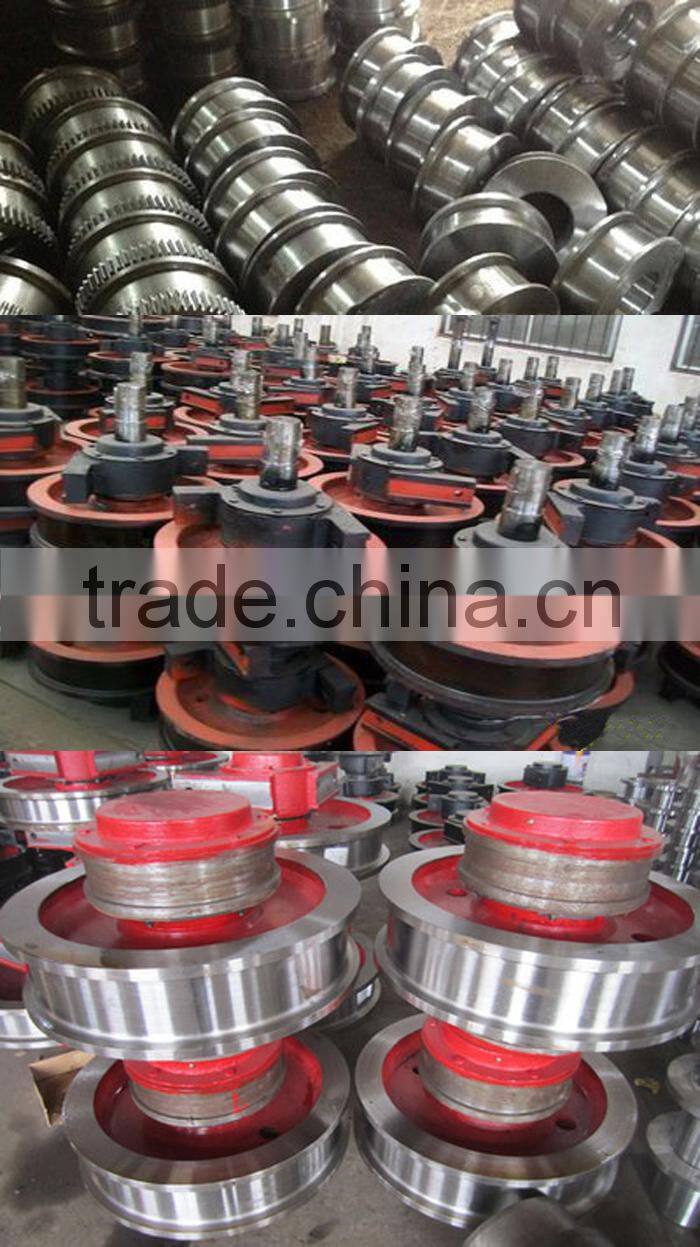

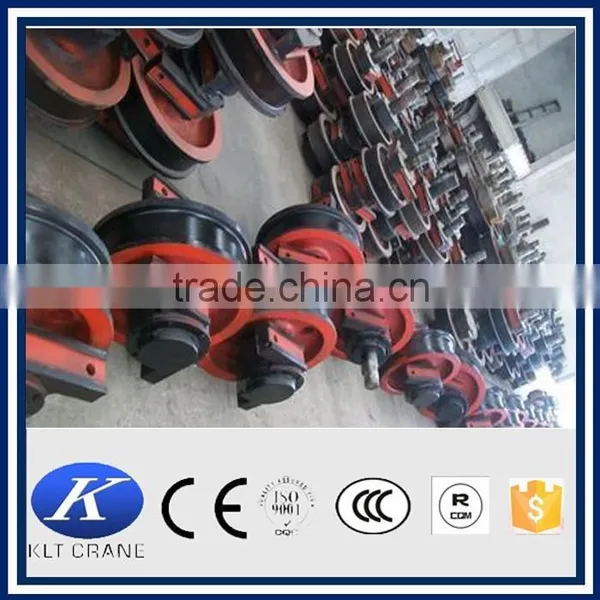

Features of crane wheels
Single edge wheel parts
1.Single edge wheel parts are often used with running wheels of trolleys of bridge crane or gantry crane.
2.Height of wheel flange is 20mm~25mm. It adopts ZG340-640 cast steel or ZG-50SiMn low alloy steel.
3.Quenching depth of wheel tread is no less than20mm.
4.Hardness of rolling surface is 300~350HB for ZG340-640 cast steel wheels;
for ZG50SiMn, hardness 420~480HB.
5.Mechanical property, accuracy and roughness of material accord with JB/T 6392-2008 rules.

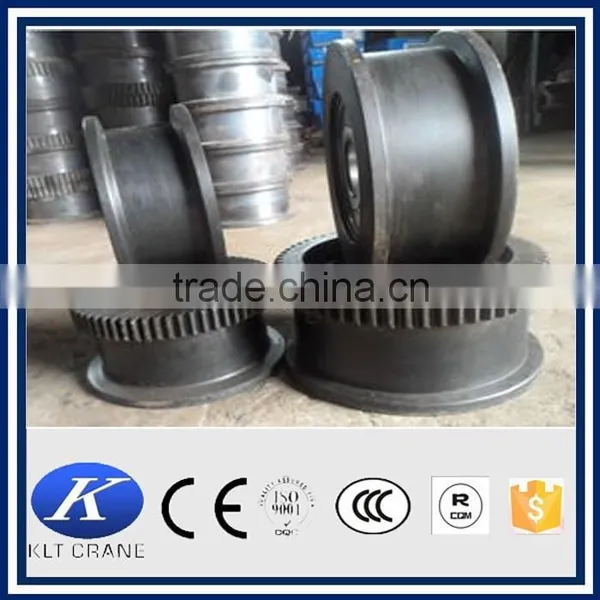

Double edge wheel parts
1.Double edge wheel parts are often used with running wheels of trolleys and cranes of bridge crane or gantry crane.
2.Height of wheel flange is 25mm~30mm. It adopts ZG340-640 cast steel or ZG-50SiMn low alloy steel.
3.Quenching depth of wheel tread is no less than20mm.
4.Hardness of rolling surface is 300~350HB for ZG340-640 cast steel wheels;
5.for ZG-50SiMn, hardness 420~480HB.
6.Mechanical property, accuracy and roughness of material accord with JB/T 6392-2008 rules.
We have a number of wheel patterns, which are not listed, and solicit your inquiries for crane wheels of any style or size.
Crane wheels paremeters
The ranges of applications of crane wheels
Those wheel Assembly are technically advanced and successfully used in different industries like (Steel Plant, Rolling Mill, Cement Plant, Fertilizer Plant, Paper Mill, Chemical Industries etc.) to caring heavy lode country. The most common is the use of the gantry crane.
period for delivery | Within 15 working days after deposit received |
port | Qingdao,Shanghai,Tianjin or any other port in China |
Payment terms | L/C , T/T , Western Union |
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Crane wheels are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane wheels performance!
Within 15days after the deposit received.
Related parts
Crane wheels can be produced a wide range of standard sizes(300mm-1250mm), configuration and surface finish condition.We maintain a large inventory of carbon and alloy steels to meet your specific needs.Besides,we have We have other types of accessories,such as electric chain hoist,lifting hook,grab bucket,explosion-proof,type induction motor,wheel gear,cable drum,resistor of crane,electrical machine,electric cabinet,control linkage,hook assembly and etc.
Our services
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
- Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
If you have any interest in our products or any questions,
please do not hesitate to contact me. I will help you to know
more about our products' detail.
