IP68 Underwater Led Spot Lights 12V 9W LED Light Source

Shenzhen Heguang Lighting Co., Ltd.
IP68 Underwater Led Spot Lights 12V 9W LED Light Source thumbnail-1
IP68 Underwater Led Spot Lights 12V 9W LED Light Source thumbnail-2
IP68 Underwater Led Spot Lights 12V 9W LED Light Source thumbnail-3
IP68 Underwater Led Spot Lights 12V 9W LED Light Source thumbnail-4
IP68 Underwater Led Spot Lights 12V 9W LED Light Source thumbnail-5
IP68 Underwater Led Spot Lights 12V 9W LED Light Source thumbnail-6

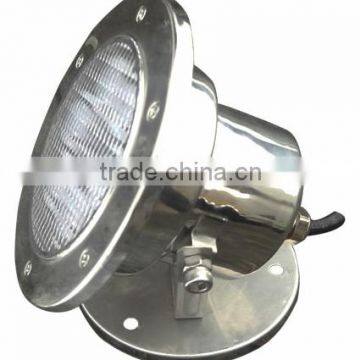

IP68 Underwater Led Spot Lights 12V 9W LED Light Source photo-1
IP68 Underwater Led Spot Lights 12V 9W LED Light Source photo-2
IP68 Underwater Led Spot Lights 12V 9W LED Light Source photo-3
IP68 Underwater Led Spot Lights 12V 9W LED Light Source photo-4
IP68 Underwater Led Spot Lights 12V 9W LED Light Source photo-5
IP68 Underwater Led Spot Lights 12V 9W LED Light Source photo-6
US$ 24 - 38 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar, Bridgelux, Epileds
Input Voltage(V):
AC/ DC 12V
Lamp Power(W):
12
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar, Bridgelux, Epileds
Input Voltage(V) AC/ DC 12V
Lamp Power(W) 12
Lamp Luminous Flux(lm) 350±10%Lm
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other, RGB
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 30000
Lamp Body Material Stainless Steel
IP Rating IP68
Certification CE, EMC, FCC, LVD
Place of Origin Guangdong, China
Brand Name Heguang Lighting
Model Number HG-P38U-9*1W/12*1W

LED underwater light

Product Description





Specification

Parameter

Model No.

HG-P38U-9*1W

HG-P38U-12*1W

LED Qty.

9 pcs 1W High power

12 pcs 1W High power

Input Voltage

AC/DC 12V

AC/DC 12V

Input Frequency

50/60 Hz

50/60 Hz

Power

10±1 W(W/G/B/RGB)

6±1 W(red)

13±1 W(W/G/B/RGB)

8±1 W(red)

Luminous flux

600±10%Lm(P.W)

580±10%Lm(W.W)

550±10%Lm(C.W)

200±10%(R) / 400±10%(G)

80±10%(B) /260±10%(RGB)

780±10%Lm(P.W)

750±10%Lm(W.W)

700±10%Lm(C.W)

280±10%(R) / 520±10%(G)

120±10%(B) /350±10%(RGB)

Color temperature

p.w.6000~7000k

w.w.:3000-3500k

c.w.8000~10000k

p.w.6000~7000k

w.w.:3000-3500k

c.w.8000~10000k

Wave Length

R:620-630 K/nm

G:515-525 K/nm

 B:460-470 K/nm

R:620-630 K/nm

G:515-525 K/nm

 B:460-470 K/nm

Dimension

147×123 mm

147×123 mm

Working temperature

-20~50℃

-20~50℃

Storage Temperature

-20~50℃

-20~50℃

Base

wire

wire

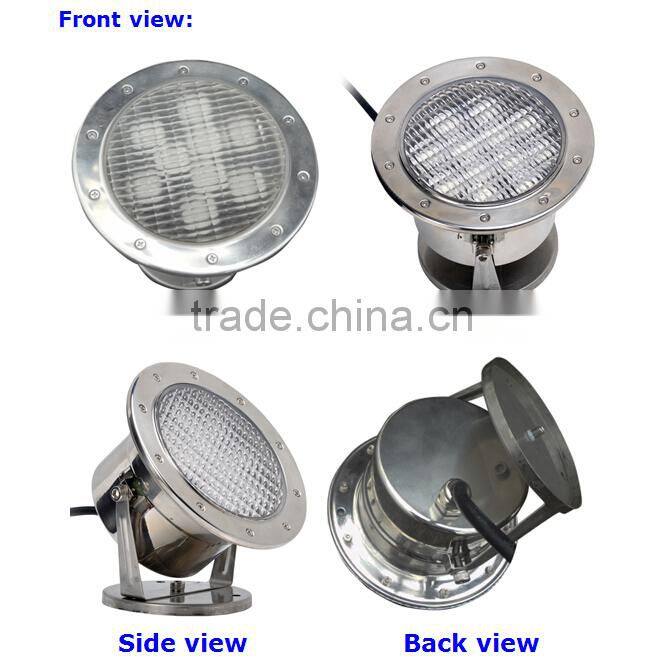

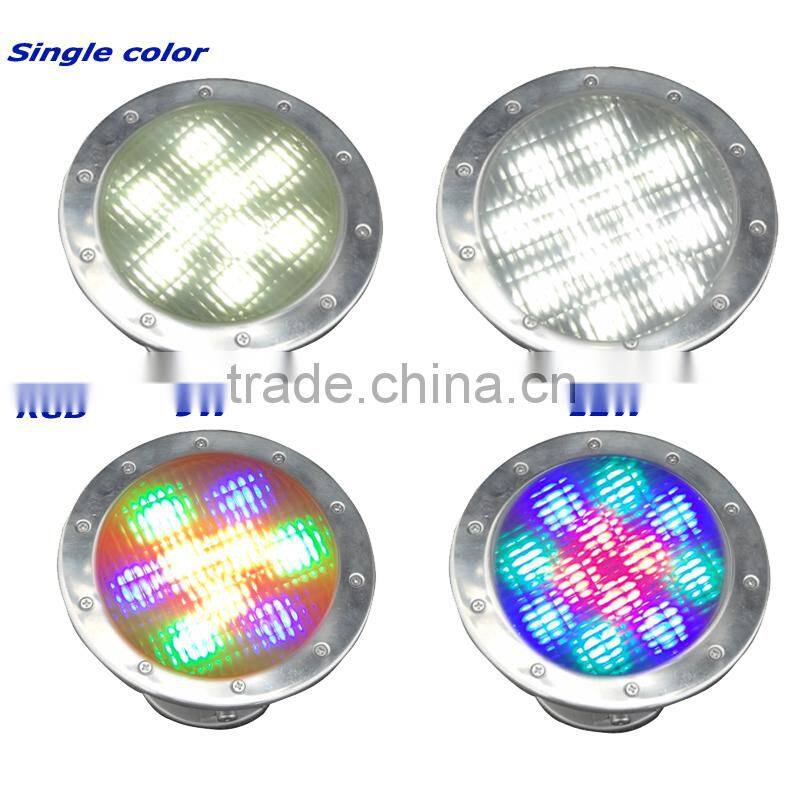

Picture Show

    IP68 underwater led spot lights 12V 9W LED Light SourceIP68 underwater led spot lights 12V 9W LED Light Source

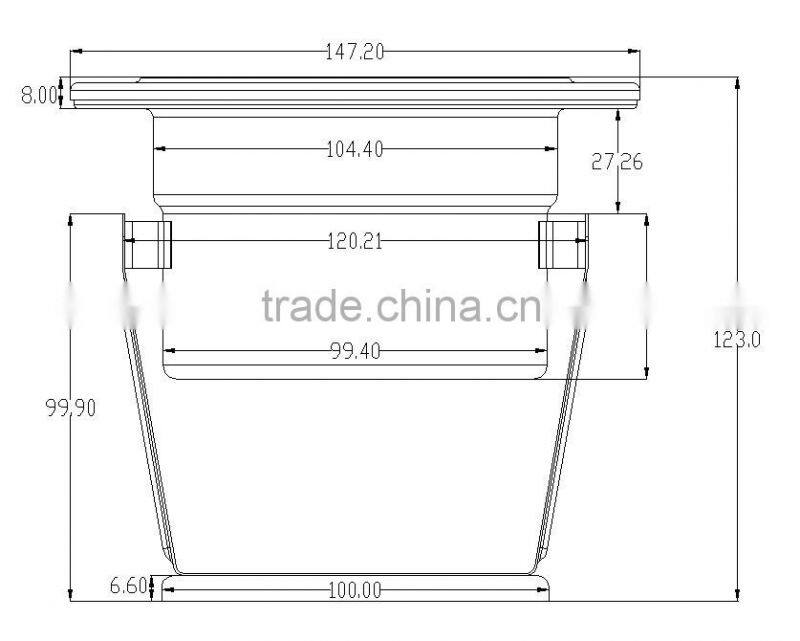

9W 12W size:

IP68 underwater led spot lights 12V 9W LED Light Source



Installation:

IP68 underwater led spot lights 12V 9W LED Light Source



Remote control: RGB Remote control (with RGB controller):IP68 underwater led spot lights 12V 9W LED Light Source

RGB Controller Connection diagram:

IP68 underwater led spot lights 12V 9W LED Light Source

Applications



Applications: garden pond, square, water column, flower-bed in villas, garden, rocky water-fall, outdoor fountain, etc.

 IP68 underwater led spot lights 12V 9W LED Light Source

Packaging & Shipping

Model no.

N.W./pc

(kg)

Box dim

(cm)

G.W./pc

(kg)

Ctn dim

(cm)

Ctn.Qty.

(pcs)

G.W./ctn

(kg)

HG-P38U-9x1W

0.63

15.5x13x17

0.75

65x49x37

30

23.5

HG-P38U-12x1W

0.64

15.5x13x17

0.76

65x49x37

30

24



IP68 underwater led spot lights 12V 9W LED Light Source



LED underwater lights

Company Information

IP68 underwater led spot lights 12V 9W LED Light SourceIP68 underwater led spot lights 12V 9W LED Light SourceIP68 underwater led spot lights 12V 9W LED Light Source

Exhibition show

IP68 underwater led spot lights 12V 9W LED Light SourceIP68 underwater led spot lights 12V 9W LED Light SourceIP68 underwater led spot lights 12V 9W LED Light Source

LED underwater Light

Our Services

Our products

IP68 underwater led spot lights 12V 9W LED Light Source

CE, RoHs Compliance

All our products are IK10, CE, RoHs,and FCC compliance.



Customer range

Europe(France, Germany, Netherland, Belgium, Italy, UK, Spain, Poland, Sweden, etc.)

North American(U.S.A., Canada, Mexico)

South America( Brazil, Argentina, Chile, etc).

Australia, New zealand; Africa(South Africa, Egypt, etc.)

Asia(Singapore, Japan, Thailand, Malaysia, etc.),



M.O.Q.

Gernerally, we don’t require M.O.Q. in order to help some clients to expand their business & keep the ball rolling.



Lead time

7-13 working days based on stock material and order quantity.



Payment

T/T, Western Union or LC(at sight)



Incoterms

EX-Factory/work, FOB, CIF



Warranty

All our products are covered by 24 months warranty from the date of purchase

We are not responsible for any damage caused by unproper use/assembling or force majeure
