material handling clam bucket
- 3000 Set / Sets per Month
- Shanghai Qiandao Tianjin
- T/T Credit Card PayPal
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Hainan, China | Brand Name: | KLT CRANE | Model Number: | U |
Product Description

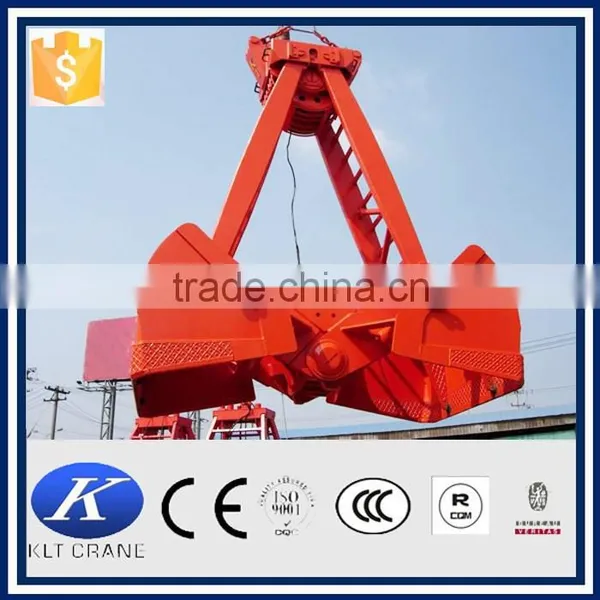

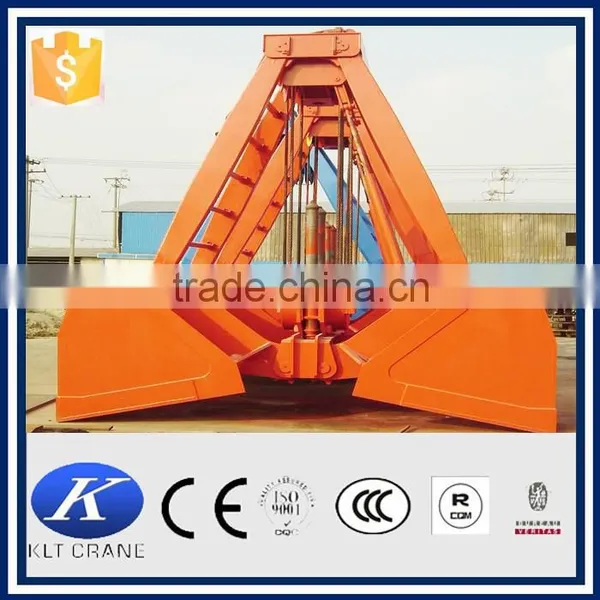

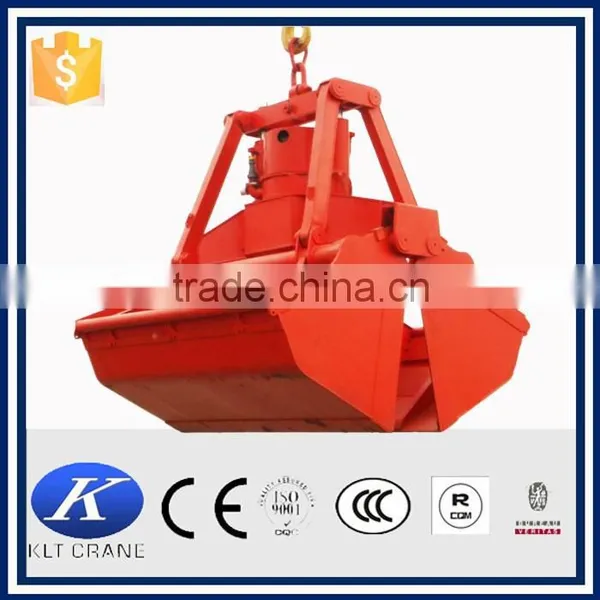

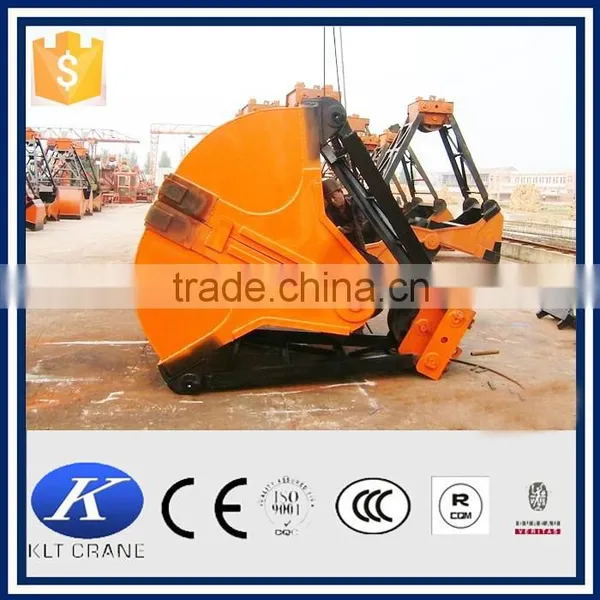

material handling clam bucket
1.Grab bucket has no retractable structure, and is usually driven by ropes or connecting rod force. According to operating characteristics, it can be divided into single rope grab and twin rope grab which is in the most common.
2. Single-grab: support rope and open closed rope use the same one. Through special lock catch device, wire rope can take turns to play the role of supporting, opening and closing. The coiler mechanism of single coiler is simple, but production efficiency is low, so it is not often used when a factory has a large number of loading and unloading.
3. Double-rope grab: there are supporting rope and open closed rope which are respectively around the coiling block of supporting mechanism and opening/closing mechanism. It has such features as reliable work, simple operation, high production efficiency and wide application.It will be four-rope grab after adopting two groups of double ropes, and it has the same working course as double-rope grab.
4. According to bulk density of grabbed materials, grabs can be classified into light, medium-size and heavy ones. On the basis of the number of jaw plates, it can also be single-jaw grab and double-jaw grab which is used in the most common.Multi-jaw grab should be adopted for lump ore, scrap iron and steel scrap because it has such features as multi grabs and sharp cut, and it is easy to plug into material pile. This can get a better grab.
1. Suitable to grab sand,coal,grain, slag,scrap
2. through beam is shortened,high strength,light self weight
3. main shaft sleeve is of bearing steel,Pin shaft material is 40Cr
4. High temperature resistant bearing for pulley
5. knife edge plate adopts wear-resisting steel plate,adopts multilayer sealing craft
6. dirt proof and water proof and it could be underwater operation.
7. Clearance of two knife dege plate is very small,0.3mm,good sealing, keep working site clean.
8. whole structure is strong andnot distortion,good sealing.
Safety features
1).Overload protection;Main lifting motor with thermal protection;Rubber buffers
2).Crane switch and travel end switch.
3).All cranes must be preassmebled and tested before leaving factory and offer the certification of test.

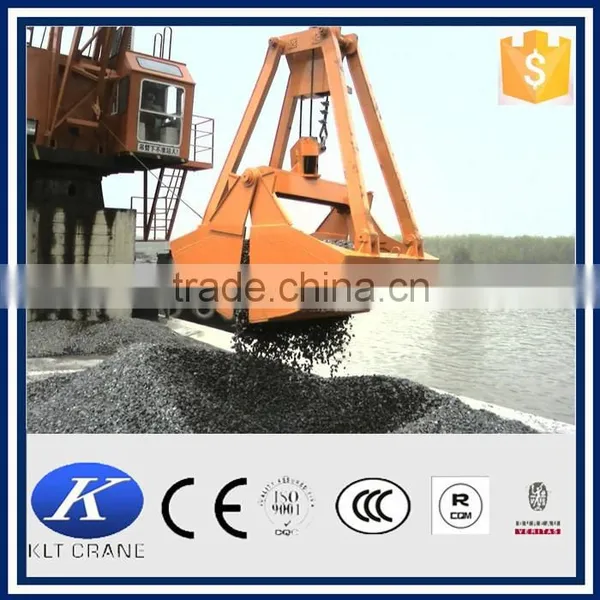

Hydraulic grab bucket is widely used in ship, port, railway station, factory, mine and material stock, station,
coal yard to conduct lifting bulk cargo such as coal, ore powder, fertilizer and sand.
Working Environment
1.The working environment temperature is -25 °C ~ +45 °C,
2.not be used in explosion, flammable, corrosive, toxic places, etc.
3.Please noticed in advanced when to grab underwater materials or special materialsIt's not suitable for lifting blazing & melting metal
4.The crane can be used for both indoor and outdoor operations and water proof cloth is needed in out door
operation.
Our professional engineer can also customize the grab bucket as per your needs.
Grab series
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane ,jib crane , electric hoist ect. If you have any interests in those products,please contact me or scan our website www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Our high quality products and prestige enjoy unanimous favorable comments of customers from America,Pakistan,South Africa,Qatar,Mexico,India,Thailand,Malaysia and so on, they sell well all over the world. You really have a good taste on our products!
You can use our cranes at ease, the best after-sales service will be offered from KAILITE
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Freely provide project designing, process designing, choosing suitable equipment for you.
4, Exclusive engineer support at any time.
5, Technical advisory for any time
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services.
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
3.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
4. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
5. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and span.
6. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them fir st, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here
7. How about the warranty?
Our warranty is 1 year, within 1 year, any questions, we send spare parts as free.
Note: As this kind of bucket is customized, in order to offer you most suitable design and best
solution, please confirm following information when you send inquiry.
1.Lifting what material
2.Volume
3.Machine height.
4.Machine weight
5.Power:--V--Hz--Phase
This is only an overview of our products ,for more details,please never hesitate to contact vivian !
