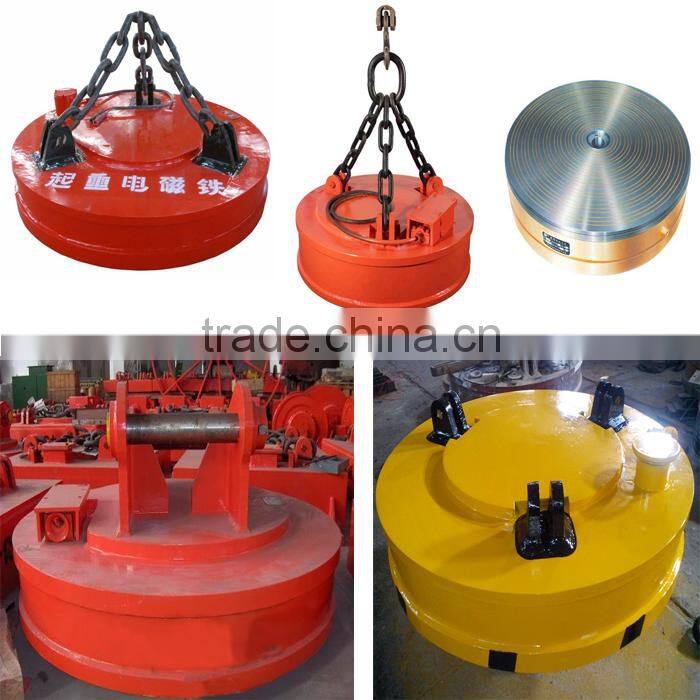

- Application in factories, docks, warehouses and transportation, also metallurgy, mining, machinery industry, transportation etc to load, unload, and move iron or steel blocks, cylinders and so on;
- Adopts electromagnetic disk as the lifting device;
- Beautifully designed and is widely used;
- Magnetic force strong, permanent, and high efficiency;
- Consist: bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuc
2.Product Features about magnetic plate :
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint
3.Safety Features of magnetic plate :
- Overload protection,
- Main lifting motor with thermal protection,
- Hooks with latch,
- Rubber buffers
- Protective earthing,
- Crane switch and travel end switch,
- Emergency switch can stop all movement when any dangerous happened,
- Sub-assemblies characteristic are tested before assemly.
- All crane must be pre-assmebled and tested before leaving factory and offer the certification of test.
High efficient crane lifting magnet, magnetic plate | ||||||
| Type |
Electric current |
Cold power |
Load capacity(cold/hot) |
Quality(kg) | ||
|
steel ball |
steel ingot |
cuttings | ||||
| MW5-70L/2 | 12.77 | 2.8 | 2500 | 380/200 | 120/100 | 520 |
| MW5-80L/2 | 16.1 | 3.54 | 3000 | 480/250 | 150/130 | 650 |
| MW5-90L/2 | 20.5 | 4.5 | 4500 | 600/400 | 250/200 | 900 |
| MW5-110L/2 | 27.5 | 6 | 6500 | 1000/800 | 450/400 | 1500 |
| MW5-120L/2 | 33.6 | 7.4 | 7500 | 1300/1000 | 600/500 | 1800 |
| MW5-130L/2 | 40.6 | 8.9 | 8500 | 1400/1100 | 700/600 | 2100 |
| MW5-150L/2 | 51.4 | 11.3 | 11000 | 1900/1500 | 1100/900 | 3200 |
| MW5-165L/2 | 60.6 | 13.3 | 12500 | 2300/1800 | 1300/1100 | 3500 |
| MW5-180L/2 | 95 | 20.9 | 14500 | 2750/2100 | 1600/1350 | 4500 |
| MW5-210L/2 | 104 | 22.9 | 21000 | 3500/2800 | 2200/1850 | 7550 |
| MW5-240L/2 | 118.6 | 26 | 28000 | 4800/3800 | 2850/2250 | 9700 |
5.Advantages of magnetic plate :
- lightly and ingeniously structured;
- easy for application;
- strong magnetic attraction power;
- safe in handling;
- weight overload protection device, Top quality long time bearing polyurethane materials buffer,crane traveling limit switch, voltage lower protection function, emergency stop system, current overload protection system and so on!
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 15 working days after the deposit received.
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
If you have any interest in our products or any questions,
please do not hesitate to contact me. I will help you to know
more about our products' detail.
