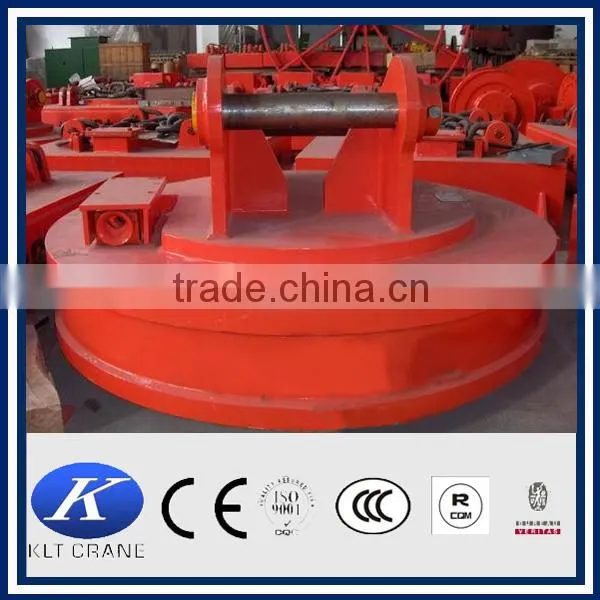

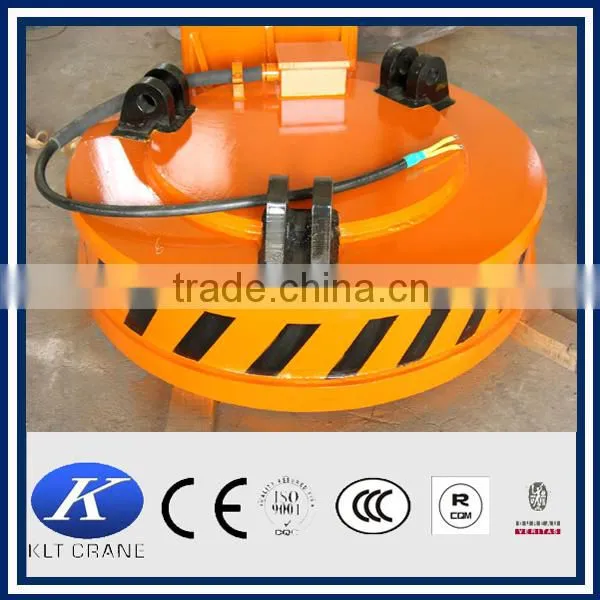

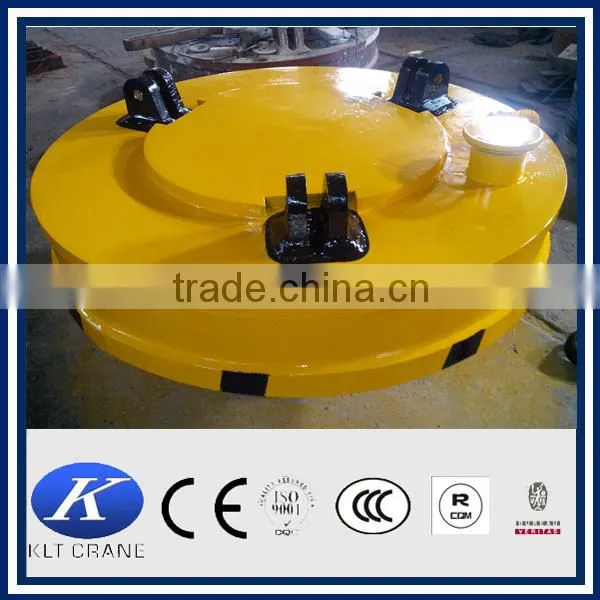

1 ton lifting magnet
1. Brief introduction of magnet lifter:
MW5 series of circular magnet lifter are extremely convenient and economical
and find wide application in handling different kinds of scrap such as pig-iron,
steel turnings, ingots, slab, cut-pieces of plates, channel beams etc.
Lifting capacity of the magnet lifter is strongly influenced by air gaps between
the loose pieces of scrap. Therefore, the Circular Lifting Magnets have larger
diameter to overcome the effect of air-gaps introduced by loose scrap. Lifting
capacity is also reduced drastically if the scrap material is highly porous or it
contains high percentage of carbon as the magnetic property reduces due to
high carbon content
2. Product features of magnet lifter:
1) Reasonable structure 2) Favorable performance 3) Smooth starting and stopping
4) Safe and reliable traveling 5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or
stepless speed change 9)Primer and finishing paint
3. Safety features of magnet lifter:
- Overload protection, Main lifting motor with thermal protection,
- Hooks with latch, Rubber buffers Protective earthing,
- Crane switch and travel end switch,
- Emergency switch can stop all movement when any dangerous happened,
- Sub-assemblies characteristic are tested before assemly.
4. Advantages of magnet lifter:
- lightly and ingeniously structured; easy for application;
- strong magnetic attraction power; safe in handling;
- weight overload protection device, Top quality long time bearing polyurethane materials buffer,cranetraveling limit switch, voltage lower protection function, emergency stop system, current overload protection system and so on!
A. Normal temperature type (DC-220V TD-60%)
B. High frequency type (DC-220V TD-75%)
C. High temperature type (DC-220V TD-60)
A. Normal temperature type (DC-220V TD-60%)
Model |
Diameter (mm) |
Current (A) |
Power (kW) |
Lifting capacity (cold/hot state) (kgs) |
||
Steel ball |
Steel ingot |
Steel scrap |
||||
MW5-70L/1 |
700 |
15 |
3.3 |
2500 |
380/200 |
120/100 |
MW5-80L/1 |
800 |
18 |
3.96 |
3000 |
480/250 |
150/130 |
MW5-90L/1 |
900 |
26.6 |
5.85 |
4500 |
600/400 |
250/200 |
MW5-110L/1 |
1100 |
35 |
7.7 |
6500 |
1000/800 |
450/400 |
MW5-120L/1 |
1200 |
45.5 |
10 |
7500 |
1300/1000 |
600/500 |
MW5-130L/1 |
1300 |
54 |
11.9 |
8500 |
1400/1100 |
700/600 |
MW5-150L/1 |
1500 |
71.2 |
15.6 |
11000 |
1900/1500 |
1100/900 |
MW5-165L/1 |
1650 |
75 |
16.5 |
12500 |
2300/1800 |
1300/1100 |
MW5-180L/1 |
1800 |
102.4 |
22.5 |
14500 |
2750/2100 |
1600/1350 |
MW5-210L/1 |
2100 |
129 |
28.4 |
21000 |
3500/2800 |
2200/1850 |
MW5-240L/1 |
2400 |
154 |
33.9 |
26000 |
4800/3800 |
2850/2250 |
B. High frequency type (DC-220V TD-75%)
C. High temperature type (DC-220V TD-60)

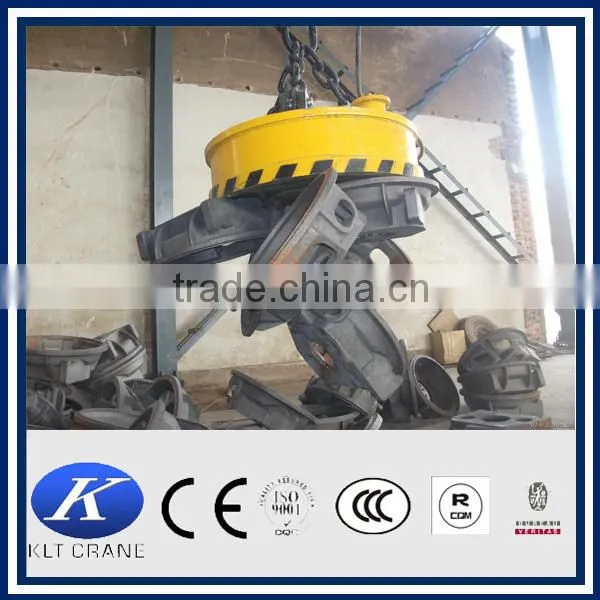

MW5 series magnet lifter uitable for transferring cast ingots, steel balls, metal

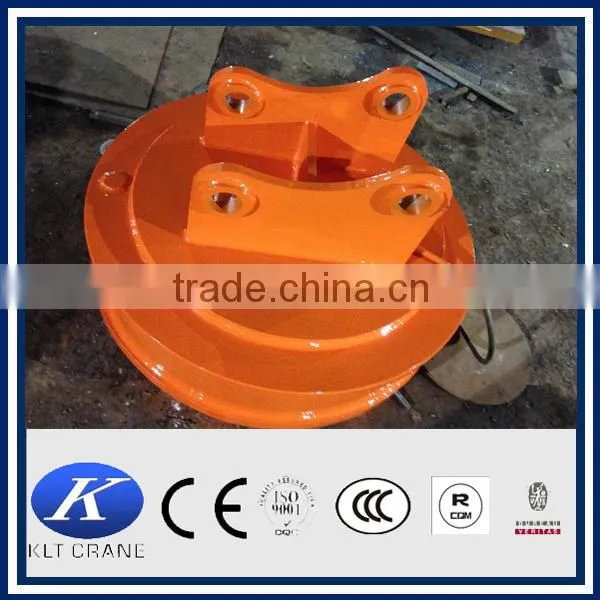

and steel scraps. The electromagnet can be fitted on excavator or crane.
We also have other types of magnet crane for your choise:
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
There is always one type suitable for you.
According to meet various requirements from customers, we also produce gantry crane, electric
flat car, overhead/bridge crane, jib crane, electric hoist ect. If you have any interests in those
products, please contect me or scan our wedsite www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long
trading history, having rich technical experience. We are located in Xinxiang- -the crane's hometown,
having passed the ISO9001 quality system certification, ISO14001 environmental management
system certification and OHSAS18001 occupational health and safety management system certification
of enterprise, and CE certification. Our trademark is "KAILITE", and our company's operation principle
is "science and technology innovation, people oriented". All of our lifting devices and our innovation are
built on the basis of the safety of users.
Customer Visit
Our service
We also supply spare parts and supply technical supporting all the time.(Spare parts:
control button, travel switch, Oil cylinder seals and the wrench etc.)
Service we can provide
1.Payment terms is flexible; Delivery on time
2.Design the crane according to your technical request
3.Our engineer can arrive to the installation site to help fixing the crane for you
FAQ
1. Is your product customized?Thanks for your question. Yes, because the working condition are different, all our products
are customized depending on detail requirement! So if you give us more information about
the lift capacity, span, lift height, power source and other specials, we will give you a very
quick quote!
2. What’s the information should I provide when inquiry?Thanks for your question. The more information you provide, the accurate solution we
can prepare for you!
The information such as :
- Kinds of product you need?
- Working condition. Which material to lift? Temperature?
- Lifting capacity?
- Lifting height( distance from hook center to ground).
- Span(span=distance between center of two rails). With cantilever or not?
- Lift speed. (single or double? )
- Control mode(pendent line or wireless or cabin)?
- Do you need us supply the rails? How long is it?
- Power supply; Voltage(In China, it’s 380V 50Hz 3Phase)?
