Safety is our culture, quality is our aim.
electric magnetic lift, lifting magnet crane

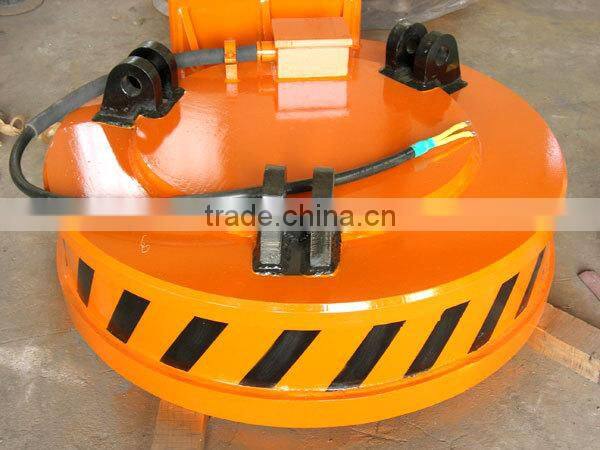

1. Brief introduction of magnetic lift:
electric magnetic lift, lifting magnet crane
MW5 series of magnetic lift are extremely convenient and economical

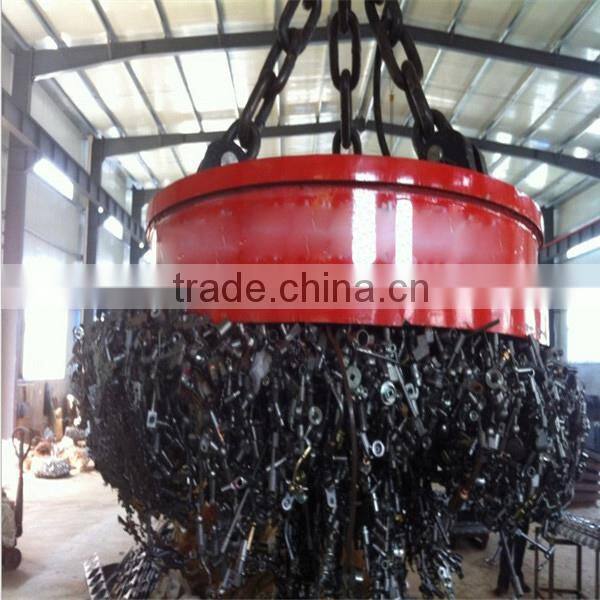

and find wide application in handling different kinds of scrap such as pig-iron,
steel turnings, ingots, slab, cut-pieces of plates, channel beams etc.
Lifting capacity of magnetic lift is strongly influenced by air gaps between
the loose pieces of scrap. Therefore, the circular magnetic lift have larger
diameter to overcome the effect of air-gaps introduced by loose scrap. Lifting
capacity is also reduced drastically if the scrap material is highly porous or it
contains high percentage of carbon as the magnetic property reduces due to
high carbon content
2. Product features of magnetic lift:
electric magnetic lift, lifting magnet crane
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change 9)Primer and finishing paint
3. Safety features of magnetic lift:
electric magnetic lift, lifting magnet crane
- Overload protection, Main lifting motor with thermal protection,
- Hooks with latch, Rubber buffers, Protective earthing,
- Crane switch and travel end switch,
- Emergency switch can stop all movement when any dangerous happened,
- Sub-assemblies characteristic are tested before assemly.
4. Advantages of magnetic lift:
electric magnetic lift, lifting magnet crane
- lightly and ingeniously structured; easy for application;
- strong magnetic attraction power; safe in handling;
- weight overload protection device, Top quality long time bearing polyurethane materials buffer,cranetraveling limit switch, voltage lower protection function, emergency stop system, current overload protection system and so on!
A. Normal temperature type (DC-220V TD-60%)
B. High frequency type (DC-220V TD-75%)
C. High temperature type (DC-220V TD-60)

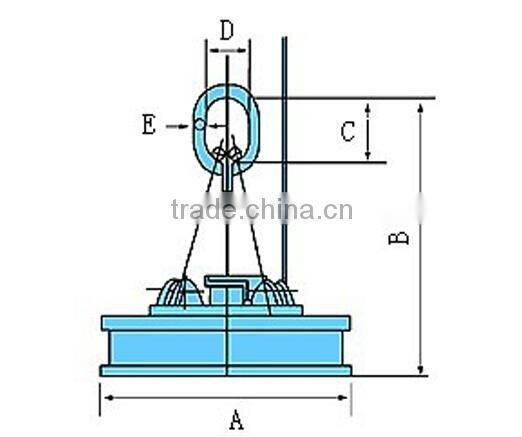

A. Normal temperature type magnetic lift (DC-220V TD-60%)
Model | Diameter (mm) | Current (A) | Power (kW) | Lifting capacity (cold/hot state) (kgs) | ||
Steel ball | Steel ingot | Steel scrap | ||||
MW5-70L/1 | 700 | 15 | 3.3 | 2500 | 380/200 | 120/100 |
MW5-80L/1 | 800 | 18 | 3.96 | 3000 | 480/250 | 150/130 |
MW5-90L/1 | 900 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 |
MW5-110L/1 | 1100 | 35 | 7.7 | 6500 | 1000/800 | 450/400 |
MW5-120L/1 | 1200 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 |
MW5-130L/1 | 1300 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 |
MW5-150L/1 | 1500 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 |
MW5-165L/1 | 1650 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 |
MW5-180L/1 | 1800 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 |
MW5-210L/1 | 2100 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 |
MW5-240L/1 | 2400 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 |
B. High frequency type magnetic lift (DC-220V TD-75%)
C. High temperature type magnetic lift (DC-220V TD-60)
electric magnetic lift, lifting magnet crane

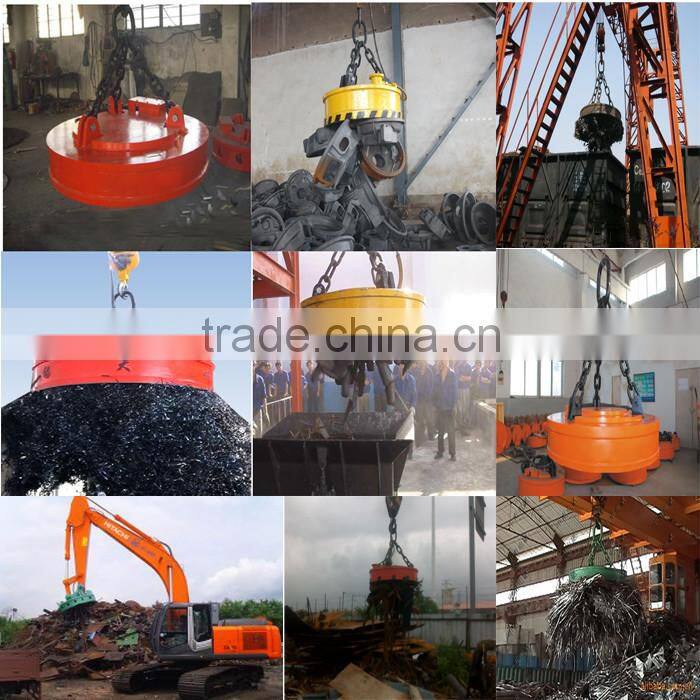

MW5 series magnetic lift uitable for transferring cast ingots, steel balls, metal
and steel scraps. The electromagnet can be fitted on excavator or crane.

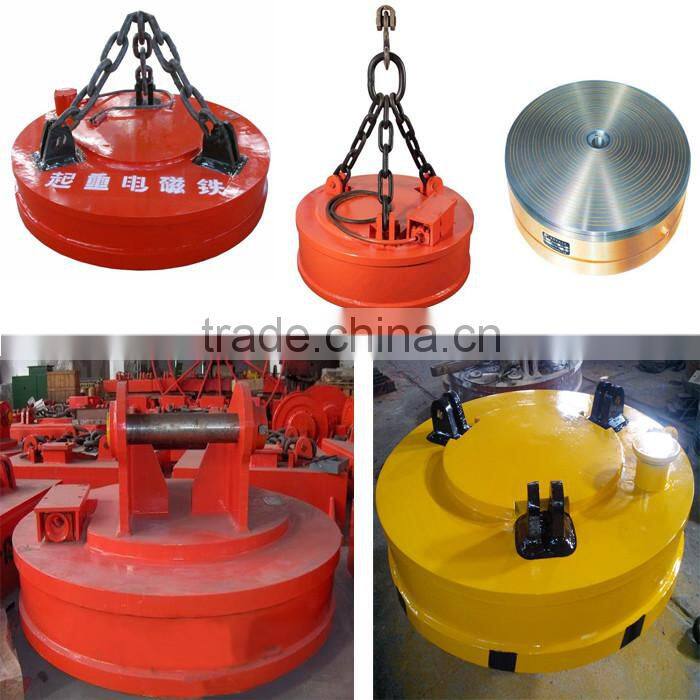

We also have other types of magnetic lift for your choise:
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
According to meet various requirements from customers, we also produce gantry crane, electric
flat car, overhead/bridge crane, jib crane, electric hoist ect. If you have any interests in those
products, please contect me or scan our wedsite www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long
trading history, having rich technical experience. We are located in Xinxiang- -the crane's hometown,
having passed the ISO9001 quality system certification, ISO14001 environmental management
system certification and OHSAS18001 occupational health and safety management system certification
of enterprise, and CE certification. Our trademark is "KAILITE", and our company's operation principle
is "science and technology innovation, people oriented". All of our lifting devices and our innovation are
built on the basis of the safety of users.
Customer Visit:
You can use our cranes at ease, the best after-sales service will be offered from Kailite.
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, We can provide free training to end-users.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height,
power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepar
e for you! The information such as the lift capacity, span, lift height, power source or other special
s you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with
push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin
(space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift, jib crane , grab,
overhead crane,flatcar or other specials as your requirement!
