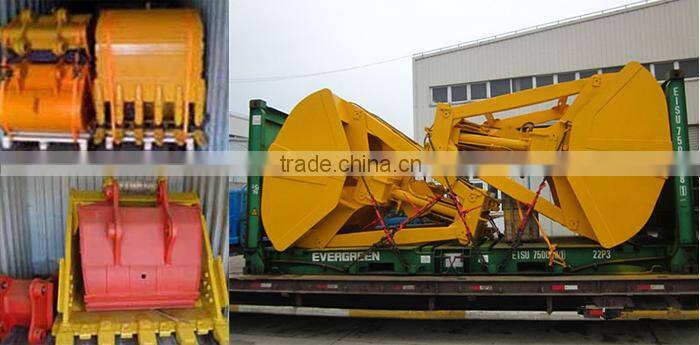

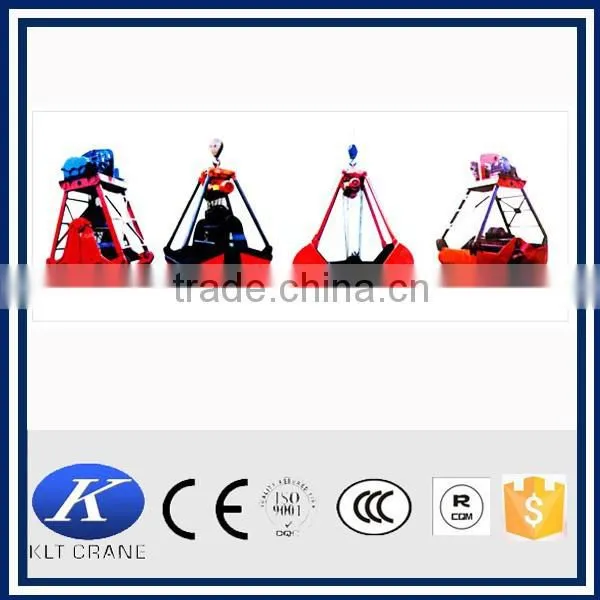

Hot sale grab bucket crane , four wire rope grab
2.Product Features about four rope grab :
This equipment is specially used for balk cargo and granule materiel.
1) Cabin control.
2) Driver’s room is opened or closed types.
3) Wound rotor motor is used on each mechanism, changed speed by resistance.
4) Working ambient temperature: -20 °C~+45°C.
It’s not suitable for lifting blazing & melting metal or toxic-ant as well as explosion-proof or insulating working conditions.
Other configuration user can choose:
1) The grab bucket close aspect has twain:parallel and plumb main girder.
2) Lifting capacity include grab bucket weight.
3) Two kinds of power conduction: Angle iron and safe slippery touch line.
4) According to demand, it can be matched sugar cane grab, trash grab, lumber grab and so on.

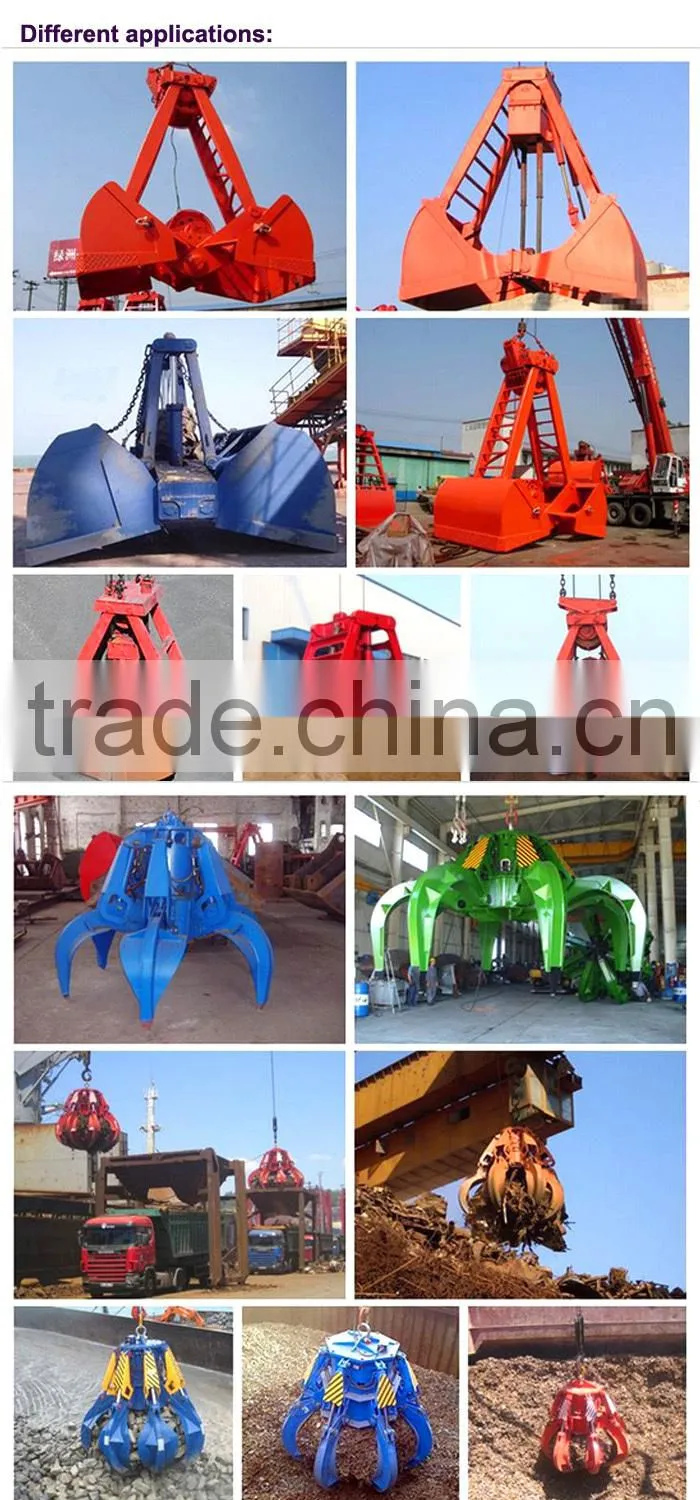

3.Applications about four rope grab :
This type of grab is widely used for balk cargo and granule materiel , it also can used catching with bridge crane, truck crane, gantry crane, deck crane and so on.
Lifting and Travelling Mechanism | |||||||||
Capacity/ Lifting Weight |
T |
5 |
10 |
16 |
20 |
||||
Span |
m |
10.5,13.5,16.5,19.5,22.5,25.5,28.5,31.5 |
|||||||
Lifting Height |
m |
20 |
18 |
22 |
26 |
||||
|
|
|
|
|
|
||||
Operation method |
Cabin control,remote control |
||||||||
Speed |
Lifting |
m/min |
40.1 |
40.7 |
41.8 |
48.6 |
|||
|
|
|
|
|
|
|
|||
|
Cross travel |
|
44.6 |
45.6 |
43.2 |
||||
|
Long travel |
|
93.7 |
86.4 |
76 |
89 |
89 |
87.3 |
87.3 |
Lifting mechanism |
type |
Electric winch trolley |
|||||||
Working duty |
A6 |
||||||||
Steel track recommended |
43kg/m |
QU70 |
|||||||
Power supply |
3-phase,AC,380V,50HZ |
||||||||
Electric Parts | |||||||||
Overload limiter |
Included |
||||||||
Weight overload protection device |
Included |
||||||||
Crane traveling limited switch |
Included |
||||||||
Voltage lower protection function |
Included |
||||||||
Motor |
Heavy duty slide ring type, top quality in China |
||||||||
Gear and wheel |
Manufacture by our own group, so the high quality could be controlled. |
||||||||
Anti-collision system |
Included |
||||||||
Short-circuit device |
Included |
||||||||
Under-voltage protection |
Included |
||||||||
Motor overload protection |
Included |
||||||||
Emergency stop system |
Included |
||||||||
Ground protection |
Included |
||||||||
5.Advantages about four rope grab :
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Electricity-saving
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 15 working days after the deposit received.
Customer visiting
In order to offer you a suitable design and best solution, Please tell us:
- Kinds of product you need?
- Lifting capacity?
- Lifting height( distance from hook center to ground).
- Control mode(pendent line or wireless or cabin)?
- Power supply; Voltage(In China, it’s 380V 50Hz 3Phase)?
Or other special requirements you tell us would be more appreciated.
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
