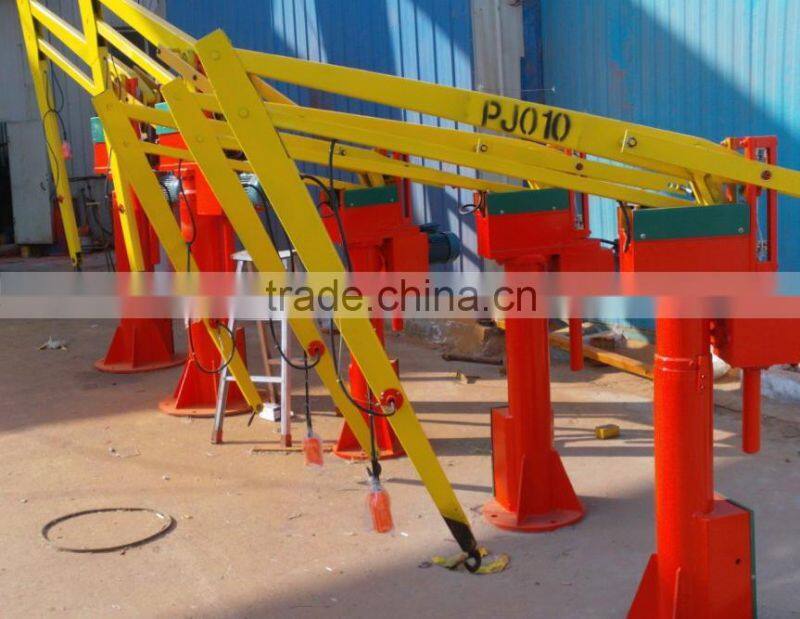

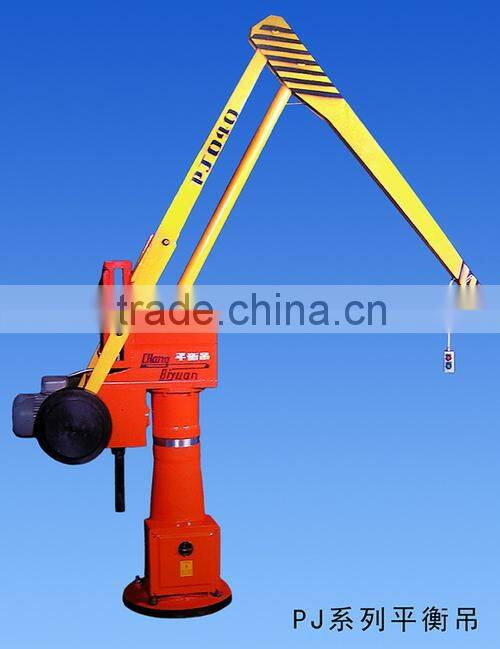

600KG Capacity Balance Jib Crane

600KG Capacity Balance Jib Crane photo-1
600KG Capacity Balance Jib Crane photo-2
600KG Capacity Balance Jib Crane photo-3
600KG Capacity Balance Jib Crane photo-4
600KG Capacity Balance Jib Crane photo-5
US$ 50 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
indoor oudoor factory warehouse
Rated Loading Capacity:
1-2000KG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application indoor oudoor factory warehouse
Rated Loading Capacity 1-2000KG
Rated Lifting Moment different, 1.8M
Max. Lifting Load 600KG
Max. Lifting Height 2500mm
Span 3.5M
Place of Origin Henan, China
Brand Name KLT CRANE, KLT CRANE
Model Number PJ
Certification CE ISO9001
Warranty 12 months
After-sales Service Provided Overseas third-party support available

600KG capacity balance jib crane

Product Description

 600KG capacity balance jib crane

BRIEF DECRIPTION:

600kg jib crane is new material handling equipment. Accordingly to the parallelogram principle, equipped with overload and limit protector, this crane can work freely but precisely and reliably. We have designed different types to fulfill your different demands.

 600KG capacity balance jib crane

DETAILS AND ADVANTAGES:

1. Design: Compact dimensions, low weight, easy to operate and easy to maintain.



2. Motors: Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.



3. Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.



4. Limit Switches : To prevent over hoisting & over lowering of hook



5. Push Button Stations : Extra light, handy, easy to operate, aluminum, fabricated from extruded section.



6. Soft Starts : Electric / Electronic soft start modules electrically coupled to the long travel drives to achieve jerk free, cushioned & smooth starts



7. Maintenance Platform With Hand Railing : Easy, simple and safe maintenance of the crane extended partially or totally along the girder

600KG capacity balance jib crane

TECHNICAL PARAMETER:

Item PJ005 PJ010 PJ020 PJ030 PJ040 PJ050 PJ060
Max. loading capacity(kg) 50 100 200 300 400 500 600
Max. lifting height(mm) 2000 2000 2000 2000 2000 2500 2500
Min. lifting height(mm) 500 500 500 500 500 500 500
Max. radius of gyration(mm) 2500 2500 2500 2500 2500 3200 3200
Min. radius of gyration(mm) 580 580 770 770 770 1000 1000
Rotation angle(.) 345 345 345 345 345 345 345
Lifting speed(m/min) 6.14 6.14 5.44 5.52 5.56 5.08 5.08







600KG capacity balance jib crane600KG capacity balance jib crane



FEATUTRE:

  •  Reasonable structure and favorable performance.
  •  Soft starting and stopping.
  •  Safe and reliable traveling, long life.
  •  Easy installation and convenient maintenance.
  •  Excellent exchangeability for parts and components.
  •  Negotiable price.



600KG capacity balance jib crane





Packaging

600KG capacity balance jib crane

relative products

You may have interests in these products

600KG capacity balance jib crane600KG capacity balance jib crane600KG capacity balance jib crane

According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our wedsite www.kltqz.en.china.cn for more details.



Company information

600KG capacity balance jib crane

certificates:

600KG capacity balance jib crane

customer visits:

600KG capacity balance jib crane





FAQ

1. Is your products customized?

Yes, because the working conditions are different, all our products are customized depending on

detail requirement! So if you give us more information about the lift capacity, span, lift height,

power

 source and other specials, we will give you a very quick quote!



2. What’s the information should I provide when inquiry?

Thanks for your question. The more information you provide, the accurate solution we can

prepare for you! The information such as the lift capacity, span, lift height, power source or other

specials you give us will be more appreciated.



3. How many operating methods for my selection?

Thanks for your question. The standard operating methods we provide is pendent controller with

push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin

 (space capsule seat) control with joystick. You can choose any of them, just tell us.



4. Do your side can provide other lift tools?

Thanks for your question. Yes, we can provide any kinds of lift tools such as lift, jib crane , grab,

overhead crane,flatcar or other specials as your requirement!





Our Services



You can use our cranes at ease, the best after-sales service will be offered from Kailite.

1, One year warranty for whole machines.

2, Providing free quick-wear part.

3, Low charge for continue maintenance when warranty is expired.

4, Exclusive engineer support at any time.

5, Payment terms is flexible.

6. Design the crane according to your technical request.



600KG capacity balance jib crane
