Specifications
PJ type 600kg balance crane:1.High quality
2.Competitive price
3.Advanced safety features

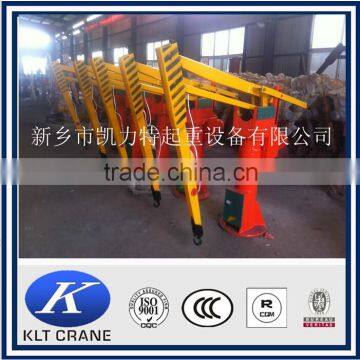

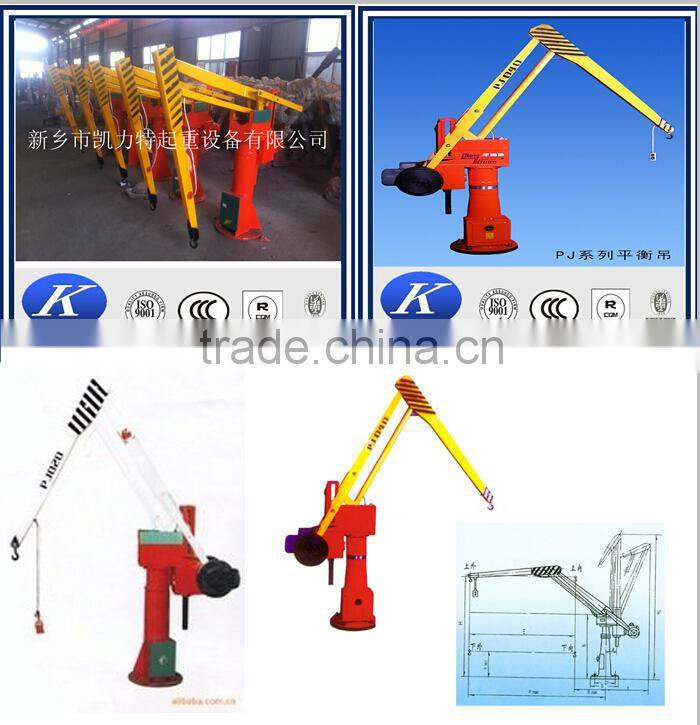

High quality and low price new modle PJ type PJ type 600kg balance crane
Brief introduction:
PJ type balance crane is an ideal small and mediumsized mechanical lifting equipment. It runs
four bar linkage mechanism principle, using manual and motorized simple cooperate to form a
composite movement to carry load, the load at any time according to the requirement of
stable to stay in operation interval to any position.
Applications:
It is widely used in warehouse, machine tools, parts and components; the assembly and repair
process of hoisting transport; production line of articulation, converting station; foundry core, closing the box; heat treatment furnace, such as furnace workshop.
Product parameter:
| model | PJ005 | PJ010 | PJ020 | PJ030 | PJ040 | PJ050 | PJ060 | |
| max. lifting capacity | kg | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| max. lifting height | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| min. lifting height | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| max. radius of gyration | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 |
| min. radius of gyration | mm | 580 | 580 | 770 | 770 | 770 | 1000 | 1000 |
| rotation angle | degree | 345 | 345 | 345 | 345 | 345 | 345 | 345 |
| lifting speed | m/min | 6.14 | 6.14 | 5.44 | 5.52 | 5.56 | 5.08 | 5.08 |

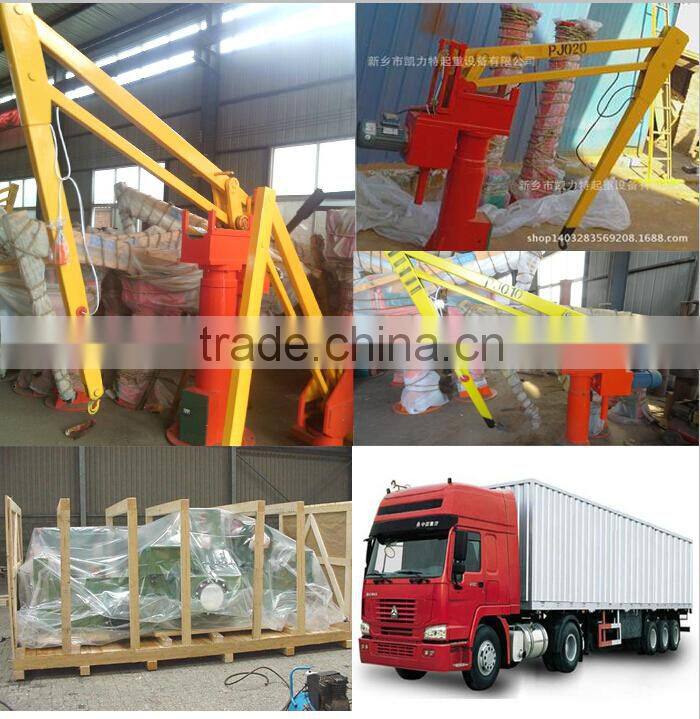

Packaging detail:
High quality PJ type 600kg balance crane are packaged by plastic woven cloth or according to
your demand.
Delivery detail:
If the size of whole crane are suitable for container ship, usually by container;
If the size is too big, usually by bulk ship or by container after truncation;
Transport ways are based on reducing cost for you and keep the crane performance!
Within 10 days after received your deposit
Service We Can Provide:
2. Design the crane according to your technical request.
3. Delivery on time
4. Our engineer can arrive to the installation site to help fixing the crane for you.
5. Diversity products.
6. Warranty: 12 months.
Cetifications:
1. What's the lifting capacity of the balance crane:
Answer: The largest capacity for the crane is from 50-600kg, it depends on your requirements.
2. How does it work?
Answer: Just put the cargo on the hook and press the control button. Then the goods could
be lifting
3. How could it rotary?
Answer: There is a slewing ring on the fixed column,you could pulling the balance arms to
get the suitable poistion.
NOTICE
As kinds of cranes are customized, in order to offer you most suitable design and best solution, please tell us the following information when you send inquiry.
- Lifting capacity.
- Lifting height( hook center to ground).
- Beam length ?
- Working radius ?
- Working condition. Which material to lift? Temperature? Industrial working voltage ?
- Would it be better if you have drawings?
If you have any interest in our products or any questions, please do not hesitate to contact me.I will help you to know more about our products' detail.
