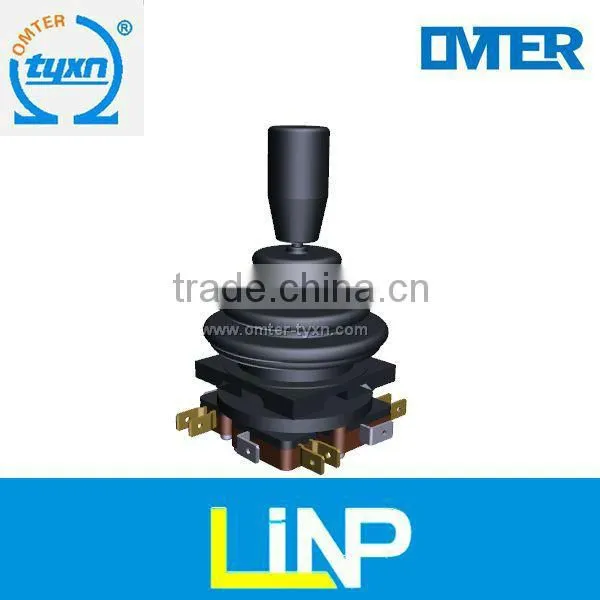

Home > Electrical & Electronics > Passive Components > Capacitor > CV6 Best Joystick Joystick Switch Controller
US$ 10 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
CV6
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
360 Degree Square Operation (standard Type) JoystickUS$ 51 - 55MOQ: 1 Piece -
Handle With Green Button Switch JoystickUS$ 51 - 55MOQ: 1 Piece
-
2 Axes Spring Return Switch Joystick CV4-YQ-04R2GUS$ 10 - 30MOQ: 10 Perches
-
Industrial Remote Control Joystick CV6-YQ-04R2GUS$ 1 - 60MOQ: 1 Piece
-
Handle With Black Button Switch JoystickUS$ 51 - 55MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
CV6
Specifications
joystick Resistance 5K OHM Resistance Tolerance about 20%ELECTRICAL | |
PARAMENTS |
|
Resistance | 5KΩ |
Resistance Tolerance | ± 20% |
Independent Linearity Tolerance | ± 1 % |
Resolution |
Infinity |
Temperature Coefficient | ± 400 ppm/°C |
Output smooth | MAX 0.5 % |
XY X and Y Axis Rotational Angle | ±250-300 |
Z Z Axis Rotational Angle | ±450 |
OM300 Z OM400 Z OM300 Z Axis potentiometer, OM400 Z Axis potentiometer and the Wire of Switch | AWG28 100mm AWG28 Teflon Insulation silver-plating colored wire. Standard line 100mm or according to the customer request. |
Insulation Resistance | 50 MΩ@ 500 VDC,60 sec. |
MECHANICAL | |
Operating Torque | XY440gf, Z880gf X and Y Axis 440gf, Z Axis 880gf |
Reposition Error Rate | ±1% |
Operating temperature | -10°C 80°C |
Rotational life expectancy | 500,000times |
....
