Specifications
Desc:2 AxesSpring return Switch Joystick(without push button on the top of the handle)

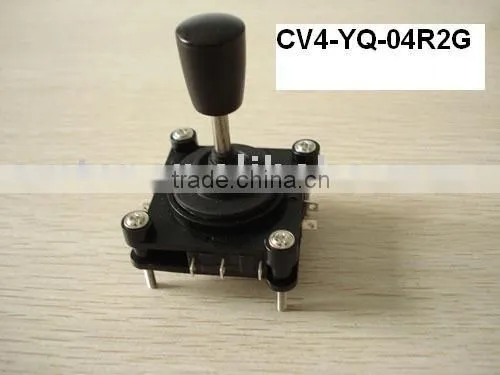

Model: CV4-YQ-04R2G
Mechanical Performances |
CV4-YQ-05R2G-BM (With push button knob) |
CV4-YQ-04R2G(standard) |
Quantity of switch |
5 (including 1 push button switch on the top of handle) |
4 (without push button on top of handle) |
Quantity of potentiometer |
0 (No potentiometer) |
0 (No potentiometer) |
Output |
Switch |
|
X and Y Axis control range: |
Approx. ±12° |
|
Operating force: |
Approx.1N-1.2N(100gf-120gf) |
|
Operating temperature: |
-20 degree celsiur~+65 degree celsiur |
|
Vibration: |
10~55Hz98m/S2(10G) |
|
Shock: |
294m/S2(30G) |
|
Degrees of Projection: |
IP65(above mounting panel) |
|
Life expectancy: |
Approx. 200,000 operations |
|
Mass: |
Approx. 40g |
|
Electrical Performances |
CV6-YQ-05R2G-BM |
CV6-YQ-04R2G |
Rating for push button switch: |
50VDC/0.1A |
|
Rating for micro-switched: |
16(6)A/250VAC |
|
Rating for LED: |
2VDC,20mA |
|
....
