10K Trimmer Potentiometer SC-063(2_5x5)

Name: 10K Trimmer Potentiometer SC-063(2_5x5)
Brand: OMTER
SKU: 123743503
Availability: InStock

US$ 1 - 15 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OMTER

Model Number:

SC-063(2_5x5)

Yueqing Omter Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OMTER

Model Number SC-063(2_5x5)

Type Trimming Potentiometer

Technology Carbon Film

Resistance 100Ω- 1MΩ

Resistance Tolerance ±30% standard

Rated Power 0.03W

Max. Operating Voltage Less than 100V

Operating Temperature -25°C ~+80°C

Specifications

1.High quality and reasonable price
2.model NO : SC-063(2_5x5)
3.miniature POT. trimmer potentiometer
4.industrial POT.

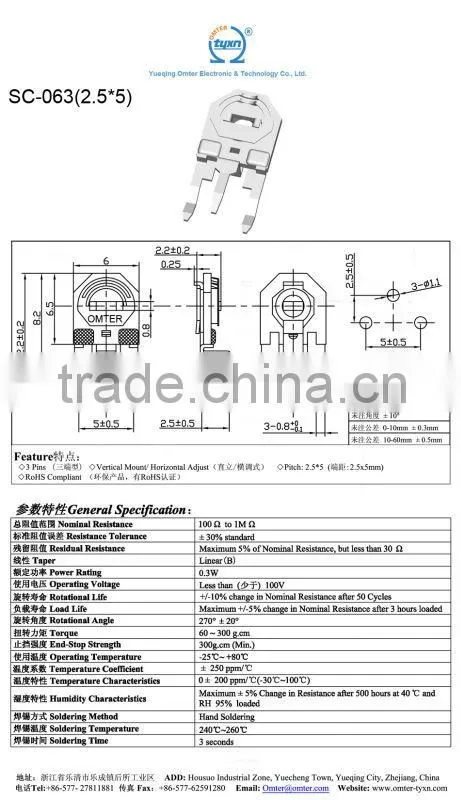

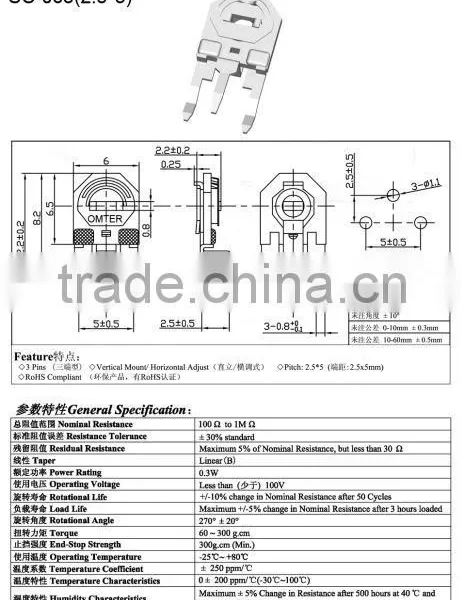

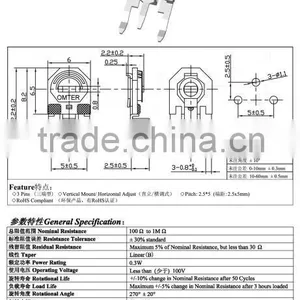

General Specification

MAIN SPECIFICATION
Total Resistance	100Ω- 1MΩ
Total Resistance tolerance	±30% standard
Residual Resistance	Maximum 5% of nominal resistance ,but less than 30Ω
Taper	Linear (B)
operation voltage	Less than 100V
Power Rate	0.03W
Operation temperature	-25°C ~+80°C
Temperature coefficient	± 250ppm/°C
Temperature characteristics	0 ± 200ppm/°C(-30°C ~+100°C)
Humidity characteristics	Maximum ± 5% change in resistance after 500 hours at 40°C RH95% loaded
MECHANICAL
Total Rotation Angle	270±20(degree)
Rotation Torque	60~300 g.cm
Shaft Stop Strength	300gf.cm Min
push-pull strength	1.0kgf Min
Soldering method	Hand soldering
Soldering temperature	240 °C~260°C
Soldering time	3 seconds
Durable performance
Rotational life	+/-10% change in nominal resistance after 50 cycles
Load life	Maximum +/-5% change in nominal resistance after 3 hours loaded
