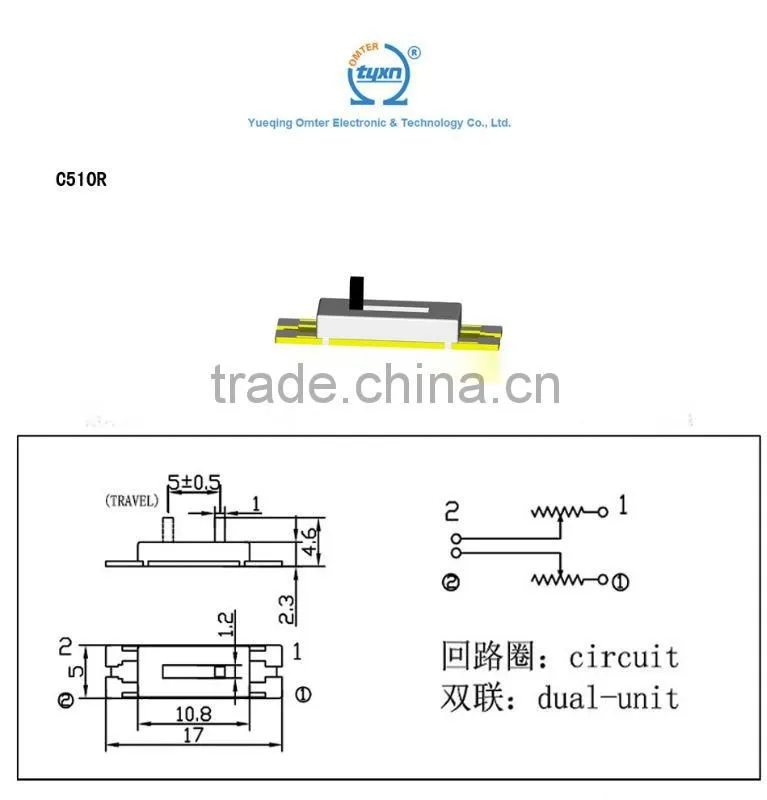

10k Linear Slide Potentiometer C0510R
US$ 1 - 15
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
C0510R
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100mm Slide Potentiometer C0510QUS$ 1 - 15MOQ: 1000 Pieces -
10k Trimming POT PT155R(10x15)US$ 1 - 15MOQ: 1000 Pieces
-
10k Linear Trimmer Potentiometer SR-083BUS$ 1 - 15MOQ: 1000 Pieces
-
12mm Carbon Potentiometers SR-083AUS$ 1 - 15MOQ: 1000 Pieces
-
Precision Trimmer POT SR-082CUS$ 1 - 15MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
C0510R
Type
Slide Potentiometer
Technology
Carbon Film
Resistance
500Ω- 1MΩ
Resistance Tolerance
20%
Rated Power
B:dual 0.005W,export B: dual 0.001W
Max. Operating Voltage
B:50V,export B: 25V
Operating Temperature
normal
Specifications
1.High quality and reasonable price2.model NO : C0510R
3.slide potentiometer
4.industrial POT.
1.High quality and reasonable price
2.model NO : C0510R
3.slide potentiometer
4.industrial POT.
General Specification
MAIN SPECIFICATION | |
Total Resistance |
500Ω- 1MΩ |
Resistance tolerance |
20% |
Residual Resistance |
Term 1-2:less than 100Ω |
Resistance Taper |
B |
operation voltage |
B:50V,export B: 25V |
Power Rate |
B:dual 0.005W,export B: dual 0.001W |
Voltage proof |
1minute at 100V AC |
Insulation resistance |
MIX 50mΩ at DC100V |
MECHANICAL | |
Operation force |
20 gf.cm~40gf.cm |
Lever Stop Strength |
2.5Kgf.cm (2mm point from mounting surface) |
Lever wobble |
2(2*L)/25mm MAX(L:lever length both sides) |
Durable performance | |
sliding life |
100000cycle |
Slider noise |
Less than 100mv |
...
