Specifications

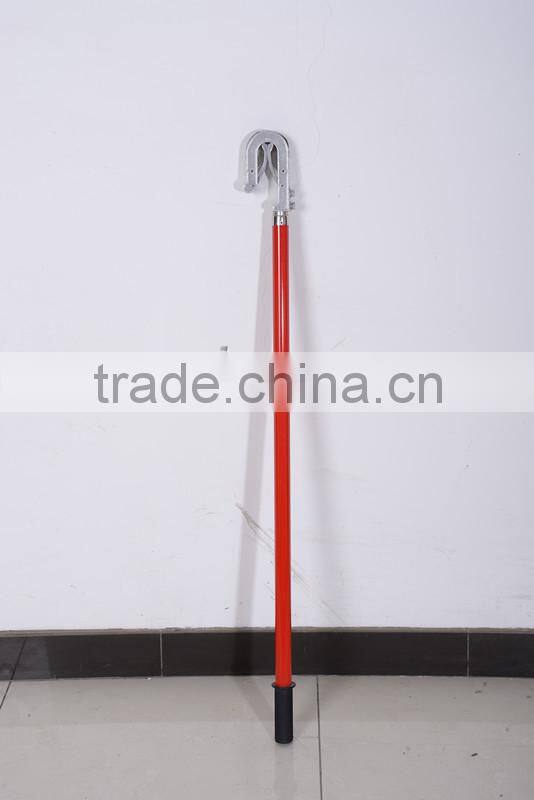

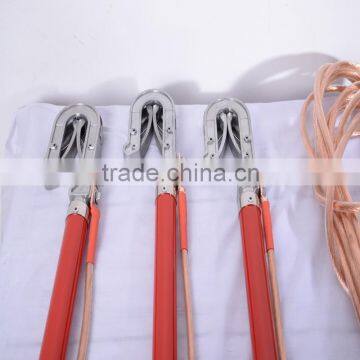

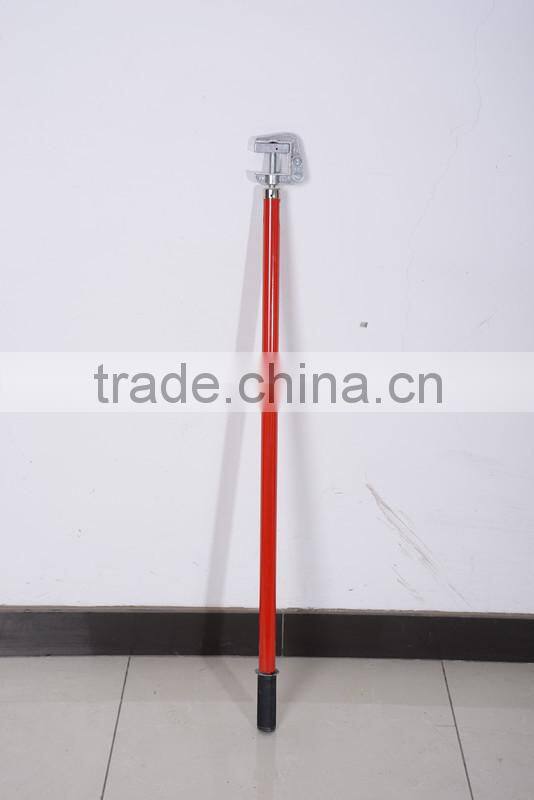

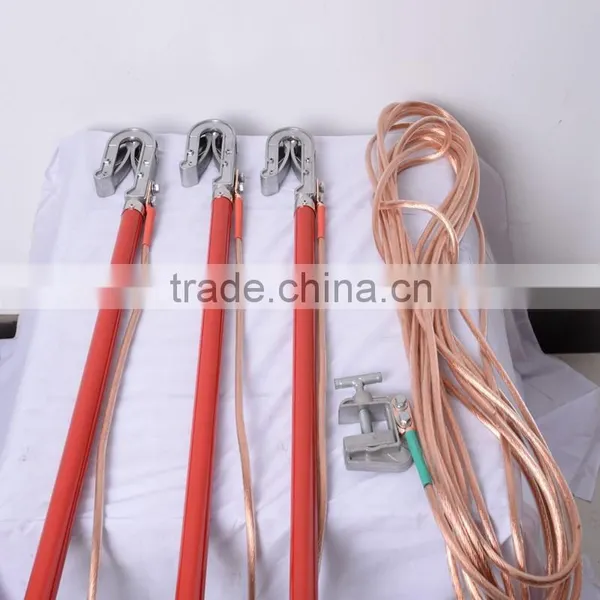

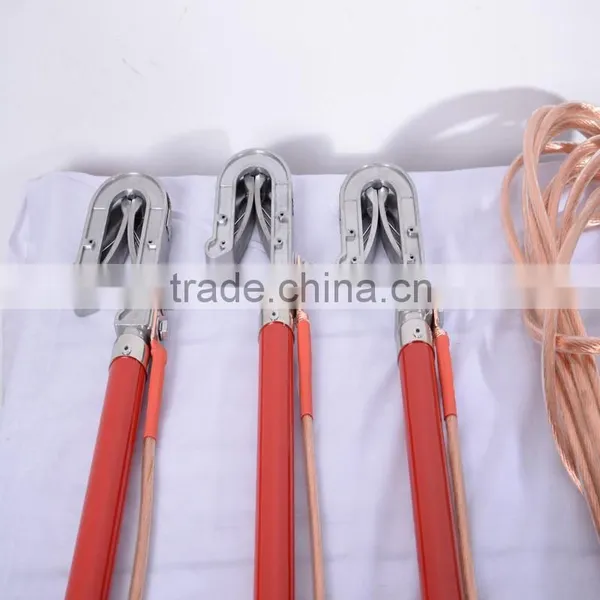

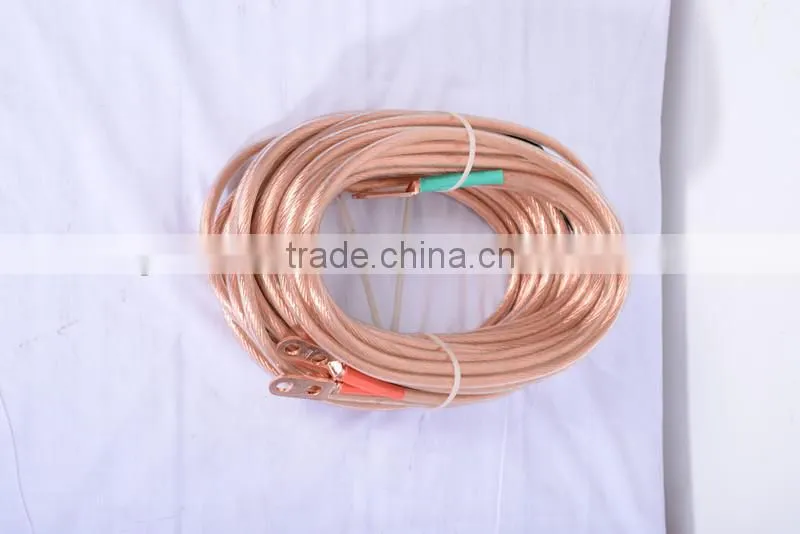

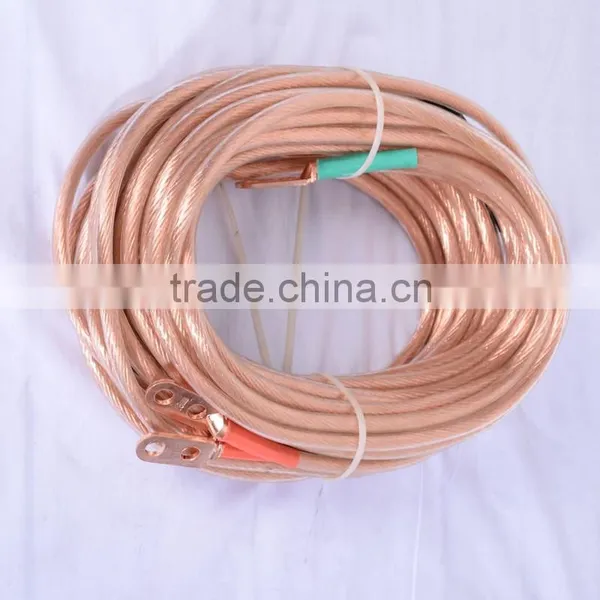

Grounding Equipment Sets1. clamp + stick + wire
2. can made as per your requies.
3. fiberglass body
4. copper clamp
Grounding Equipment & Sets
1. Product specifications: 16mm2, 25mm2, 35mm2, 50mm2, 70mm2
Also can produce as your request.
2. Product characters:

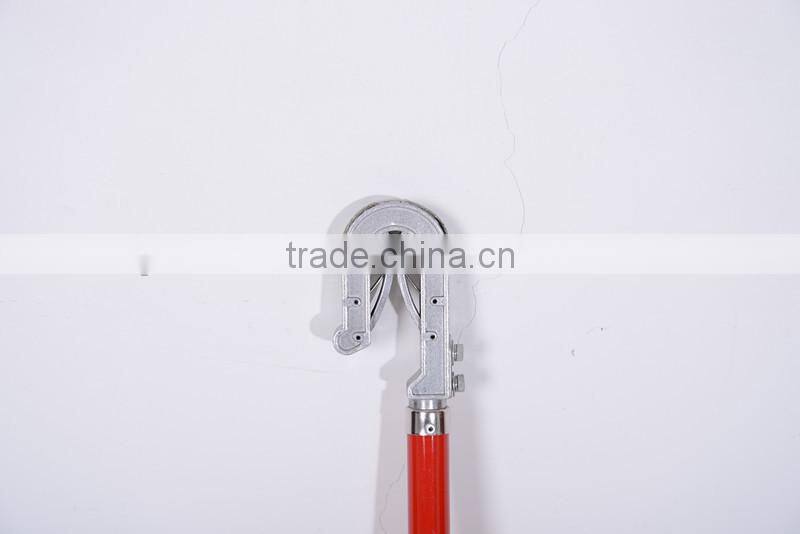

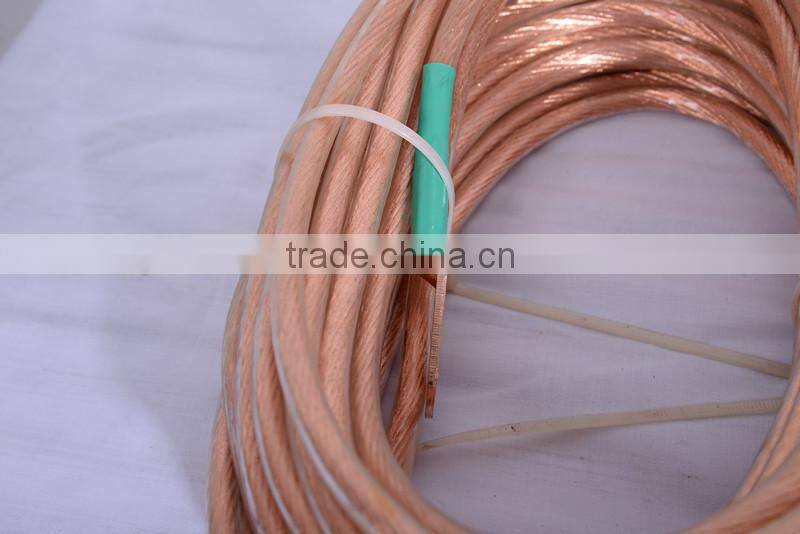

the hook adopts light aluminium alloy compression casting, pole use the light epoxy manufacture, hight strength, excellent ability of electric conduction. Baling wire uses electrolysis copper wire. The temperature scope for protective cover :+40°C.
3. Applications:
1>. Distribution lines and systems
2>.Transmission lines and systems
3>.Substation bus
4>.Underground systems
Can be customerized

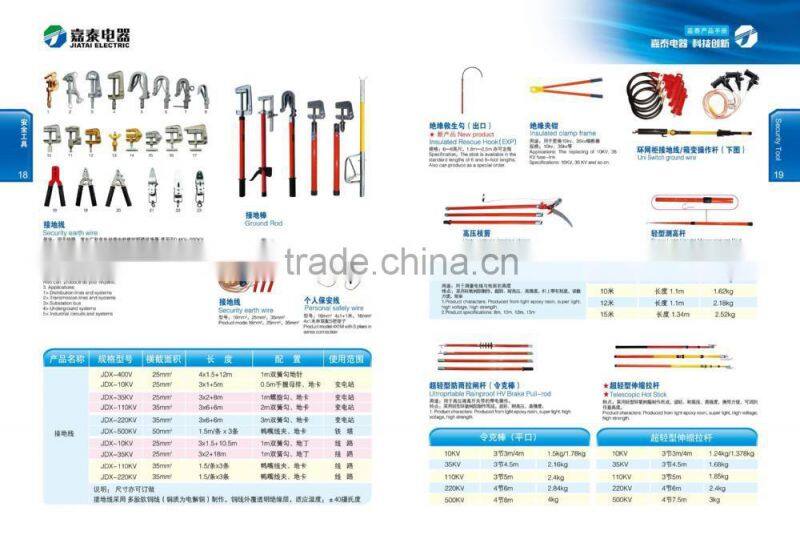

Product | Type | Cross-Section Area | Length
| configure
| Usage area |
Earth Wire | JDX-400V | 25mm2 | 4x1.5+12m | 1m double reed needle hook |
|
JDX-10KV | 25mm2 | 3x1+5m | 0.5m hand busbar , ground clip | substation | |
JDX-35KV | 25mm2 | 3x2+8m | 1m spiral hook ,ground clip | substation | |
JDX-110KV | 35mm2 | 3x6+6m | 2m double reed hook, ground clip | substation | |
JDX-220KV | 35mm2 | 3x6+6m | 3m double reed hook, ground clip | substation | |
JDX-500KV | 50mm2 | 15m/item x3item | Duckbill clamp, ground clip | Iron tower | |
JDX-10KV | 25mm2 | 3x1.5+10.5m | 1m double reed hook ,ground nail | Wire route | |
JDX-35KV | 25mm2 | 3x2+18m | 1m double reed hook ,ground nail | Wire route | |
JDX-110KV | 35mm2 | 15x3 | Duckbill clamp, ground clip | Wire route | |
JDX-220KV | 35mm2 | 15x3 | Duckbill clamp, ground clip | Wire route | |
Note: length can made by your required Barling wire uses electrolysis copper wire .the temperature scope for protective cover :±40℃ | |||||
Carton
Sample is available amd OEM is available.
1.Should the customer pay the delivery fee.how much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed express,you will give me your express account or you will pay according to express.
If you do not request,I will chosse a cheap but fast one in China.
2.How about the after sale service:
1).We will always keep the quality the same with the same,and if there is something with quality,we will make compensation for our customers.
2)We will suggest our packing and take charge in our pacing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will slove the problems in the selling for our customers.
