Help Center3 Axis Potentiometer Joystick
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
OM301
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2-axis Potentiometer Joystick(OM200 Series)US$ 18 - 30MOQ: 1 Piece -
Joystick ControllerUS$ 19 - 60MOQ: 1 Piece
-
OM3000-1A-H51-MS11-BG Industrial Joystick Controller Quality ChoiceUS$ 650 - 700MOQ: 1 Piece
-
GRSA-Q Series Double Joystick Industrial Remote ControlUS$ 500 - 500MOQ: 1 Piece
-
GRSA-A2 Joystick for Industrial Remote Control EquipmentUS$ 500 - 500MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
OM301

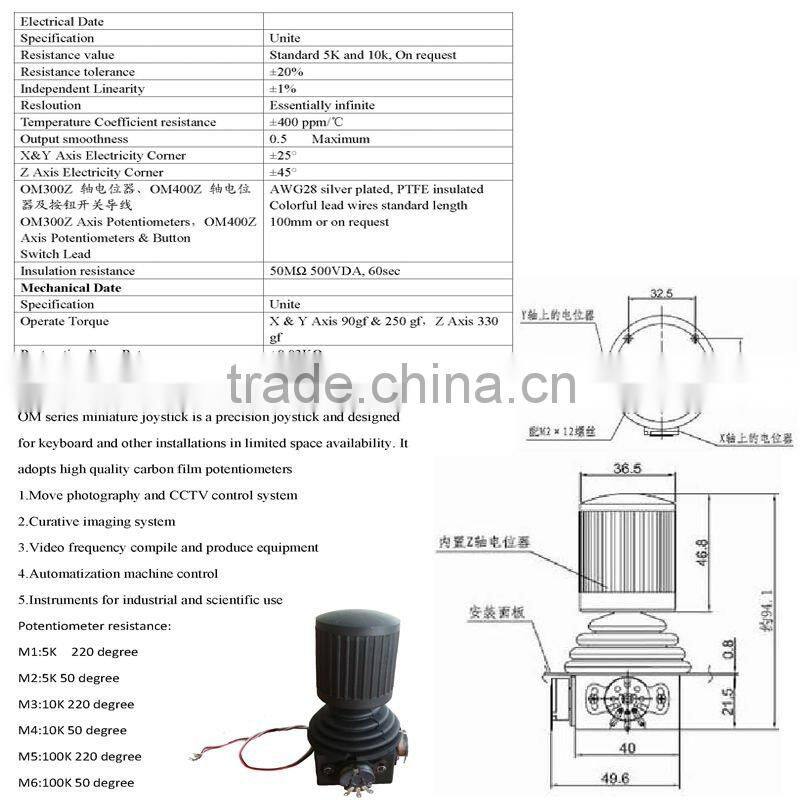

Specifications
1.3D joystick2.potentiometer joystick
3.standard resistance is 5k or 10k. and could make as customer need.
joystick
Model: OM301
Ω or 10 KΩ on request
Resistance Tolerance: ±20%
Independent Linearity: ±1 %
Resolution: Essentially infinite
Temperature Coefficient Resistance: ±400 ppm/
Output Smoothness: 0.5 % maximum
X And Y Axis Electricity Corner: ±25°P-30°
Insulation Resistance: 50 MΩ at 500 VDC,60 sec.
Main pivot ball: precision ground stainless steel
Stick shaft: φ5mm
Operate Torque: X and Y axis 440gf,Z axis 880gf
Restoration Error Rate: ±1%
Prolepsis Mechanical Lifecycle: 500,000 cycle
Operating Temperature Range: -10 - 80
....
