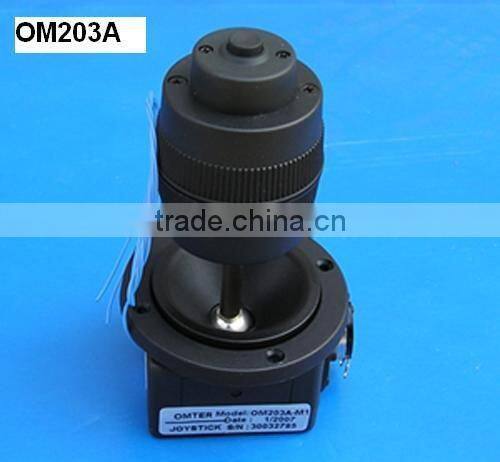

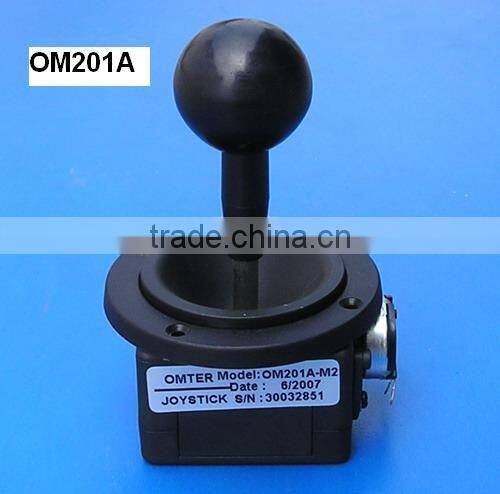

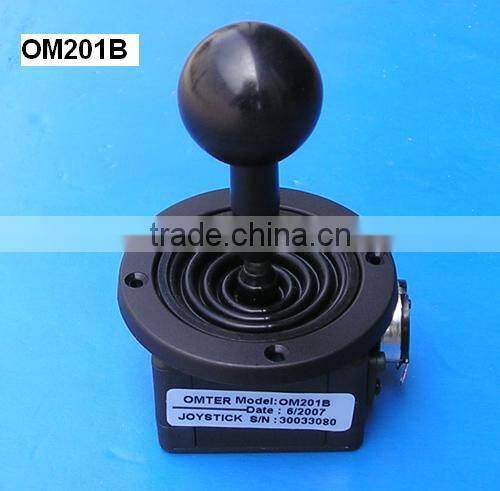

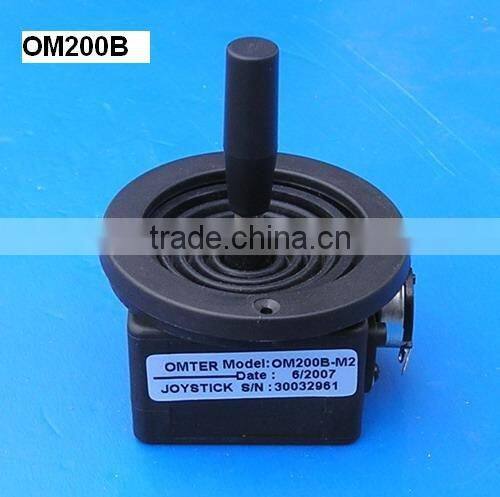

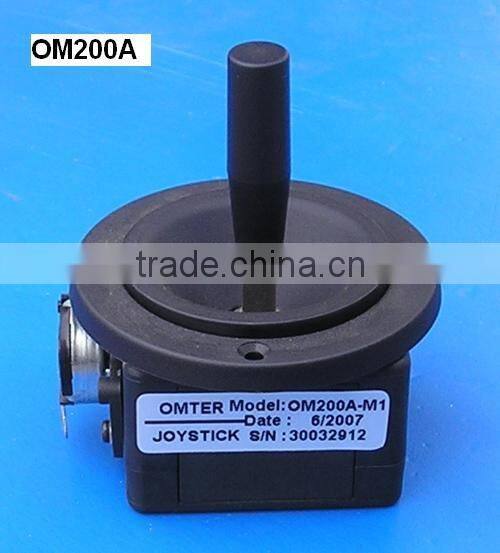

2-axis Potentiometer Joystick(OM200 Series)

Name: 2-axis Potentiometer Joystick(OM200 Series)
Brand: Omter
SKU: 123740303
Availability: InStock

US$ 18 - 30 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Omter

Model Number:

OM200A,OM200B,OM201A,OM201B,OM203

Yueqing Omter Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Omter

Model Number OM200A,OM200B,OM201A,OM201B,OM203

Specifications

2-Axis Potentiometer Joystick
Resistance:5k Ohm,10k Ohm
Lever return: Auto Spring return

Description	Potentiometer Joystick with 2-Axis
Main performance	Model
Main performance	OM200A	OM200B	OM201A	OM201B	OM203
Resistance	5KΩ,10KΩ	5KΩ,10KΩ	5KΩ,10KΩ	5KΩ,10KΩ	5KΩ,10KΩ
Resistance Tolerance	±5%	±5%	±5%	±5%	±5%
Independent Linearity Tolerance	±1%	±1%	±1%	±1%	±1%
Resolution	Infinity	Infinity	Infinity	Infinity	Infinity
Temperature Coefficient	±400 ppm/degree
Output smooth	MAX 0.5%
X and Y Axis Rotational Angle	±25°-30°
Lever return	With Auto spring return
Insulation Resistance	50 MΩ@500 VDC, 60 sec.
Operating Torque	X and Y Axis 440gf
Reposition Error Rate	±1%	±1%	±1%	±1%	±1%
Life expectancy	500,000times
Operating temperature	-10degree-80degree
Instruction for choosing model: M1: The total resistance value is 5K, but the effect adjustable resistance range is from 1.8K to 2.5K, then from 2.5k to 3.2K. M2: The total resistance value is 5K, but the adjustable range is from 0K to 2.5K, then from 2.5K to 5K. M3: The total resistance value is 10K, But the adjustable range is from 3.5K to 5k, then from 5K to 6.5K. M4: The total resistance value is 10K, But the adjustable range is from 0K to 5K, then from 5K to 10K.
