OM3000-1A-H51-MS11-BG Industrial Joystick Controller Quality Choice

Yueqing Omter Electronic & Technology Co., Ltd.
OM3000-1A-H51-MS11-BG Industrial Joystick Controller Quality Choice thumbnail-1
OM3000-1A-H51-MS11-BG Industrial Joystick Controller Quality Choice photo-1
US$ 650 - 700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OMTER
Model Number:
OM3000-1A-H51-MS11-BG
Compatible Platform:
PSP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OMTER
Model Number OM3000-1A-H51-MS11-BG
Compatible Platform PSP
Type Joystick
Place of Origin Zhejiang, China

Specifications

1. Brand: OMTER
2.OM3000-1A-H51-MS11-BG industrial joystick controller
3.optional resistance value
4.Competivie price

OM3000-1A-H51-MS11-BG  industrial joystick controller         OM3000-1A-H51-MS11-BG industrial joystick controller

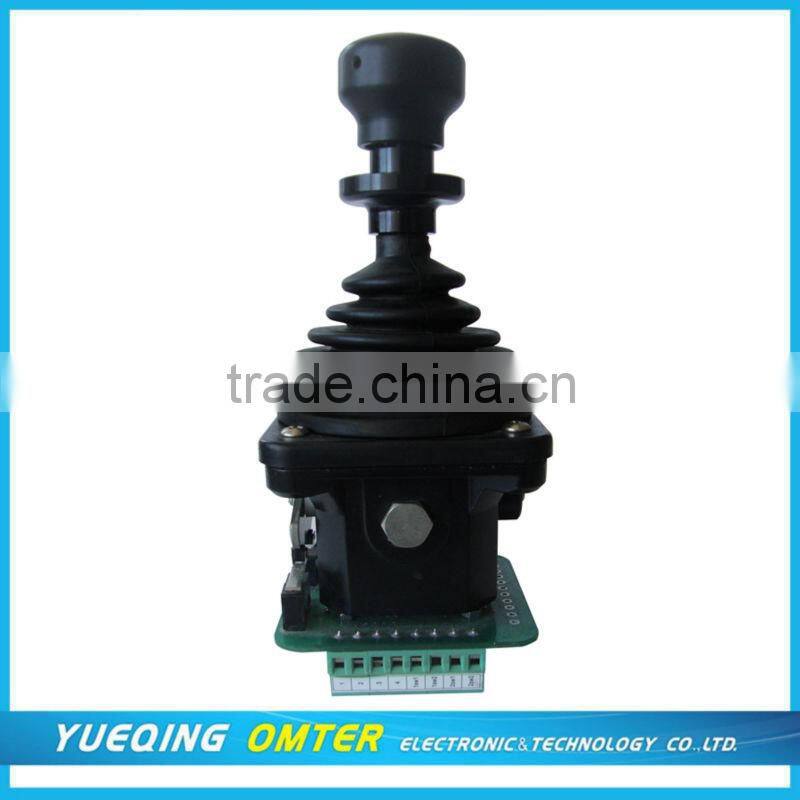

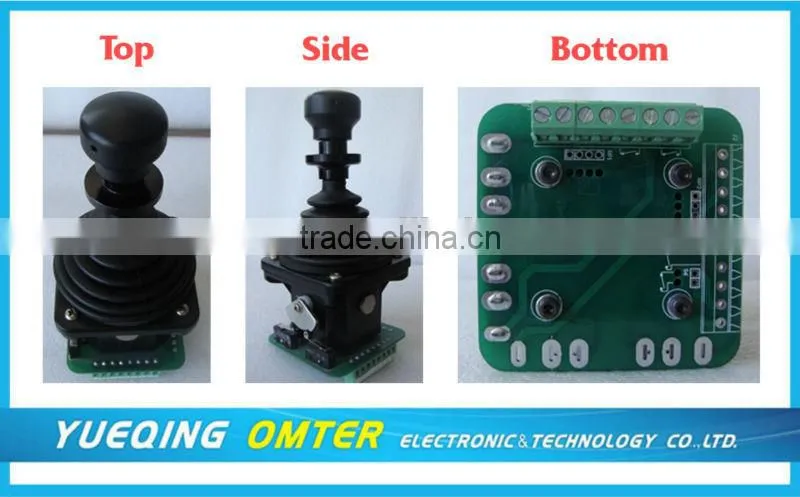

Detailed picture:



OM3000-1A-H51-MS11-BG industrial joystick controller

Product characteristic:

Conforms to the modern man-machine engineering principle, specially for project mechanical profession design use.
The disposition has the non-contact Hall sensor and the long life potentiometer two kind of angular displacements detect method could choose.
Has many kinds of different type handle top port to supply choice, simultaneously, button quantity and the position also have the different disposition form.
The joystick’s output signal could be potentiometer output, the Hall voltage output, the CAN bus output, as well as a variety of standard analog signals

Application scope:

This series products mainly apply in hoist crane, car loader, forklift, excavator, work high above the ground platform, tractor, harvester and so on.



Technical parameter:

Mechanical parameter:
Starting operation strength:15N(MAX)
Biggest operation strength (limiting position):50N(MAX)
Limit permission operation strength:15N
Operation angle:±25°
Service life:

Is bigger than 5,000,000 times (potentiometer type),

is bigger than 10,000,000
times (Hall type)

The weight:460g (without top port)
Electrical parameter:
Potentiometer type:
Total resistance value:5KΩ or 10KΩ
Electric angle:±23°
tHE voltage scope (relative power supply voltage):0~100%; 10~90%; 25~75%
The median position voltage (relative power supply voltage):48%~52%
The median position dead zone angle:±2.5°
The potentiometer loads max voltage:DC32V

Potentiometer allows the maximum power consumption (25

°C):

0.25W
Direction switch: Load capacity: 10mA@30Vdc (resistive load)
Outset angle: ±3°~±5°
Micro switch: Load capacity:3A@250Vac, 4A@30Vdc (resistive load)
Mechanical life:30,000,000 above
Electrical life:more than 200,000 times
Insulation resistances:more than 100MΩ (500Vdc insulation resistance meter)
Hall type:
Power supply voltage:5±0.5Vdc
Power source consumption electric current:6.5mA (single axis, 1 Hall sensor)
13mA (single axis, 2 Hall sensors, or, double axis, 1 Hall sensor)
26mA (double axis, 2 Hall sensors)
Limit permission overvoltage:30Vdc (continuous use)
The reverse limit permits the voltage:15Vdc
Output voltage scope (optional):H51= Hall type, DC5V power source, 0.5V~2.5V~4.5V voltage output
H52= Hall type, DC5V power source, 0V~2.5V~5V voltage output
H53= Hall type, DC5V power source, 1.25V~2.5V~3.75V voltage output
H54= Hall type, DC5V power source, 1.0V~2.5V~4.0V voltage output
Minimum load impedance: 5KΩ
Insulation resistance: Is bigger than 50MΩ (when 500Vdc)
With conversion circuit:
With power supply voltage scope:18~36Vdc(DC24V) 9~18Vdc(DC12V)
Power source consumption electric current:<20mA
Maximum output electric current:10mA
Note: The voltage type output already isolates completely the output port and the power source
Standard voltage output:
Output voltage scope (optional):

U21=DC24V power source, - 10V~0V~+10V voltage output

U22=DC24V power source, +10V~0V~+10V voltage output

U23=DC24V power source, - 5V~0V~+5V voltage output

U24=DC24V power source, +5V~0V~+5V voltage output

Standard electric current output:
Power supply voltage:9~36Vdc
Output current scope (optional):

I21= two-wire system 4mA~12mA~20mA electric current output

I22= two-wire system 20mA~4mA~20mA electric current output


button switch:
Load capacity:5A@28Vdc
Operate strength:3N
Action form:Instantaneous action
Mechanical life:More than 1,000,000 times
Environment parameter:
Operating temperature:- 40°C~ +80°C,-25°C~ +80°C (when has micro switch)
Storage temperature:- 40°C~ +85°C,-25°C~ +80°C (when has micro switch)
Protects the rank:IP65
Vibration:Extent ±3g, frequency 10Hz to 200Hz
Impact:20g,6mS, semisinusoidal
EMC anti-interference rank:100v/m,30MHz to 1GHz,80% sine-wave modulation, satisfies
EN50082-2 (1995) standard
EMC launch rank:150KHZ to 30MHZ, the B rank, satisfies EN50081-2 (1993) standard
ESD anti-interference rank:

4 rank 8KV contact discharge,

15KV air discharge,

satisfies the IEC61000-4-2 standard

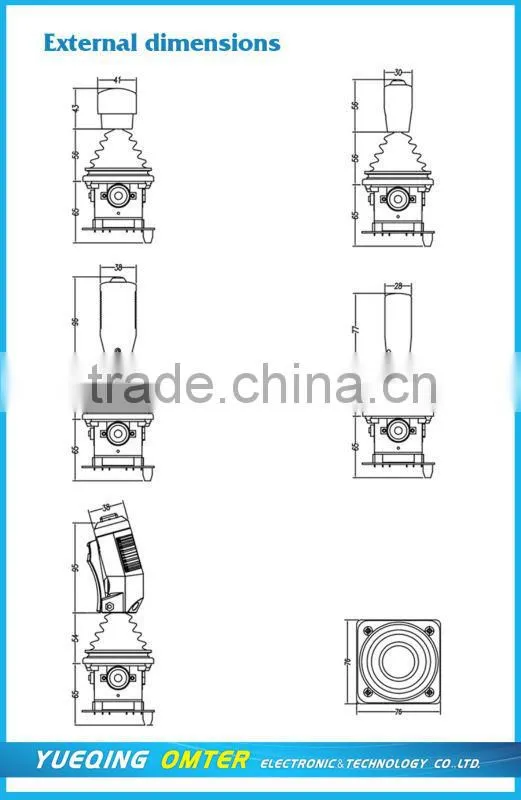

OM3000 Series joysticks Drawing:

OM3000-1A-H51-MS11-BG industrial joystick controller

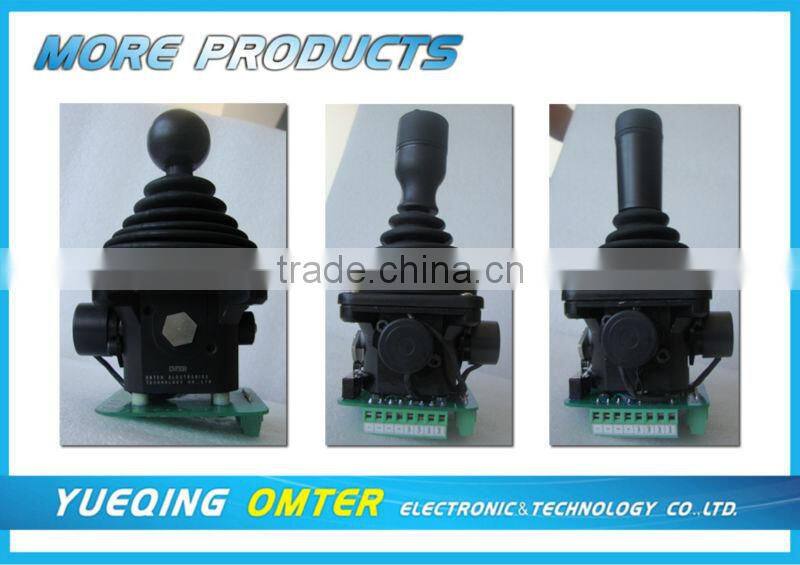

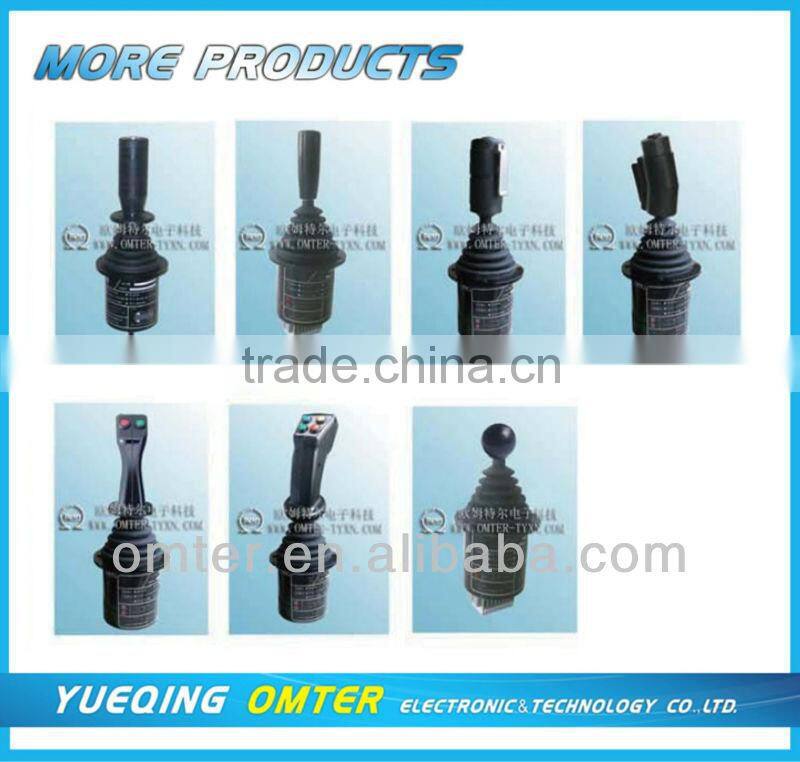

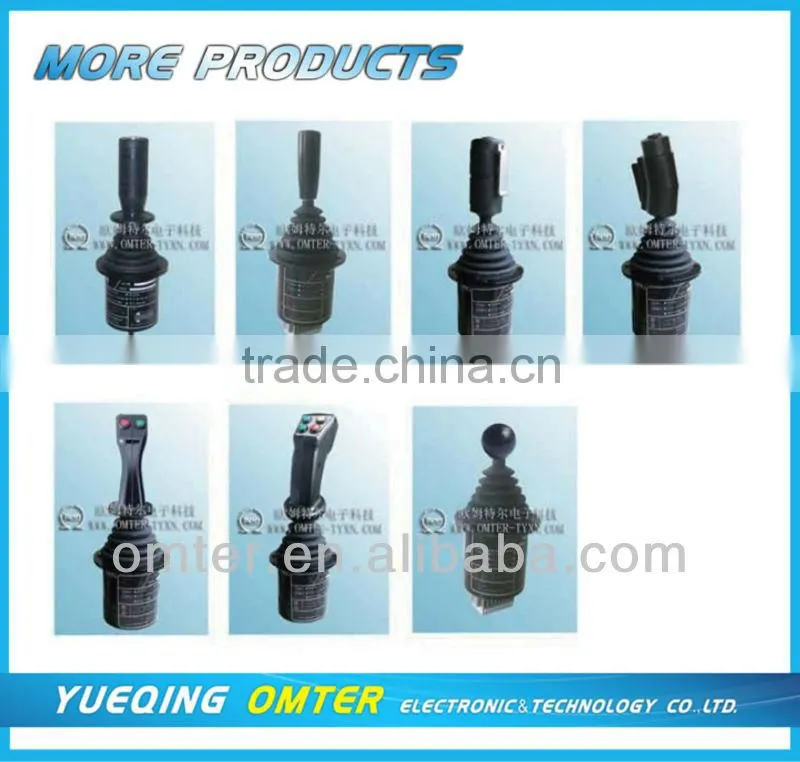

More products:

OM3000-1A-H51-MS11-BG industrial joystick controller

OM3000-1A-H51-MS11-BG industrial joystick controller

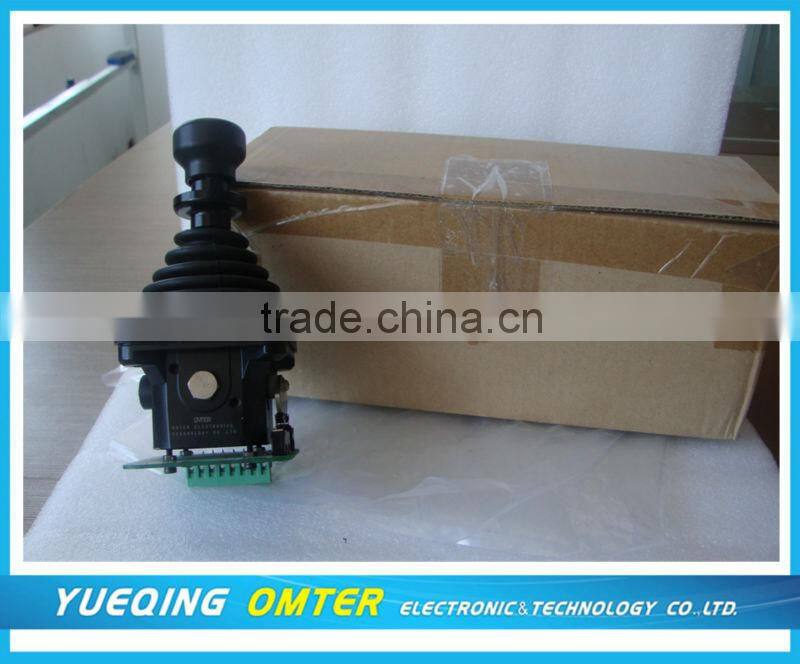

Package:



OM3000-1A-H51-MS11-BG industrial joystick controller

Express delivery:

OM3000-1A-H51-MS11-BG industrial joystick controller



Sample:

1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union



Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year



Advantage:

1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)



Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
