2016 New Designed Concrete Curb Blocks Machine
- 100 Set / Sets per Month
- Tianjin Qingdao
- T/T L/C D/P D/A Credit Card PayPal
-
China pe200x300 smallest jaw crusher
-
Popular compound pendulum jaw crusher price
-
2016 china products stone coated steel roofing tile ,shingle steel roof tile
-
2016 china products lightweight roof tile,blue glazed roof tile
-
colored metal roofing prices,sand coated metal roofing tiles
-
roofing tiles coated with stones,roofing tiles for houses
Product Details
| Condition: | New | Type: | Curbstone Block Machine | Brick Raw Material: | Concrete |
| Processing: | Other, Curb Making Machine | Method: | Vacuum Extruder | Automatic: | Yes |
| Capacity: | 1-5m/min | Place of Origin: | Hebei, China | Brand Name: | HT |
| Model Number: | HT450 | Voltage: | 380V | Power: | 10 Kw |
| Dimension(L*W*H): | 3000mmx1800mmx1300mm | Certification: | ISO9001:2008 | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2016 New Designed Concrete Curb Blocks Machine :
Application And Features:

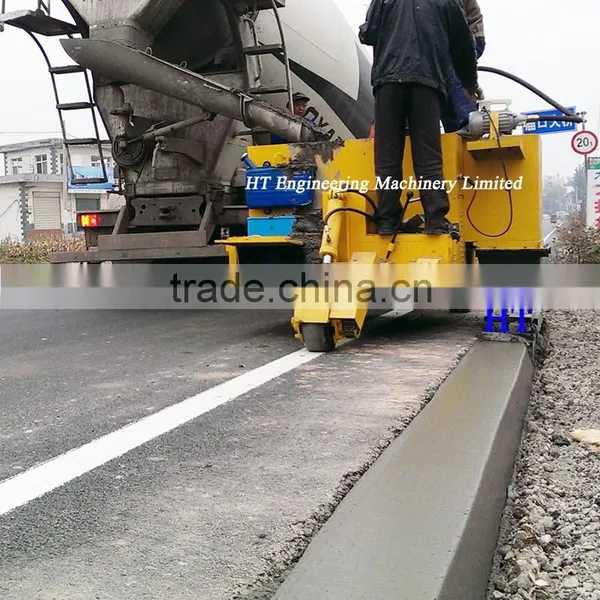

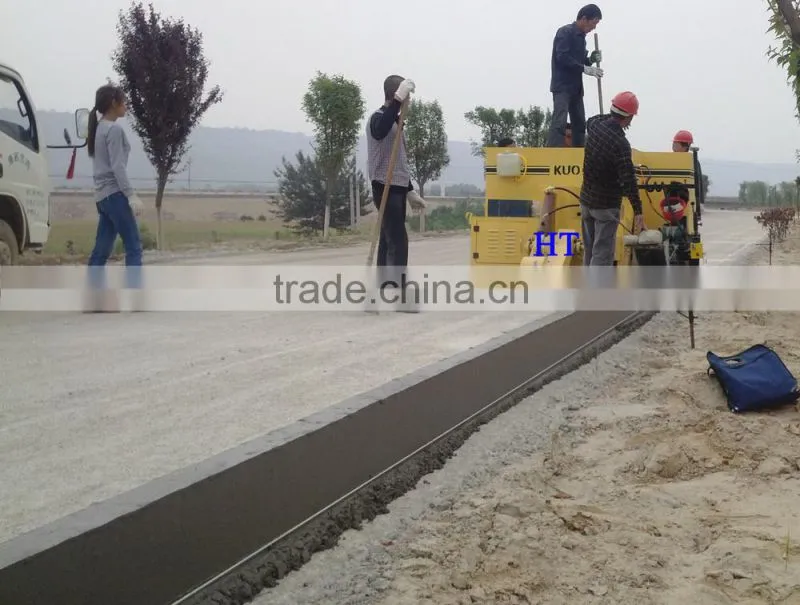

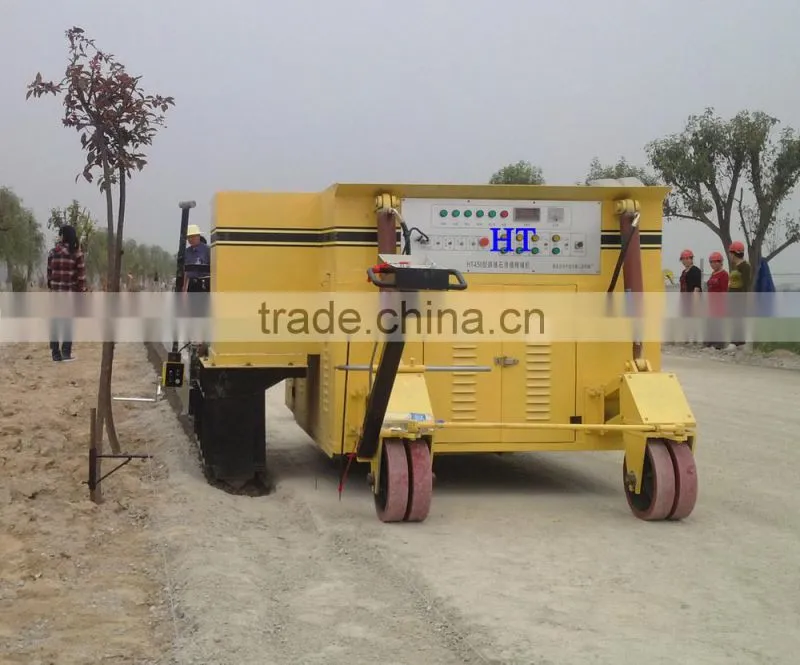

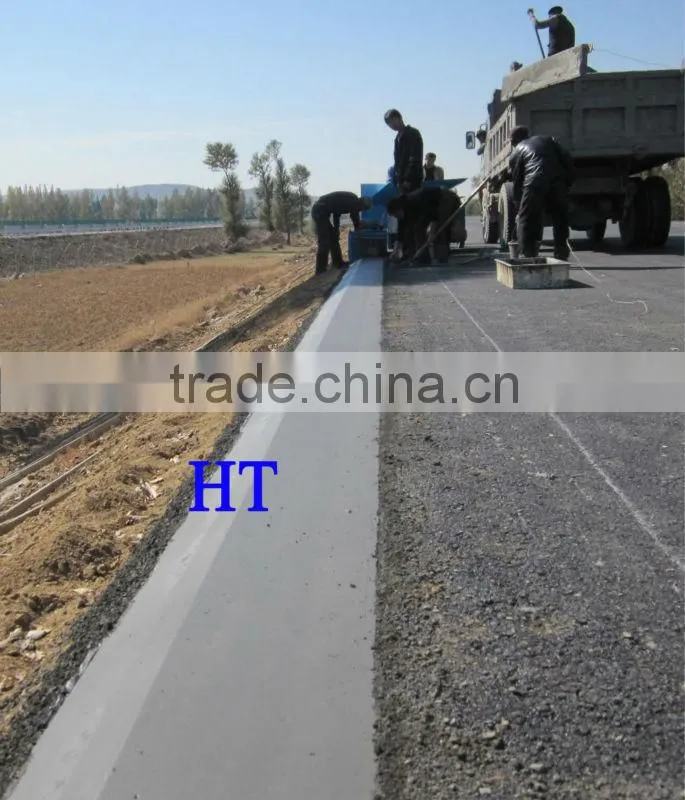

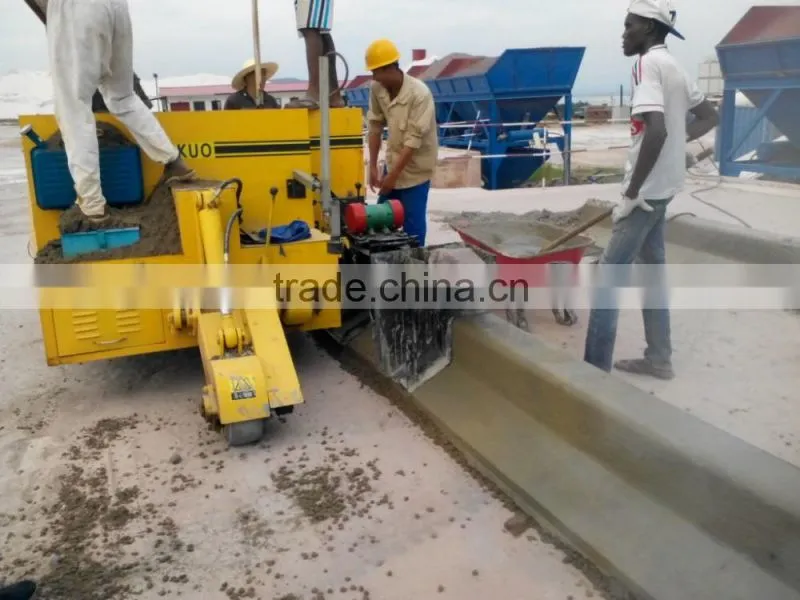

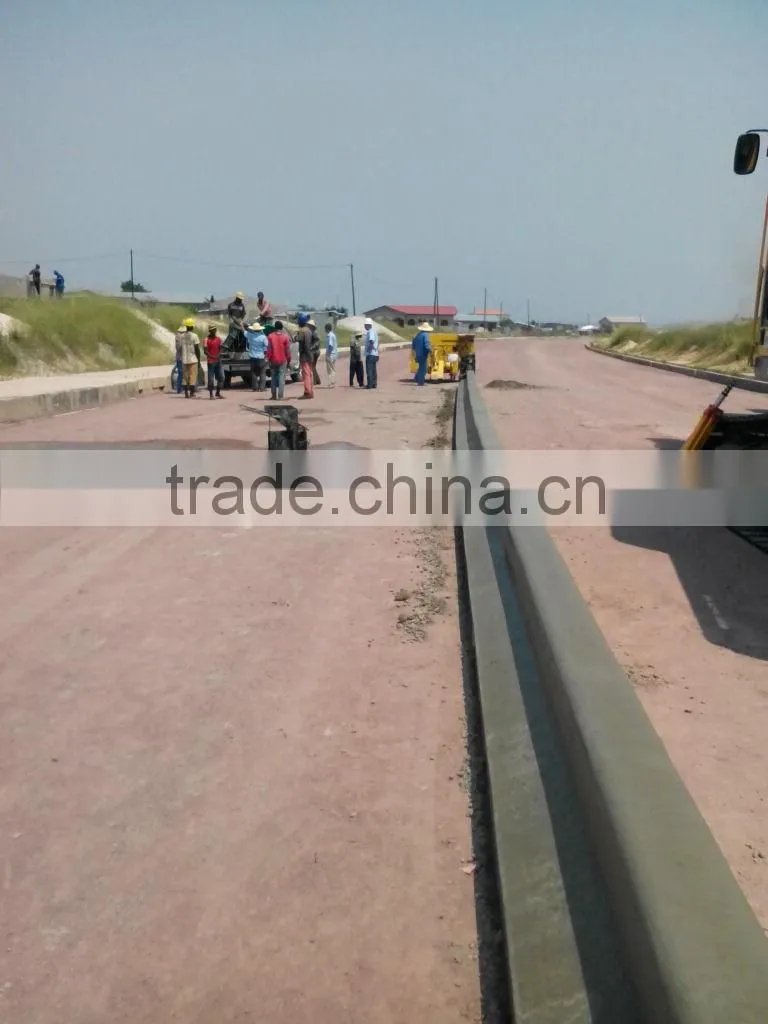

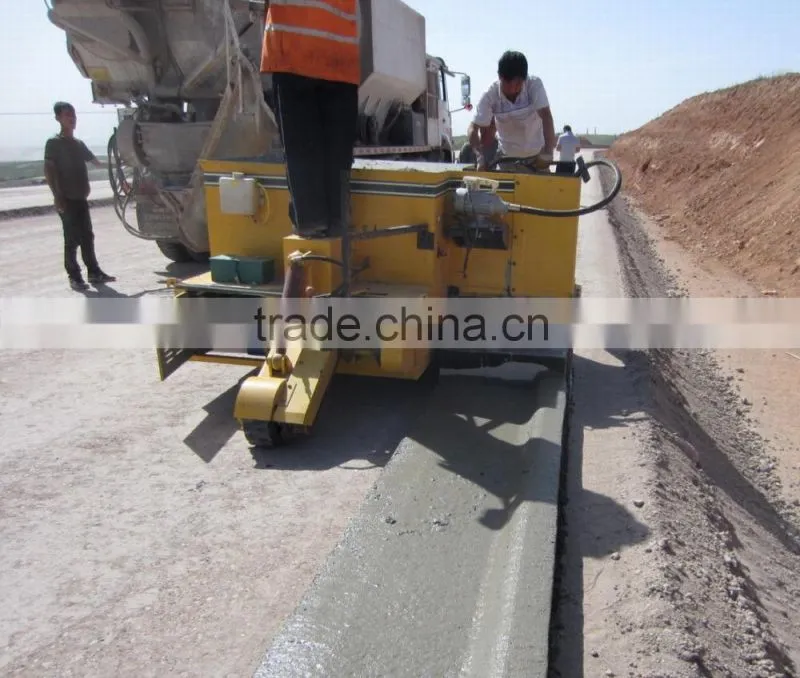

This machine is the special equipment for asphalt mixture or cement concrete road-building curbs.
Widely used in highway and municipal road curbs molding.
The built curbs linear has smooth appearance,water reaining effect is good,easy to operate,high production efficiency.
Technical Parameters:
HT450 | Specifactions | Features | |
Dimension | 3000mmx1800mmx1300mm | Compact, easy to move | |
Weight | 1500kg | ||
Road Kurb Size range | Width≤700mm,height≤450mm | Is widely applicable for kurbs | |
Parameters Of engine set | Fuel | Diesel | V-twin all-aluminum electric fule Injection (EFI) diesel engine Electronic speed control, voltage stability, light weight, small vibration, low noise, long life |
Power | 10kw | ||
Output voltage | 380v,3 phases | ||
Start-up mode | Electric start | ||
Rotation speed | 3000 rpm | ||
Radiating way | Water cooling | ||
The curbs molding way | Vibrator rod forming | Dry plastic concrete | High strength |
Flat vibrator forming | Dry hard concrete | Beautiful appearance | |
Digital leveling system | Leveling scope:±40mm | With temperature compensation Overvoltage overcurrent protection | |
Paving speed | 1-5m/min | Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving | |
Hopper capacity | 0.5m³ | Greater volume, reduce the number of shutdowns | |
Draw Example From Our Clients:
| Related Products |
1 Curb Machine--HT400
2 Curb Machine--HT750
3 Curb Machine--HT1000
4 Asphalt Curb Machine-LCX |
| 1 How about the quality of machines? |
| Our machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality. |
| 2 About the delivery time. |
| Generally, it will be about 20-25 days days after your deposit, which also will be on basis of your order. |
| 3 About warranty. |
| We provide 12 months for warranty. |
| 4 Which kind of payment is available for us? |
| T/T, L/C and Western Union are common for us. |
| 5 How about the service? |
| Provide overseas installation, debugging and training the relating work . |
High quality with low price :
Focus on water filter area,our factory has more than 20 years of professional experience,the price is directly from factory to our clients.
Multiple delivery choice :
We have big discount with forwarder,keep the goods reach yourside fast and safety.
Customer First, Credit-based :
7 x 24 hours service,every equiry will be treated carefully by us with authentic and quick replying.
