OM108 Slide Potentiometer
US$ 0.2 - 5
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
OM108
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
OM108
Type
Slide Potentiometer
Technology
Other, precision potentiometer
Resistance
3.3k~5.7k
Resistance Tolerance
±20%
Rated Power
0.05W 70 °C
Max. Operating Voltage
50V
Operating Temperature
-20°C~+85°C
Specifications
1.High quality and reasonable price2.Model NO : OM108
3.Slide potentiometer
4.MOQ: 10000pcs

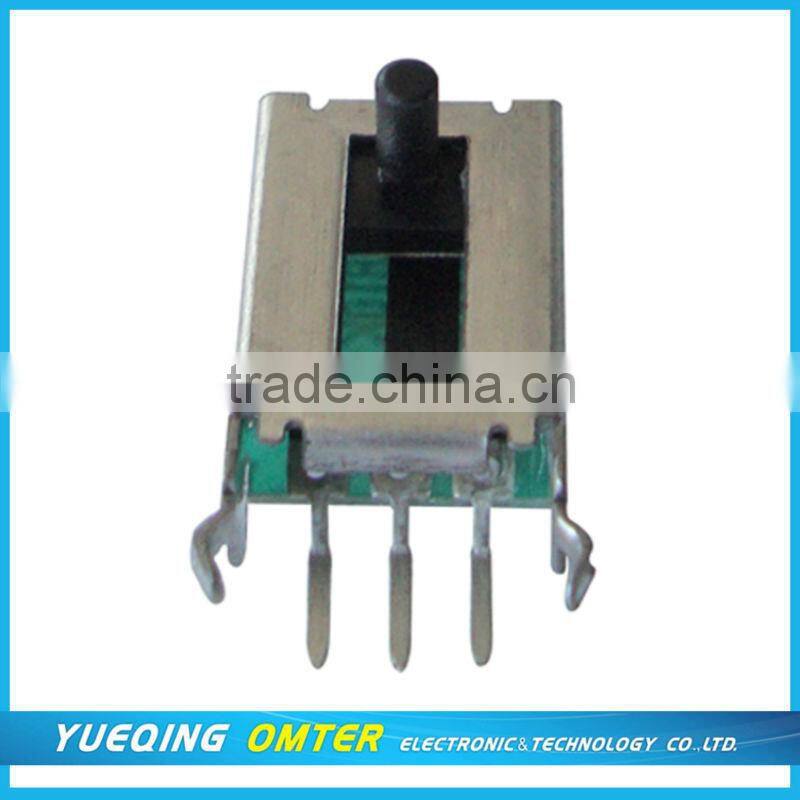

OM108 slide potentiometer

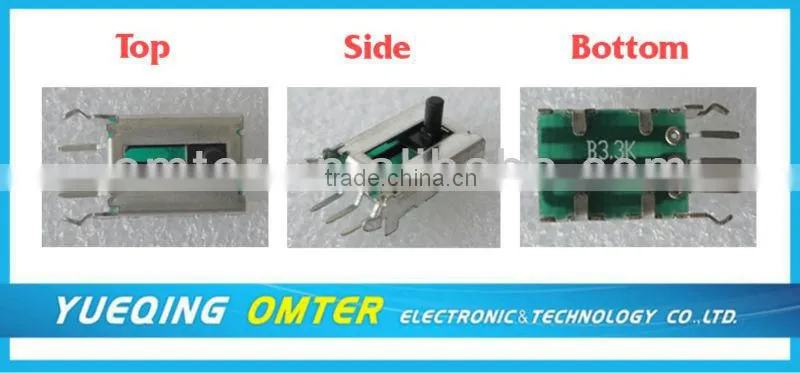

Detailed picture:
Mechanical parameter:
| General Characteristics: | See drawing |
| Shape and dimensions | -10°C~+75°C |
| Operating temperature range | -20°C~+85°C |
| Test conditions | Ordinary temperature (5~35°C) |
| Ordinary humidity (45~85°C) | |
| Ordinary atmospheric pressure (86~106kPa) | |
| Certificate | ROHS Compliant |
| Mechanical Characteristics: | |
| Slider Travel | 8mm |
| Operating force | 10~50gf.cm |
| Electrical Characteristics: | |
| Resistance Range | Any resistance as customer request |
| Power rating | 0.05W 70 °C |
| Max operating voltage | 50V |
| Total Resistance error | ±20% |
| Residual resistance: | |
| Slider noise | ≤68mV |
| Insulation resistance | 50MΩ min @ DC100V |
| Withstand voltage | 1 minute @ A.C100V |
| Solderability | 235°C±5°C @ 3±1 seconds |
| Endurance: | |
| Heat resistance | 16 hours @ 85±2°C |
| Moisture resistance | No change after 16 hours at 85±2°C |
| Low temperature resistance | No change after 96±4 hours at 40±2°C and 90~95%Rh Loaded |
| Rotation life | 10000 times ΔR≤25%R(Reciprocate 10,000 times at a speed of 10~15 times reciprocation per minute with no-load in the ordinary temp and humidity.) |

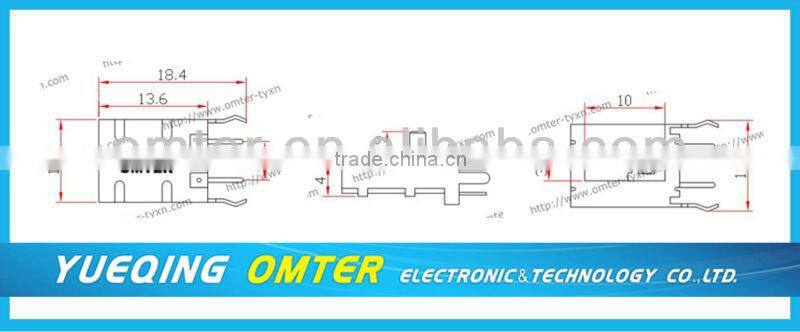

OM108 Drawing:

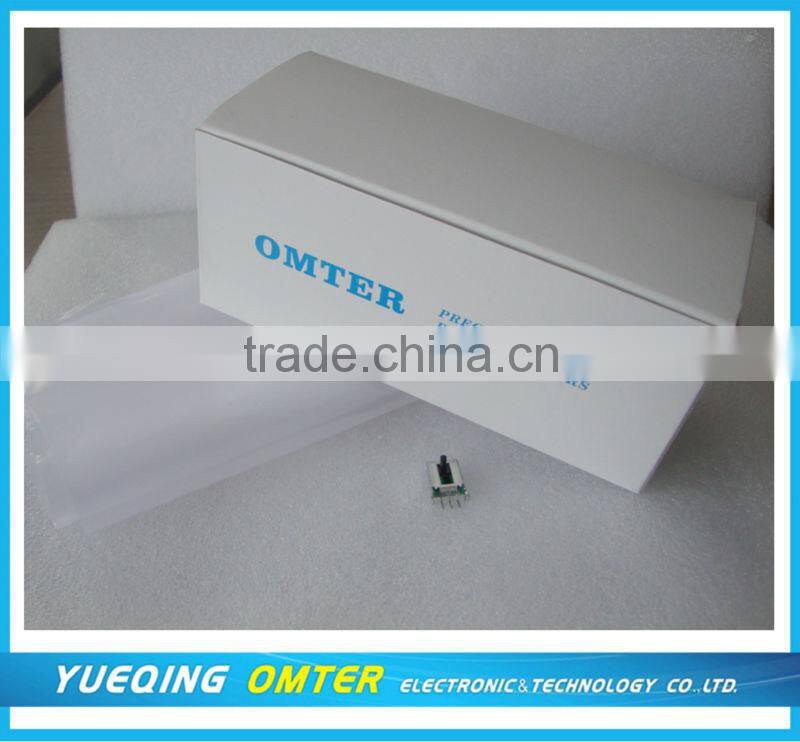

Package:
Produce:
Express delivery :
Sample:
1. Sample: Could provide sample.
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 10000pcs/ 1000pcs for other slide potentiometer
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Company Picture:
...
