Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Wire-wound Potentiometer
US$ 3 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
3590S-2
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
3590S-2
Type
Rotary Potentiometer
Technology
Wirewound
Resistance
1K, 2K, 3K, 5K
Resistance Tolerance
±15%
Rated Power
2W ( @70℃ )
Max. Operating Voltage
/
Operating Temperature
-55℃~ +125℃
Specifications
1.High quality and reasonable price2.Model NO : 3590S-2
3.Wire-wound potentiometer
4.MOQ: 10pcs
wire-wound potentiometer

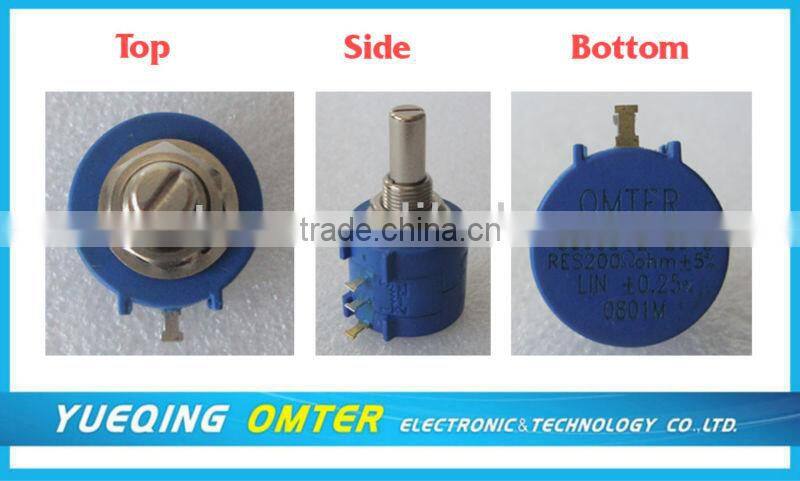

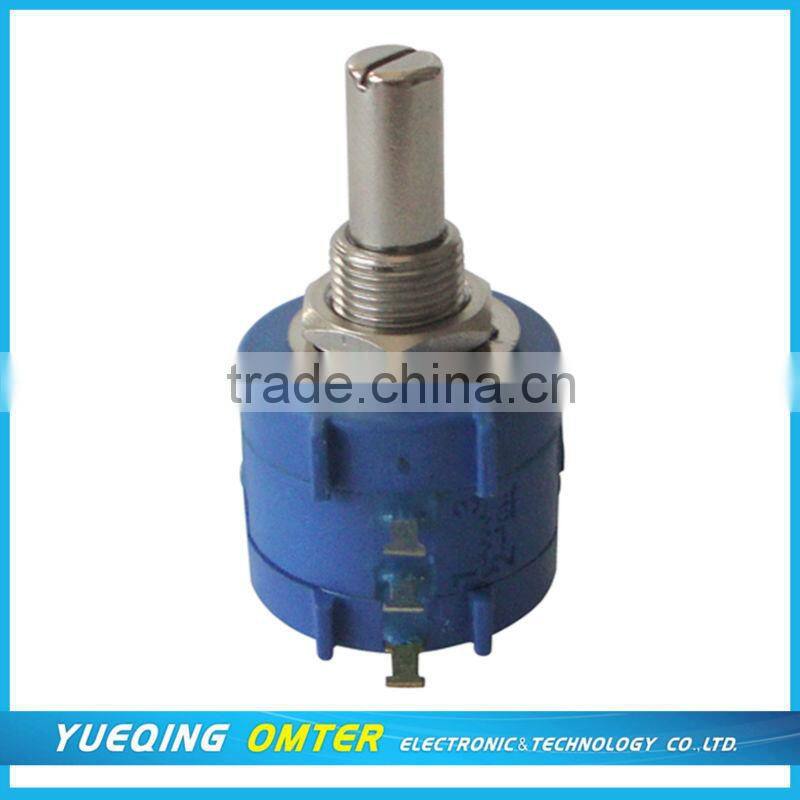

Detailed picture:
Mechanical parameter:
| Main performance | 3590 | 3540 | 534 | 7286 |
| Rated power | 2w | 2w | 2w | 2w |
| Max.operating voltage | 160V DC | 80V DC | 315V | |
| Standard Resistance Range | 200----100K | 200 ----100K | 00 ----100K | 100----100K |
| Resistance Tolerancer | ±2% ±5% | ±2% ±5% | ±5% | ±5% |
| Rotation torque | 2--100m N.m | 2--100m N.m | 2--100m N.m | 2--100m N.m |
| Staring Torque | ≤36mN.m | ≤36mN.m | ≤36mN.m | ≤36mN.m |
| Clutch Torque | ≥300mN.m | ≥300mN.m | ≥300mN.m | ≥300mN.m |
| Total mechanical travel | 1000000 Cycles | 10000 Cycles | ||
| Mchanical endurance | 3600°±10° | |||
| Temperature Range | -55°C----+125°C | |||

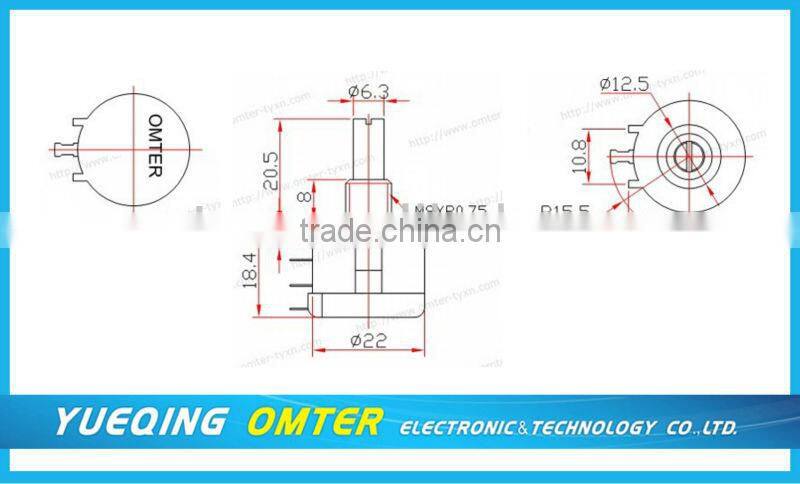

3590S-2 Drawing:

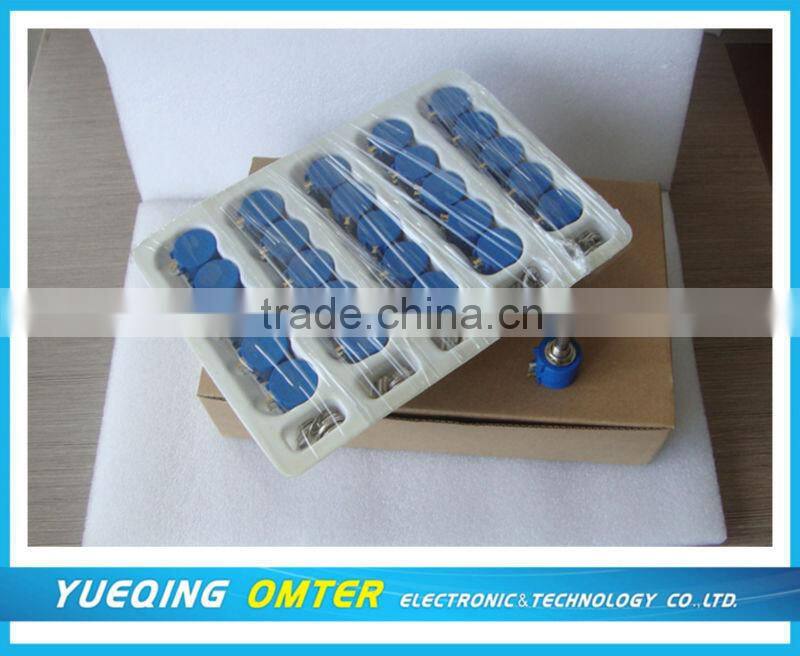

Package:
Produce:
Express delivery :
Sample:
1. Sample: Could provide sample.
2. Samples time: Need 7-15 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 10pcs
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Company Picture:
