Help CenterClosed Circuit Water Cooling System (JL)
Related Products
-
8P Water Cooling Unit For Induction Heating Machine (JL-AC-8)US$ 1,000 - 5,000MOQ: 1 Set -
Water Cooling Chiller (JL-AC-8)US$ 1,000 - 5,000MOQ: 1 Set
-
Open Type Water Cooling Unit (JL)US$ 1,000 - 5,000MOQ: 1 Set
-
Good Cooling Effect Water Tower (JL)US$ 1,000 - 5,000MOQ: 1 Set
-
High Quality Induction Heating Water Cooling SystemUS$ 100 - 10,000MOQ: 1 Set
Specifications
Closed Circuit Water Cooling System1. Max. Tem. Resistance is 95 deg.
2. Good cooling effect
3. Energy saving

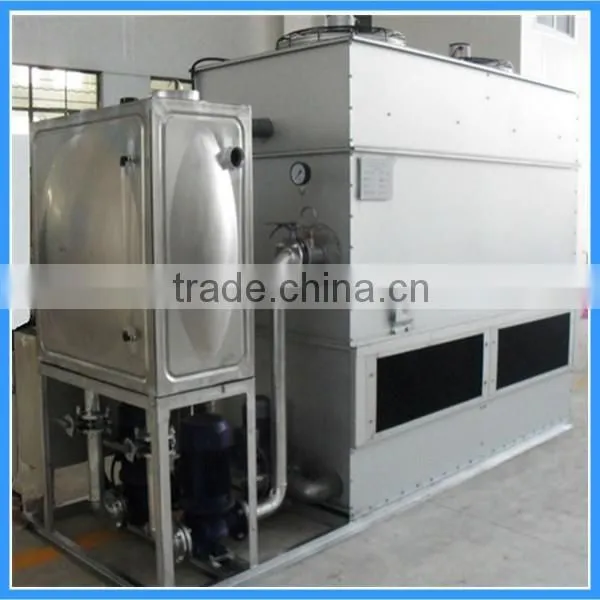

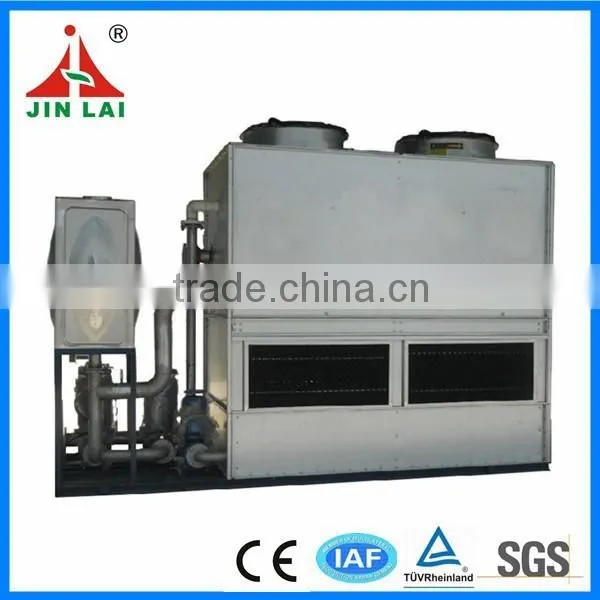

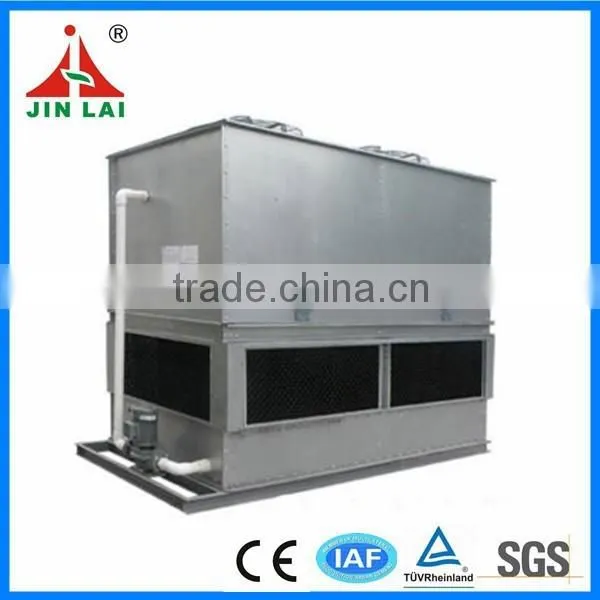

Closed Circuit Water Cooling System
Technical Parameter:
Content | Technical Parameter |
Design Condition |
|
Cooling capacity (MW) | 100000Kcal/h |
Inlet/Outlet Temperature | <55°C |
Flow of Circuiting water | 10-30T/H |
Quality of spraying water | Clean water/urban waterways |
Tower Body |
|
Length (mm) | 3000 |
Width (mm) | 1000 |
Height (mm) | 1950 |
N.W./Operation Weight(kg) | 840/1860 |
Pipe Size | |
Inlet size | DN65 |
Outlet Size | DN65 |
Overflow Pipe | DN15 |
Drain Pipe | DN15 |
Filling water pipe | DN15 |
Cooling Fan |
|
Air capacity m3/h | 24000 |
Diameter /Number of fan | 1200mm x 2 |
Power (kw) | 1.5 |
Motors | TEFC |
Power Supply | 380V/3P/50HZ |
Insulation Grade | F |
Configuration and introduction of Closed Cooling Tower
1. Cooling Principle
Main host of cooling tower consists of shell, heat exchange, fan blower, spray pump, water eliminator, water basin and pipe valves etc. The process fluid is circulated through the coil of the closed circuit cooler. Heat from the process fluid is dissipated through the coil tubes to the water cascading downward over the tubes. At the same time, air is drawn in through the air inlet louvers at the base of cooler and travels upward over the coil opposite the water flow. A small portion of water is evaporated which removes the heat. The warm moist air is discharged to the atmosphere. The remaining water falls to the sump at the bottom of the cooler where it is recirculated by the pump up through the water distribution system and back down over the coils.

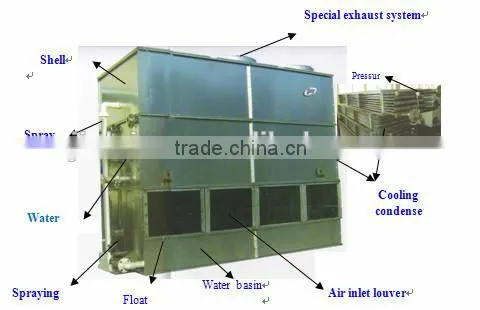

2.Structure Principle Drawing:
