Open Type Water Cooling Unit (JL)

Name: Open Type Water Cooling Unit (JL)
Brand: Jinlai
SKU: 123727383
Availability: InStock

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Type:

Condenser

Place of Origin:

Guangdong, China

Brand Name:

Jinlai

Dongguan Jinlai Electromechanical Device Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Type Condenser

Place of Origin Guangdong, China

Brand Name Jinlai

Model Number JL

Certification CE, UL, Other, CE, UL, ISO9001:2008, SGS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Open Type Water Cooling Unit
1. Max. Tem. Resistance is 95 deg.
2. Good cooling effect
3. Energy saving

Open Type Water Cooling Unit

Detailed description on products

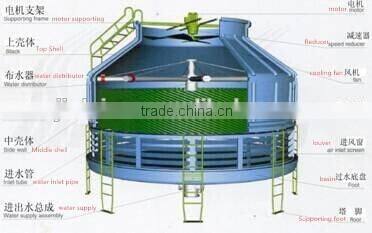

Structural Drawing for Round Open Cooling Tower

Performance and characteristics:

1.High efficiency (cooling effect 100%)

2. High efficiency and energy conservation

3. Low noise: High-quality sound-absorbent materials and transmission parts are used to effectively

control noise produced by machine.

4. Several cells can be combined together to keep normal running in case of any fan in default.

5. Environmental protection property of cooling tower equipment and in film shape to maximally avoid the flowing sound of water;

Technical Parameter of Cooling tower

Name Technical Parameter	Open circuit counter-flow Cooling tower
Model	JL-20T Round Open Cooling Tower
QTY	1
Treatment capacity per cell (m³/h)	20
Total capacity (m³/h)	20
Water inlet pipe Diameter(mm)	50
Water outlet pipe Diameter(mm)	50
Overflow Pipe Diameter(mm)	25
Discharge Pipe Diameter(mm)	25
Water make-up Pipe Diameter(mm)	25
Drift rate(%)	Less than 0.001%
Fan motor	380V,0.75kw
Protection Level of Motor	IP55
Insulation Level of Motor	F
Temperature-up Level of Motor	B
Heat rejection of Motor	IC411
Fan diameter(mm)	900mm
Fill material	PVC
O.D. (Diameter x Height)cm	1500×1915
Noise(dB)	50.0
N.W.(Kg)	160
Running Weight Kg	364
