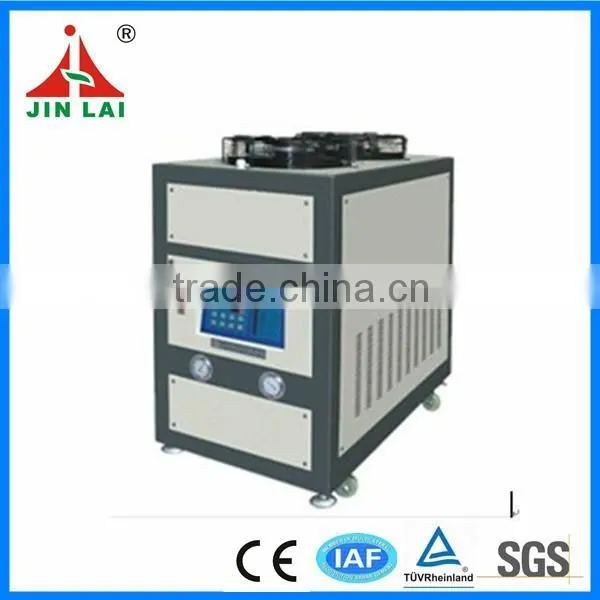

Water Cooling Chiller For Induction Heater (JL-AC)

Specifications

Water Cooling Chiller For Induction Heater
1. Max. Tem. Resistance is 95 deg.
2. Good cooling effect.
3. Energy saving.

Water Cooling Chiller For Induction Heater


Cooling Chiller Features:

1) Good shape with small outside size, light weight
2) Optimum structure
3) The cooling tower body is made of FRP, which is anti-aging, anti-corrosion, without fading and distortion
4) Min. Noise: The lowest noise blower and unique noise elimination technology is adopted to reduce the noise to a minimum level
5) with reliable operation: All steel structure brackets are galvanized and corrosion resistant. The usage life is twice longer compared with similar products
6) Simple operation and maintenance: CTNC intelligent control system is adopted to realize labor free management
7) The angles of all the fans are regulative and axial-flow, which are made of advanced engineering plastics.
8) All the motors are sealed, which can be used in the severe weather and circumstances.



 9) The casing and water plate of the cooling tower are made of fiberglass, which will not be corroded, and no painting is needed. They can be used for a long time with very low maintenance cost.



10) The radiating film is made of polyvinyl chloride hard and heat-resisting.
The temperature in the water is up to 54. C and the special structure enables the water to touch the film in the biggest area with low air resistance. The energy exchanging efficiency is very high.





Technical Parameter

Model		AC-0.6	AC-1	AC-2	AC-3	AC-5	AC-6	AC-8(D)	AC-10(D)	AC-12	AC-15(D)	AC-20(D)	AC-25(D)	AC-30(D)	AC-40(D)	AC-50(D)
nominal cooling apacity	Kcal/h 50HZ/60HZ	1290	2382	4541	6803	11094	13091	17604	22188	25146	35500	44230	50293	68043	88752	109478
		1514	2786	5315	7955	13235	15901	21001	26478	29661	41882	52064	59314	81648	106468	131373
	Btu/h 50HZ/60HZ	5119	9452	18019	26994	44021	51937	69853	88042	99779	140864	175505	199563	269995	352168	434409
		6008	11055	21090	31565	52516	63095	83332	105065	117695	166188	206590	235358	323979	422465	521288
	KW 50HZ/60HZ	1.5	2.77	5.28	7.91	12.9	15.22	20.47	25.8	29.24	41.28	51.43	58.48	79.12	103.2	127.3
		1.76	3.24	6.18	9.25	15.39	18.49	24.42	30.79	34.49	48.7	60.54	68.97	94.94	123.8	152.8
	US.RT/h 50HZ/60HZ	0.43	0.79	1.51	2.25	3.67	4.33	5.83	7.34	8.32	11.74	14.63	16.64	22.5	29.35	36.21
		0.5	0.93	1.76	2.63	4.38	5.26	6.95	8.76	9.81	13.85	17.22	19.62	27	35.21	43.45
input power	KW	1.01	1.34	2.27	3.33	5.8	6.33	9.25	10.37	11.58	15.82	21	23.8	33.2	42	53
power supply		1PH~220V 50HZ(60HZ)			3PH~380V 50HZ(60HZ)
refrigerant	type	R22(R134a/R407c)
	type of contol	capillary								thermostatic expansion valve
compressor	type	hermetic rotary			hermetic scroll(piston)
	power(KW)	0.59	0.89	1.77	2.8	4.66	5.2	3.8*2	4.66*2	9.98	7.2*2	8.85*2	9.98*2	13.62*2	17.7*2	22*2
condenser	type	finned copper tube + low noise outer rotor fan
	cooling air flow(m3/h)	750	1000	2000	3000	5000	6000	8000	10000	12000	15000	20000	25000	30000	40000	50000
evaporator	type	water tank with coil (shell and tube)
	chilled fluid flow(m3/h)	0.258	0.476	0.908	1.36	2.22	2.6	3.52	4.44	5.03	7.1	8.84	10.06	13.6	17.75	21.9
		0.303	0.557	1.063	1.59	2.65	3.2	4.2	5.3	5.93	8.37	10.41	11.86	16.33	21.29	26.3
	tank volume(L)	16	20	40	50	70	70	120	200	200	270	350	350	420	580	580
	inlet and outlet pipe diameter	1/2"	1/2"	1/2"	1"	1"	1"	1"	1-1/2"	1-1/2"	2"	2"	2-1/2"	2-1/2"	3"	3"
water pump	power(KW)	0.37	0.37	0.37	0.37	0.75	0.75	0.75	0.75	1.1	1.5	2.25	2.25	3.75	3.75	5.5
	lift(m)	20	20	20	20	20	20	22	20	20	20	20	20	22	22	23
safety protection		compressor over temperature, over current, high and low pressure, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating,antifreezing
dimensions	length(mm)	500	500	580	930	1140	1140	1300	1530	1680	1800	2000	2000	2200	2000	2200
	width(mm)	500	500	550	520	560	560	720	780	810	990	1130	1130	1130	1500	1700
	height(mm)	725	725	925	975	1040	1040	1350	1470	1280	1680	1720	1914	2100	2100	2100
weight	kg	50	73	100	135	175	180	320	450	530	750	835	920	1080	1125	1250
