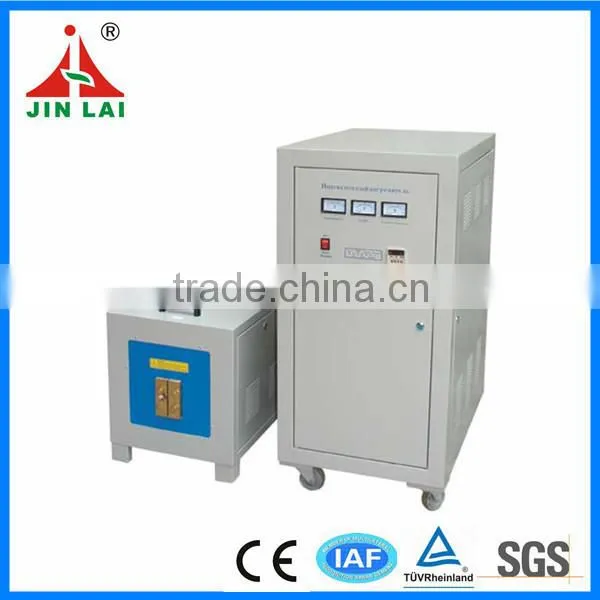

Help CenterPromotional Latest Induction Heating For Bolt, Steel Bar
Related Products
-
Bolt And Nuts Induction Hot Forging UnitUS$ 1,000 - 100,000MOQ: 1 Set -
Superaudio Frequency Induction Heating For Shaft QuenchingUS$ 1,000 - 100,000MOQ: 1 Set
-
Induction Heating System For Metal ForgingUS$ 1,000 - 100,000MOQ: 1 Set
-
IGBT Induction Heating Unit For Forging And HardeningUS$ 1,000 - 100,000MOQ: 1 Set
-
Portable Induction Welding Machine For Mining Cutting ToolUS$ 1,000 - 100,000MOQ: 1 Set
Specifications
Promotional Latest Induction Heating For bolt, Steel Bar1.IGBT technology.
2.Perfect protection function.
Promotional Latest Induction Heating For bolt, Steel Bar
1) Feature:
1. IGBT inversion technology reduce operating cost
2. High efficiency up to 90%
3. LC series circuit and voltage feedback design achieve energy saving up to 30% compared with SCR technology induction machine
5. Diode rectification technology make sure high power factor –never less 0.95
6. Soft switch technology and prefect protection system enhance good reliability
7. Suitable for heating medium size of part.
2) Specifications:
Model |
JLC-80KW |
|
Input power desire |
3 phase 380V 50/60HZ |
|
Oscillate power max |
80KW |
|
Max input current |
135A |
|
DC current |
150A |
|
Oscillate frequency |
10-30KHZ |
|
Timing |
1M-99.99M 1S-99.99S 0.01S-99.99S |
|
Cooling water desire |
0.4Mpa |
|
Duty cycle |
100% 40°C |
|
Dimensions(L*W*H) |
Generator |
550*790*1050mm |
transformer |
560*430*540mm |
|
Net weight |
80kg/55kg |
|
Cable length |
2-6(Meters) |
|
3) Spare parts for JLC-80KW Machine
Item |
Name of machine or parts |
Specification |
Amount |
1 |
JLC-80KW Generator |
- |
1 pc |
2 |
JLC-80KW Transformer |
- |
1 pc |
2 |
Foot switch |
3 core |
1 pc |
3 |
Induction Coils |
- |
3 sets |
4 |
Coil connect pole |
- |
3 set |
5 |
Instruction Manual |
- |
1 |
6 |
Packing list and receipt |
- |
1 |
7 |
Guarantee card |
- |
1 |
8 |
Products certificate |
- |
1 |
4) Application:
1. Pre-heating for forging and forming
2. Brazing
3. Heat treatment such as surface hardening
4. Melting for aluminum, copper etc
5. Pipe Pre-heating and soak before after weld
6. Pipe heating for elbow machine
