Specifications
Solid State Induction Metal Forging Induction Heater1.IGBT technology.
2.Perfect protection function.
3.Converting frequency

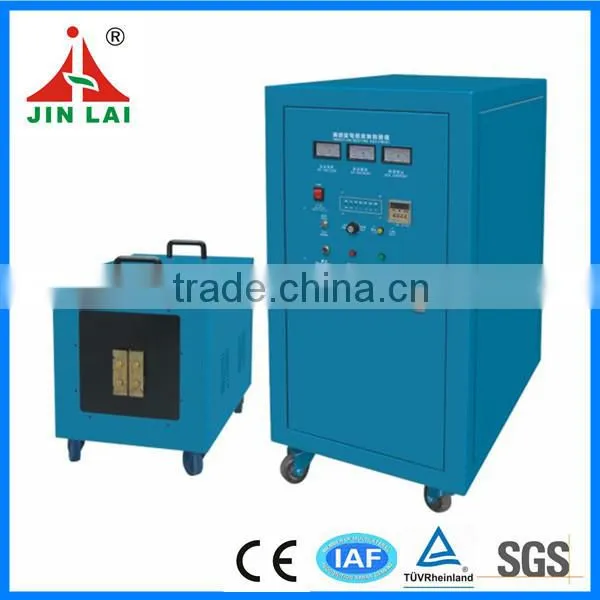

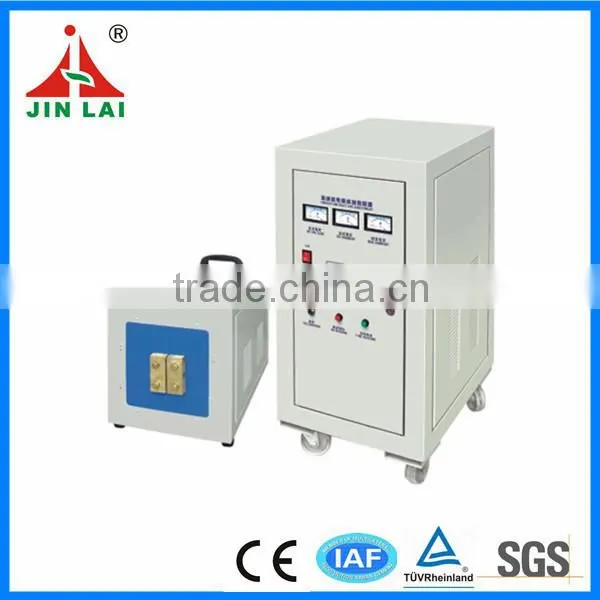

Solid State Induction Metal Forging Induction Heater
1) Feature:
1. IGBT inversion technology reduce operating cost
2. High efficiency up to 90%
3. LC series circuit and voltage feedback design achieve energy saving up to 30% compared with SCR technology induction machine
5. Diode rectification technology make sure high power factor –never less 0.95
6. Soft switch technology and prefect protection system enhance good reliability
7. Suitable for heating medium size of part.
2) Specifications:
Model | JLC-50KW | |
Input power desire | 3 phase 380V 50/60HZ | |
Oscillate power max | 50KW | |
Max input current | 63A | |
DC current | 80A | |
Oscillate frequency | 10-30KHZ | |
Timing | 1M-99.99M 1S-99.99S 0.01S-99.99S | |
Cooling water desire | 0.3Mpa | |
Duty cycle | 100% 40°C | |
Dimensions(L*W*H) | Generator | 400*580*920mm |
transformer | 450*330*500mm | |
Net weight | 65kg/45kg | |
Cable length | 2-6(Meters) | |
3) Spare parts for JLC-50KW Machine
Item | Name of machine or parts | Specification | Amount |
1 | JLC-50KW Generator | - | 1 pc |
2 | JLC-50KW Transformer | - | 1 pc |
2 | Foot switch | 3 core | 1 pc |
3 | Induction Coils | - | 3 sets |
4 | Coil connect pole | - | 3 set |
5 | Instruction Manual | - | 1 |
6 | Packing list and receipt | - | 1 |
7 | Guarantee card | - | 1 |
8 | Products certificate | - | 1 |

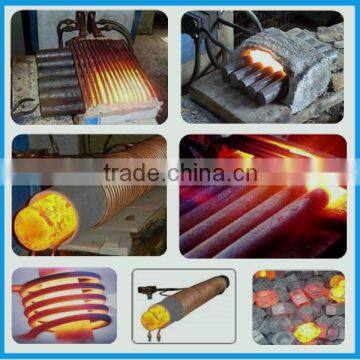

4) Application:
1. Pre-heating for forging and forming
2. Brazing
3. Heat treatment such as surface hardening
4. Melting for aluminum, copper etc
5. Pipe Pre-heating and soak before after weld
6. Pipe heating for elbow machine
