TIWIN 18 W 4000K LED Square Batten Tube

Name: TIWIN 18 W 4000K LED Square Batten Tube
Brand: TIWIN
SKU: 123722903
Availability: InStock

Jiangsu Tianying Opto-Electronics Technology Company Limited

Negotiable MOQ: 25 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

TIWIN

Model Number:

CR010018A8U-N040SG4D101

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name TIWIN

Model Number CR010018A8U-N040SG4D101

Luminous square tube

Powerful, adapt to modern commercial space, anti-glare design, high CRI, soft and even light

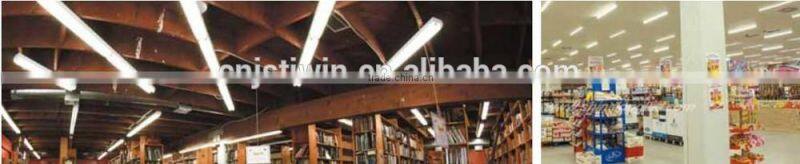

Applications: modern offices, commercial places, train and subway tunnels, etc.

Features

Beautiful and delicate square appearance design

Integration of the architecture environment, for the construction of a new generation of lighting

Compared with T8 tubes, energy saving increased by more than 56%

Variety of installation mode, fast and convenient.

Features:
Middle power 0.1W 3014 SMD LED using A-class chip Aluminum + PC housing, no dange of broken glass Milky cover with soft and uniform light no hazardous materials No fluorescent flickering Warranty: 2 years
Part No.		Description
L579 X W32 X H45, 9 Watt,220-240VAC,Ra≥70,IP20, ≥3000H
LSB-60CM-CW	CR010009A8U-N065SG4D101	84pcs Edision, 6500K, 120°, 880lm, 2 years warranty
LSB-60CM-NW	CR010009A8U-N040SG4D101	84pcs Edision, 4000K, 120°, 800lm, 2 years warranty
LSB-61CM-NW	CR010009A8U-N030SG4D101	84pcs Edision, 3000K, 120°, 720lm, 2 years warranty
L879 X W32X H45, 14 Watt, 220-240VAC, Ra≥70,IP20, ≥3000H
LSB-90CM-CW	CR010014A8U-N065SG4D101	132pcs Edision, 6500K, 120°, 1300lm, 2 years warranty
LSB-91CM-CW	CR010014A8U-N040SG4D101	132pcs Edision, 4000K, 120°, 1200lm, 2 years warranty
LSB-92CM-CW	CR010014A8U-N030SG4D101	132pcs Edision, 3000K, 120°, 1100lm, 2 years warranty
L1117 X W32X H45, 18 Watt, 220-240VAC, Ra≥70,IP20, ≥3000H
LSB-120CM-CW	CR010018A8U-N065SG4D101	180pcs Edision, 6500K, 120°, 1700lm, 2 years warranty
LSB-121CM-CW	CR010018A8U-N040SG4D101	180pcs Edision, 4000K, 120°, 1600lm, 2 years warranty
LSB-122CM-CW	CR010018A8U-N030SG4D101	180pcs Edision, 3000K, 120°, 1500lm, 2 years warranty

	JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD.
Document ID	Product Specification				Version	1.01
Compile Date					Page	1/1
Pho t o		Category	Item	Specifications
		Lamp Info.	Name	Luminous square tube
			Model	LLS3702 A09
			Product code	T-231-10061
			Product specification	AC220V 50Hz 9W
			Size	L 579 x W32 x H45 mm
			Installation method	Ceiling-mounted
			ambient temperature	-10~40℃@20~85%
			Angle adjustment	No
			Control method	No
			Protection grade	IP20
			Rated lifespan	≥30000H
dimensions		standard	standard	GB7000.1-2007
			certification	CCC
		Major component	material	High pure aluminum
			Radiator component	High pure aluminum lamp body
			Ottica	Light diffusion PC(milky white)
			Installations component	Snap-in
			color	Silver gray
CPD		Optical parameters	Beam angle	132°
			Luminous flux	800±80LM
			CCT	6000±500K
			CRI	Ra≥70
		Light source	Brand	Epistar
			Lamp type	SMD 3014
			specification	0.1W ,84pcs
attachment		Electric appliance	Brand	TIWIN
			name	Built-in LED driver
			specification	output:9W,50mA constant current drive
			IP	--
		Packing	Inner box size	K3A three layers L622 x W53 x H40mm
			Carton size	A=B five layers L642 x W285 x H220mm
			weight(Kg)	N.W =0.36kg
			enclosure	Installation instructions
			packing	25pcs inner boxes per carton
