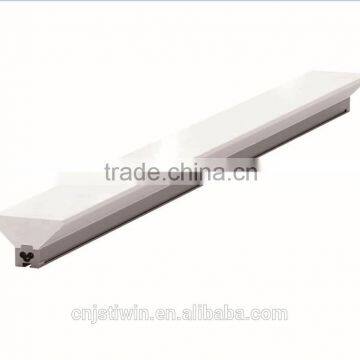

Help CenterTIWIN 9W Trapezium T Batten Tube LED Special Tube
Related Products
-
TIWIN 14W Trapezium Batten TubeNegotiableMOQ: 12 Pieces -
Linkabel 9W Warm White 600mm Ceiling Mounted Light Led Batten Light Wall Mount Led LightNegotiableMOQ: 100 Pieces
-
9W Natural White Round Led Batten LightNegotiableMOQ: 100 Pieces
-
Round 14w Warm White 1200mm Led Batten Lighting /lightNegotiableMOQ: 100 Pieces
-
Round Commercial Office Project High Lumen 14w Natural White 1200mm Led Batten Lighting 4ft Led Tube LightNegotiableMOQ: 100 Pieces
T shape tube
According to square pass installation structure design, does not destroy the ceiling structure, make the whole lighting space harmonious
Applications: modern offices, commercial places, train and subway tunnels, etc.
2-years warranty
Features
Luminous trapezoid tube combined with ceiling perfectly according to square pass installation structure design
High-quality aluminum light body, good heat dissipation
Light cover is made of light diffusion PC, soft and even light
Famous brand LED chip and driver, stable performance
Ceiling-mounted installation, no dark areas in serie
| JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD. |
| ||||||||
Document ID |
| Product Specification | Version | 1.03 | ||||||
Compile Date |
| Page | 1/1 | |||||||
photo |
| Category | Item | Specification | ||||||
Basic info. | Name | Luminous trapezoid tube | ||||||||
Model | LLS3704 A09 | |||||||||
Product code | CR080009A8U-N0CWSG4D101 | |||||||||
Specification | AC220V 50Hz 9W | |||||||||
Size | L 579 x W100 x H69 mm | |||||||||
Installation method | Ceiling-mounted | |||||||||
Ambient temperature | -10~40℃@20~85% | |||||||||
Angle adjustable | NA | |||||||||
IP grade | IP20 | |||||||||
Rated lifespan | ≥30000H | |||||||||
Dimensions |
Standard | Executive Standard | GB7000.1-2007 | |||||||
certification | CCC | |||||||||
Main part materials | Lamp material | Aluminum | ||||||||
Radiator unit | PCB board +aluminum lamp body | |||||||||
Ottica | Light diffusion PC(milky white) | |||||||||
Installation component | Install buckle | |||||||||
Color | Alumina ecru | |||||||||
CPD |
|
Lamp house parameters | Beam angle | 135° | ||||||
Luminous flux | 800±80LM | |||||||||
CCT | 6000±500K | |||||||||
CRI | Ra≥70 | |||||||||
optical parameters | Brand | Epistar | ||||||||
Lamp type | SMD 3014 | |||||||||
Specification | 0.1W ,84pcs 84 | |||||||||
Attachment |
|
Electric parameters
Electric parameters | Brand | TIWIN | ||||||
Name | built-in LED lighting drive | |||||||||
Specification | output:9W,50mA constant current drive | |||||||||
Package
| Inner box | K3A three layer L615 x W135 x H105mm | ||||||||
Carton | A=B five layer L623 x W452 x H435mm | |||||||||
Enclosure | Installation instructions | |||||||||
Package | 12 inner boxes per carton | |||||||||
