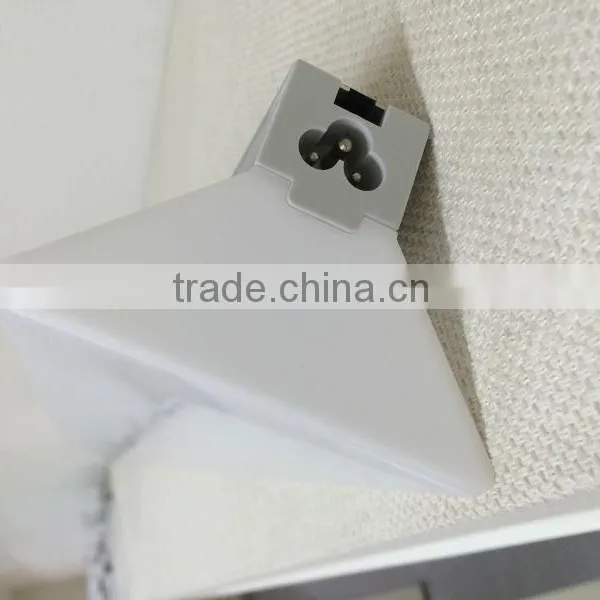

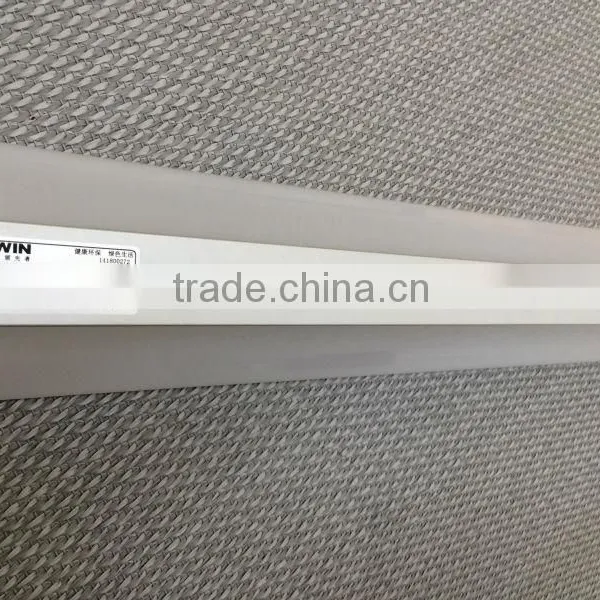

TIWIN 18W LED Trapezium Batten Tube

Name: TIWIN 18W LED Trapezium Batten Tube
Brand: TIWIN
SKU: 123722787
Availability: InStock

Negotiable MOQ: 12 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

TIWIN

Model Number:

CR080018A8U-N0CWSG4D101

Jiangsu Tianying Opto-Electronics Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name TIWIN

Model Number CR080018A8U-N0CWSG4D101

Specifications

18W/Epistar-SMD3014/CW/ internal driver/220VAC/Silver Grey/1179*100*69mm/Alumina ecru

T shape tube

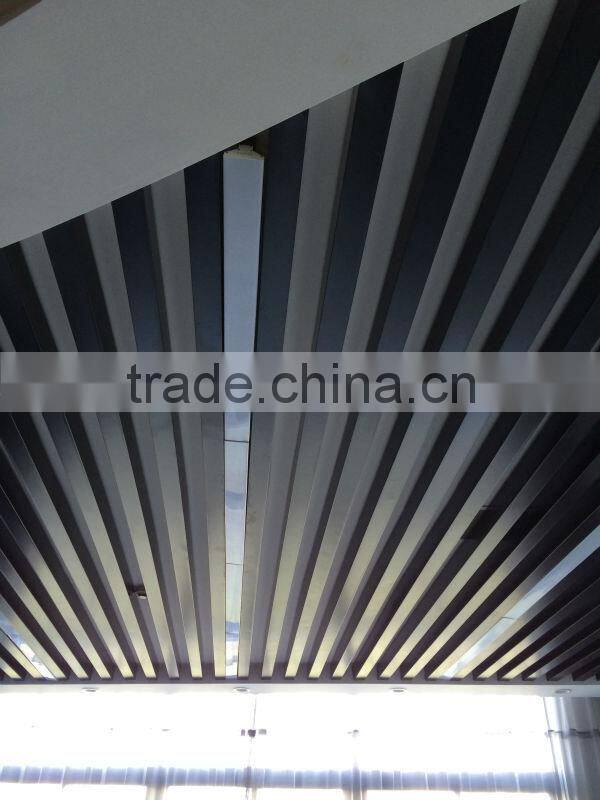

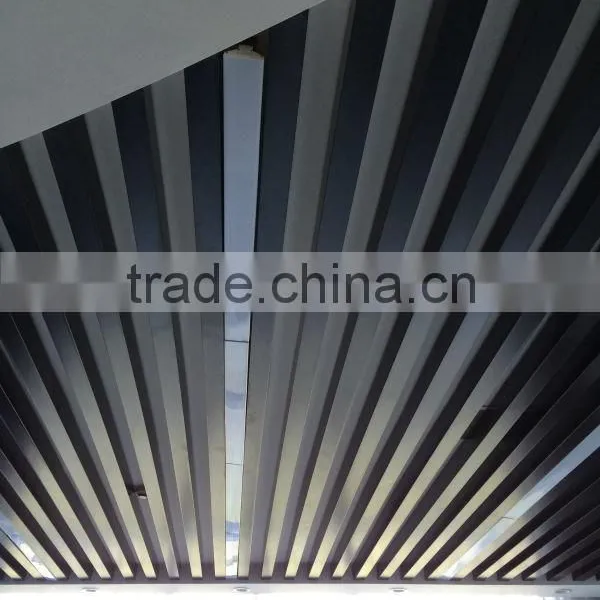

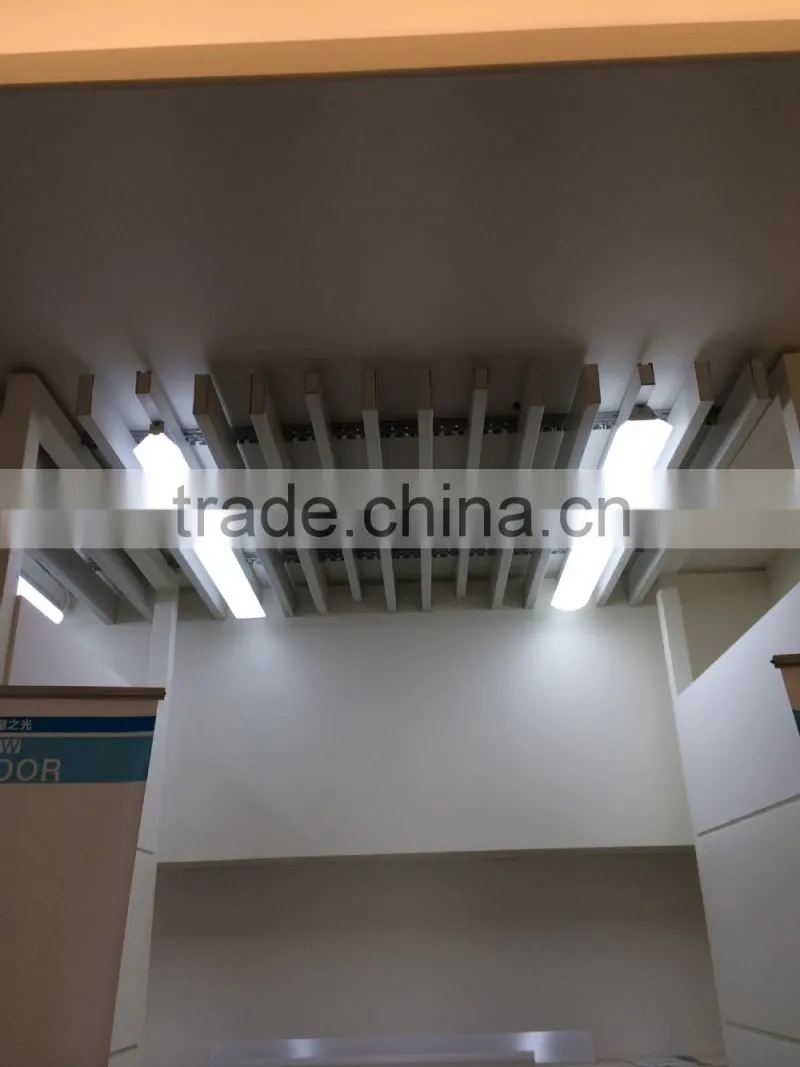

According to square pass installation structure design, does not destroy the ceiling structure, make the whole lighting space harmonious

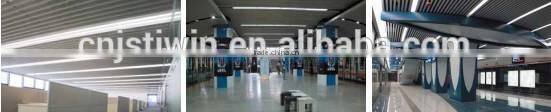

Applications: modern offices, commercial places, train and subway tunnels, etc.

2-years warranty

Features

Luminous trapezoid tube combined with ceiling perfectly according to square pass installation structure design

High-quality aluminum light body, good heat dissipation

Light cover is made of light diffusion PC, soft and even light

Famous brand LED chip and driver, stable performance

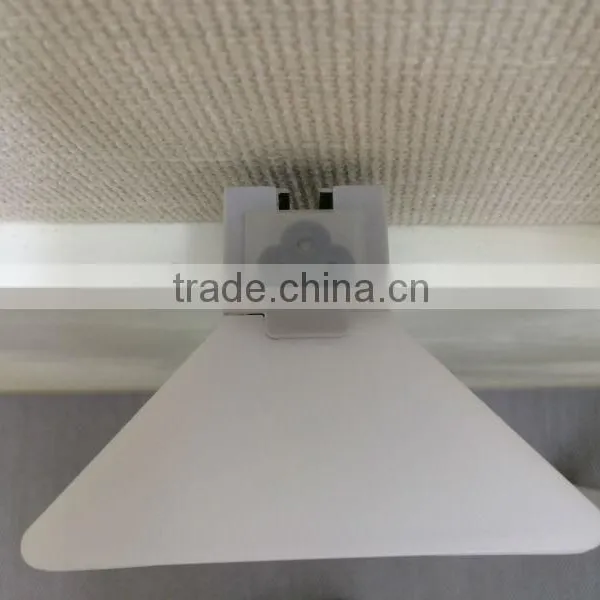

Ceiling-mounted installation, no dark areas in serie

	JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD.
Document ID	Product Specification				Version	1.03
Compile Date					Page	1/1
Pho T o		Category		Item	Specifications
		Basic info.	Name		Luminous trapezoid tube
			Model		LLS3704 A14
			Product code		CR080014A8U-N0CWSG4D101
			Specification		AC220V 50Hz 14W
			Size		L 879 x W100 x H69 mm
			Installation method		Ceiling-mounted
			Ambient temperature		-10~40℃@20~85%
			Angle adjustable		NA
			IP grade		IP20
			Rated lifespan		≥30000H
dimensions		Standard	Executive Standard		GB7000.1-2007
			certification		CCC
		Main part materials	Lamp material		Aluminum
			Radiator unit		PCB board +aluminum lamp body
			Ottica		Light diffusion PC(milky white)
			Installation component		Install buckle
			Color		alumina
CPD		Lamp house parameters	Beam angle		140°
			Luminous flux		1200±120LM
			CCT		6000±500K
			CRI		Ra≥70
		optical parameters	Brand		Epistar
			Lamp type		SMD 3014
			Specification		0.1W ,132pcs 8W
Attachment		Electric parameters	Brand		TIWIN
			Name		built-in LED lighting drive
			Specification		output: 14W,72mA, comstant current drive
		packing	Inner box		K3A three layer, L915 x W135 x H105mm
			Carton		A=B five layer L923 x W452 x H435mm
			Enclosure		Installation instructions
			Package		12 inner boxes per carton
