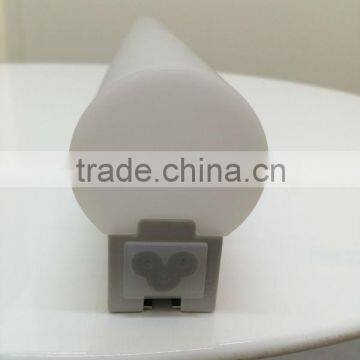

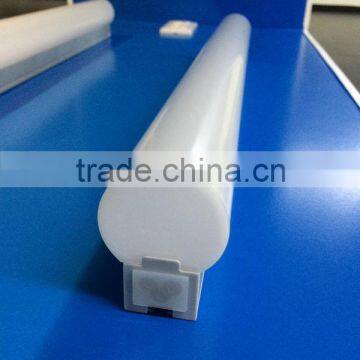

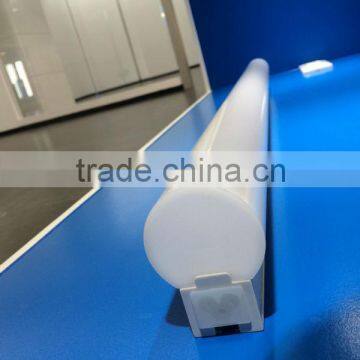

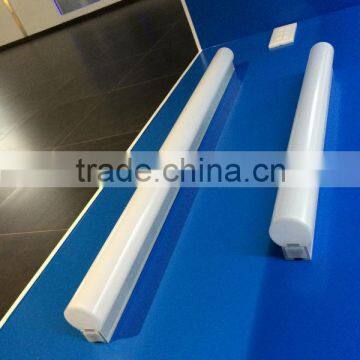

TIWIN 18W LED Round Batten Tube

Name: TIWIN 18W LED Round Batten Tube
Brand: TIWIN
SKU: 123722747
Availability: InStock

Jiangsu Tianying Opto-Electronics Technology Company Limited

Negotiable MOQ: 25 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

TIWIN

Model Number:

CR020018A8U-N065SG4D101

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name TIWIN

Model Number CR020018A8U-N065SG4D101

Specifications

18W/Edision/6500K/120 degree/Internal Driver/220VAC/Silver Grey/L1117 X W32 X H45

Luminous round tube

According to aluminum ceiling round tube conceptual design, perfectly combined with the ceiling.

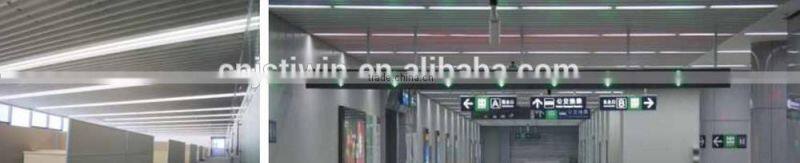

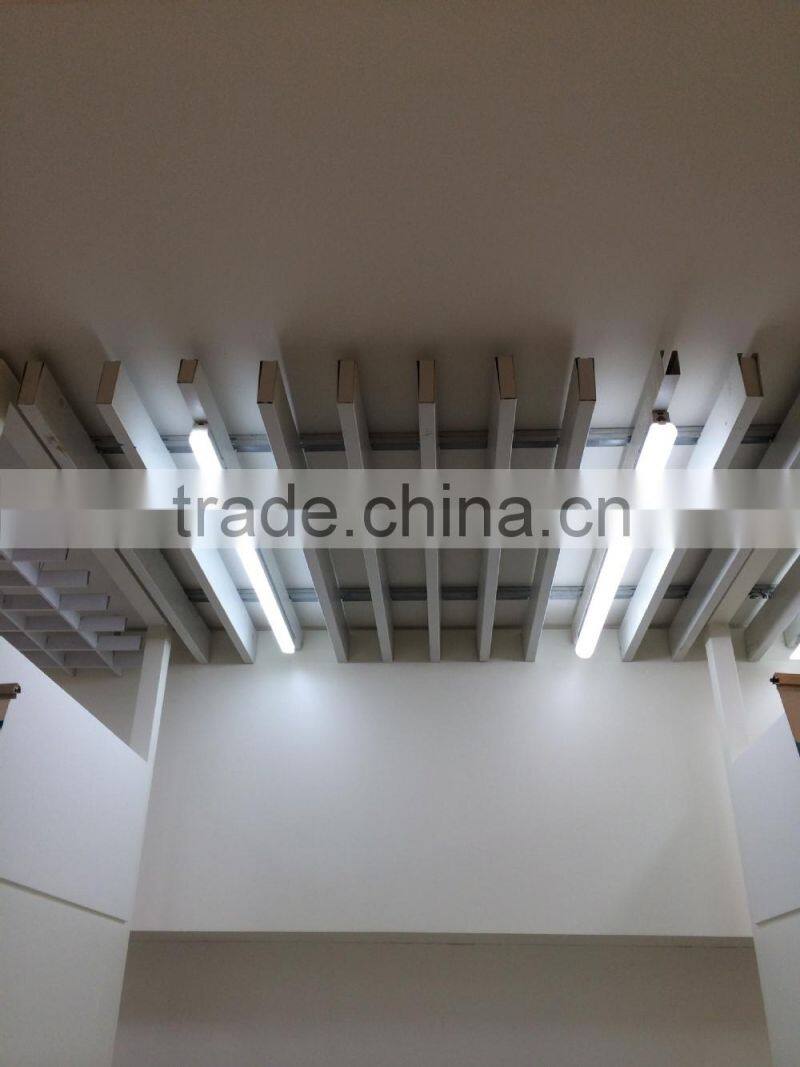

Applications: modern offices, commercial places, train and subway tunnels, etc.

2-years warranty

Features

According to aluminum ceiling round tube conceptual design, perfectly combined with the ceiling

High-quality aluminum light body, good heat dissipation

Lamp cover is made of light diffusion PC, soft and even light

CREE/CITILED brand LED chip and driver, stable performance

Variety of installation mode, no dark areas in series

	JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD.
Document ID	Product Specification				Version	1.01
Compile Date					Page	1/1
Pho t o		Category	Item	Specifications
		Lamp Info.	Name	Luminous round tube
			Model	LLS3703 A18
			Product code	CR020018A8U-N065SG4D101
			Product specification	AC220V 50Hz 18W
			Size	L1177 x Φ52 x H70 mm
			Installation method	Ceiling-mounted
			ambient temperature	-10~40℃@20~85%
			Angle adjustment	No
			Control method	No
			Protection grade	IP20
			Rated lifespan	≥30000H
dimensions		standard	standard	GB7000.1-2007
			certification	CCC
		Major component	material	Aluminum Profiles
			Radiator component	PCB board + aluminum lamp body
			Ottica	Light diffusion PC(milky white)
			Installations component	Snap-in
			color	Alumina ecru
CPD		Optical parameters	Beam angle	140°
			Luminous flux	1600±160LM
			CCT	6000±500K
			CRI	Ra≥70
		Light source	Brand	Epistar
			Lamp type	SMD3014
			specification	0.1W ,180pcs84
attachment		Electric appliance	Brand	TIWIN
			name	Built-in LED driver
			specification	output:18W 90mA constant current drive
			IP	--
		Packing	Inner box size	K3A three layers L1270 x W80 x H62mm
			Carton size	A=B five layers L1290 x W420 x H330mm
			weight(Kg)	N.W =0.65 kg
			enclosure	Installation instructions
			packing	25pcs inner boxes per carton
