Specifications
Heat Plate Three Working Position Brazing Machine1.stable operation
2.precise control
3.easy operation and high rate.

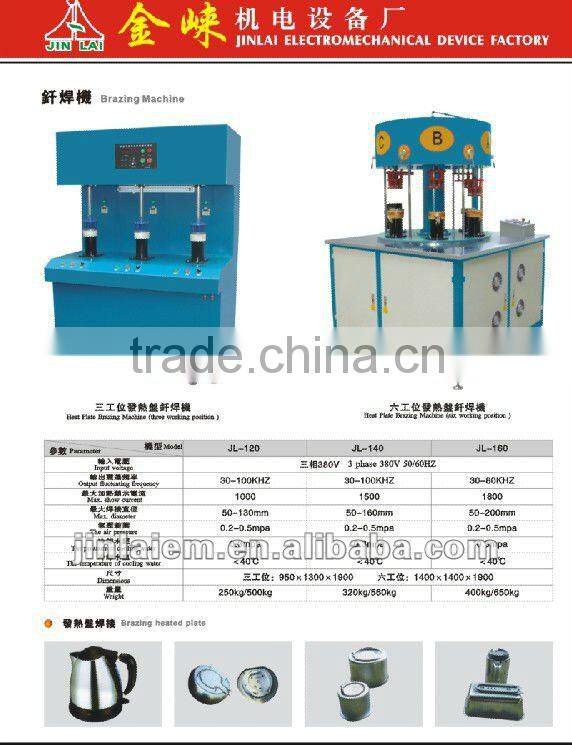

Heat Plate Three Working Position Brazing Machine
Main characteristics:
-Brazing Machine uses the high power IGBT high frequency machine to provide heating power and the pneumatic system as the drive.
-It has such features as stable operation, precise control, easy operation and high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.

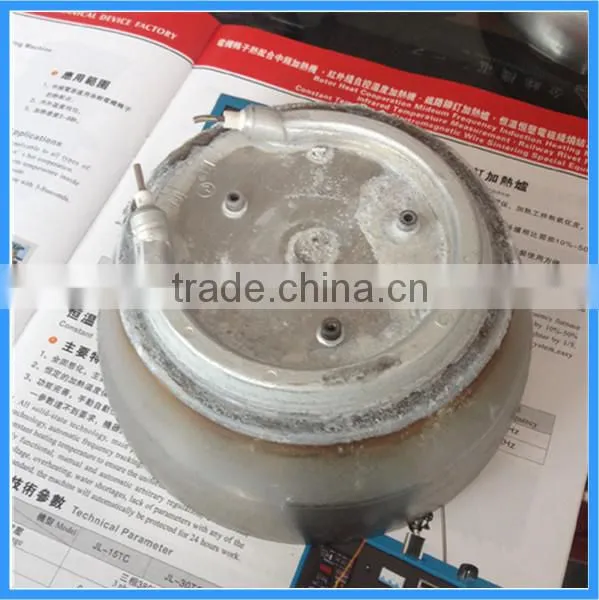

-It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, aluminum sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.
Specifications:
Model |
JL-120 |
JL-140 |
JL-160 |
The input voltage |
3 phases 380V 50/60HZ |
||
The output fluctuating power |
30-100KHZ |
30-100KHZ |
30-80KHZ |
The show current |
1000A |
1500A |
1800A |
The max diameter |
50-130mm |
50-160mm |
50-200mm |
The air pressure |
0.2-0.5mpa |
0.2-0.5mpa |
0.2-0.5mpa |
The voltage of cooling water |
0.3mpa |
0.3mpa |
0.3mpa |
The temperature of cooling water |
< 40º C |
< 40º C |
< 40º C |
Dimensions |
Three working position 950x1300x1900 Six working position 1400x1400x1900 |
||
Weight |
250kg/500kg |
320kg/560kg |
400kg/650kg |
