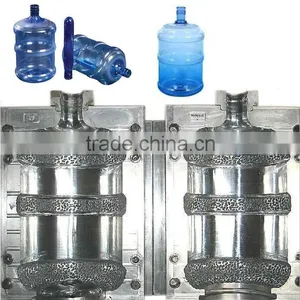

Huangyan Plastic Big bottle mold

Specifications

Big bottle mold description
1.Material:P20/3CR13/718/2316
2.Size:all kin of sizes
3.Runner:cold/hot
4.Good quality

Huangyanplastic big bottle mold description



We are Xiong yi specialized in making molding more than20 years, If you need more information,contact me by Email or Skype.



Skype:zhu.rong.jun



Gerneral mold specifications:



1.Name: big bottle mold



2.Steel of mould cavity&core :P20/718/2316/3CR13 etc



3.Steel of mould base :45#,50#,P20,etc



4.Nos of cavity:customized or according to the customers' requirement



5.Hardness of cavity&core:30-33HRC



6.Hardness of wear parts :30-33HRC



7.Core pulling system:motor /oil cylinder/stripping plate,angel,pin etc



8.Mould Accessories:DME/HASCO standard



9:Manufacture Process:Drawing/sample/product data --Agreement comment--Hand made sample--Design comment--Material purchase and Give product instuction--Material inspection and Mould design--Electrode process and Prorm--CNC,wire cut,EDM--Quality inspection--Finish machining cavity,core,jiggle pin--Quality inspectio--Match the moulds--Quality inspection--polishing--Quality innspection--Cautery veins,plate and Nitrification--Quality inspection--Moulds assembly --Quality inspetion --Try mould--Client approbate--Consignation/maufacture



10 Machining center: CNC milling machine -NC wire cutting -NC-EDM and so on



11 Mould life time:500000-1000000 shots,or according to the material of steel



12.Down payment:Usually 40%before we start working



13.R and D:We offer customers the drawings for products and mould structure



14.Confirmation:We send the drawings to cusomer to confirm and the customers give us some suggestions



15.Testing :Testing the mould to make sure everything is ok



16.Lead time:30-45days



17.Imported Steel ensured the  long service life of the moulds



18.Rowerful cooling system ensured the product forming speed



19.Advanced computer simulation technology is adoped to analyze mould runner designing



20.Advanced High-precision equipments,High-class R&D team,and strict quality control managment ensured ensured the mould quality



                                                                         Manufacturing     Process



1.Quote	According to sample, drawings and size, Providing a reasonable price
↓
2.Discussion	Mold material, cavity number, price, runner, payment and delivery time
↓
3.S/C Signature	Approval for all the items
↓
4. Advance	Pay 40% by T/T advanced
↓
5.Product Design Checking	We check the product design. If some position is not perfect, or can not be done on the mould, we will send customer the report.
↓
5.Mould Design	We make mould design on the basis of confirmed product design, and send to customer for confirmation.
↓
6.Mold Tooling	We start to make mold after mold design confirmed
↓
7.Mold Processing	Send report to customer once each week
↓
8.Mold Testing	Send trial samples and try-out report to customer for confirmation
↓
9. Mold Modification	According to customer’s feedback
↓
10.Balance settlement	60% by T/T after the customer approved the trial sample before shipment
↓
11.Delivery	Delivery by sea or air. The forwarder can be designated by your side.
