Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Special Medium Frequency Induction Furnace Rectifier Transformer

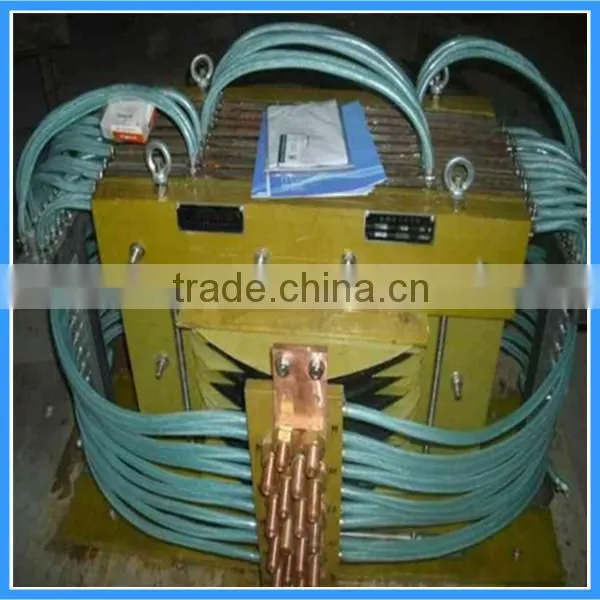

Special Medium Frequency Induction Furnace Rectifier Transformer
US$ 1,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Jinlai
Model Number:
JL
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Special Rectifier Transformer Of Medium Frequency Induction FurnaceUS$ 1,000 - 100,000MOQ: 1 Set -
Medium Frequency Universal Vertical Quenching MachineUS$ 1,000 - 100,000MOQ: 1 Set
-
Hot-sale Induction Brazing Machine For TV Branch Distributor In TaiwanUS$ 100 - 10,000MOQ: 1 Set
-
Integration Branch Distributor Welding MachineUS$ 100 - 10,000MOQ: 1 Set
-
Induction Melting Furnace With Cooling TowerUS$ 100 - 10,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Jinlai
Model Number
JL
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Special Medium Frequency Induction Furnace Rectifier Transformer1.high efficiency
2.high overload ability
Special Medium Frequency Induction Furnace Rectifier Transformer
Product Description
Overview & Application
Electric furnace transformer is refers to the power transformer of industrial furnace melting , it is a special transformer which is designed according to the working characteristic and operation mode of medium frequency electric furnace.
Feature
- outstanding characteristic: designed according to the national industry standards and the different electric furnace process, energy saving, environmental protection, prevent harmonic, no fever, resistance to short-circuit, high overload ability.
- Compared with the conventional transformer with the same capacity, melting time shortened about 20%, tons of power consumption dropped about 70 degrees.It can saving electricity about 210000 degrees each year as Annual output calculated at 3000 tons
- The special transformer is suitable for the medium frequency furnace which capacity is below 30 tons . High side voltage is 10 kv and 35 kv. low side voltage is divided into: 400 v, 660 v, 750 v, 850 v, 950 v, 1000 v, 1100 v, 1250 v and 1500 v.It has two structure: with electric reactor and without electric reactor, and also has large impedance and small impedance to meet the needs of the use
Main Technical Parameters:
| model | voltage on line side(KW) | direct power parameters | ||||
| rectifier system | floating voltage (V) |
working current (A) |
equal No. of phase |
join group lable | ||
| ZPS-630/10 | 10 | three-phase bridge | 540 | 1114 | 6 | D/yn11 |
| ZPS-800/10 | 10 | three-phase bridge | 540 | 1415 | 6 | D/yn11 |
| ZPS-1000/10 | 10 | double three-phase bridge | 776 | 1230 | 6 | D/yn11 |
| ZPS-1250/10 | 10 | double three-phase bridge | 776 | 1570 | 12 | D/do-yn11 |
| ZPS-1500/10 | 10 | double three-phase bridge | 776 | 1846 | 12 | D/do-yn11 |
| ZPS-1800/10 | 10 | double three-phase bridge | 776 | 2215 | 12 | Y/d11-yn0 |
| ZPS-2000/10 | 10 | double three-phase bridge | 776 | 2460 | 12 | D/do-yn11 |
| ZPS-2500/10 | 10 | double three-phase bridge | 776 | 3076 | 12 | D/do-yn11 |
| ZPS-3000/10 | 10 | double three-phase bridge | 891 | 3216 | 12 | D/do-yn11 |
| ZPS-3600/10 | 10 | double three-phase bridge | 891 | 3860 | 12 | Y/d11-yn0 |
| ZPS-5000/10 | 10 | double three-phase bridge | 891 | 5400 | 12 | D/do-yn11 |
| ZPS-7000/10 | 35 | double three-phase bridge | 1050 | 4720 | 12 | Y/d11-yn0 |
| ZPS-8000/10 | 35 | double three-phase bridge | 1050 | 5394 | 12 | Y/d11-yn0 |
