1 ton Scrap Iron Hydraulic Melting FurnaceEasy overturn body,available for selection of electric,manual,hydraulic or other o

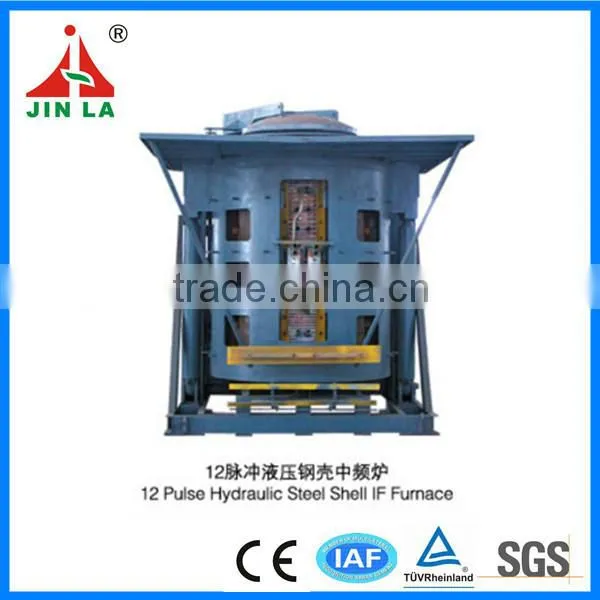

1 Ton Scrap Iron Hydraulic Melting Furnace
1. Overview:
Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting. Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper, zinc, tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
2. Performance Characteristics:
1. Zero-voltage scanning soft, available for start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost , low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.
3.1T Technical Parameters
IF melting furnace |
Melting Rate |
Ton |
1 |
|||
Max Working Temperature |
°C |
1600 |
||||
Melting Furnace |
Minutes |
60 |
||||
Cooling Water |
Flow Rate |
T/H |
120 |
|||
Pressure |
Mpa |
0.2 |
||||
Input water temperature |
°C |
40 |
||||
Temperature Rise |
°C |
20 |
||||
Voltage |
V |
750 |
||||
Power consumption of per ton |
KW/T |
560 |
||||
Tilting |
Hydraulic |
|||||
| ||||||
IF Power Supply |
Power Range |
KW |
450 |
|||
Input Voltage |
V |
380 |
||||
Max Input Current |
A |
700 |
||||
Rectifier Pulse |
Pulse |
6 |
||||
Cooling Water |
Flow Rate |
T/H |
15-20 |
|||
Pressure |
Mpa |
0.15MPa≤P≤0.25 Mpa |
||||
Input Water Temperature |
°C |
35 |
||||
Temperature Rise |
°C |
15 |
||||
IF Voltage |
V |
750 |
||||
IF Frequency |
KHZ |
0.7-1 |
||||
Remark: melting time and power consumption/ton is important to equipment power, raw material shape and weight, operator's skill level and other elements
4. 1T IF furnace equipment list
Equipment Name |
Specification |
QTY |
|
IF Power Supply |
IF power supply cabinet(6pulse) |
KGPS-450/1 |
1set |
|
Electric Capacitor Cabinet |
RFM-4000 |
1set |
|
Thyristor |
Kk1000A |
4pcs |
|
KP1000A |
6pcs |
||
Internal Water Circulating System |
/ |
1pcs |
|
Heat Exchanger |
/ |
1pcs |
|
Cable |
300 M2 |
2pcs |
|
| |||
IF Furnace Body |
Furnace Body |
Steel Shell Hydraulic |
1 |
GW-1/1 | |||
Water-cooled Cable |
300M2 |
2pcs |
|
| |||
Hydraulic System |
Hydraulic Stand |
20.5KW |
1set |
Tilting Operate Stand |
Double Bar |
1set |
|
Tilting oil cylinder |
170 |
4pcs |
|
