Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Big Iron Rod Induction Forging Furnace

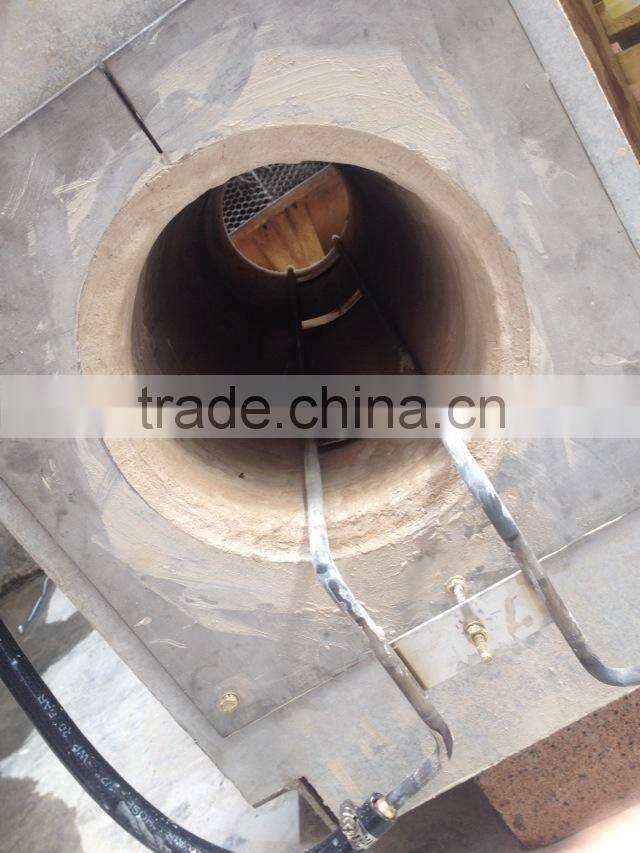

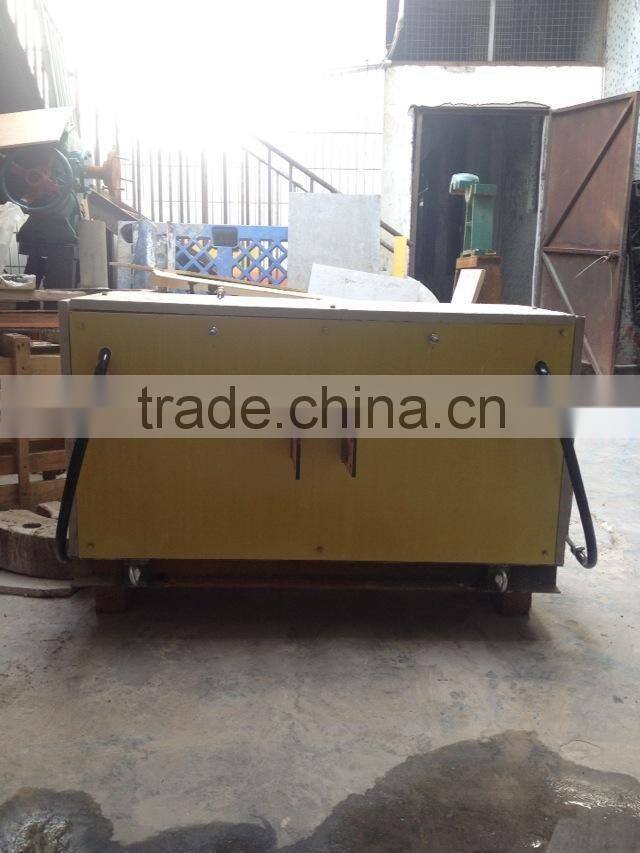

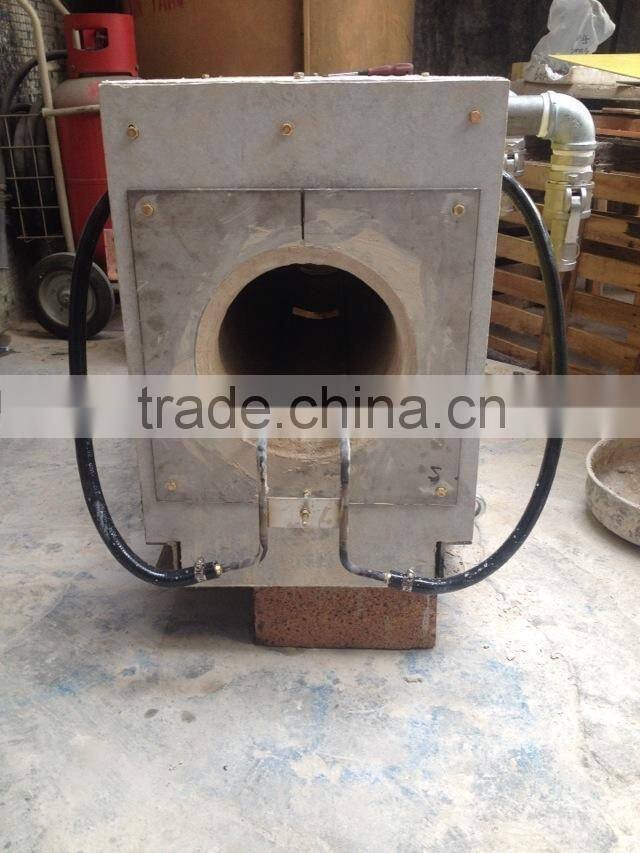

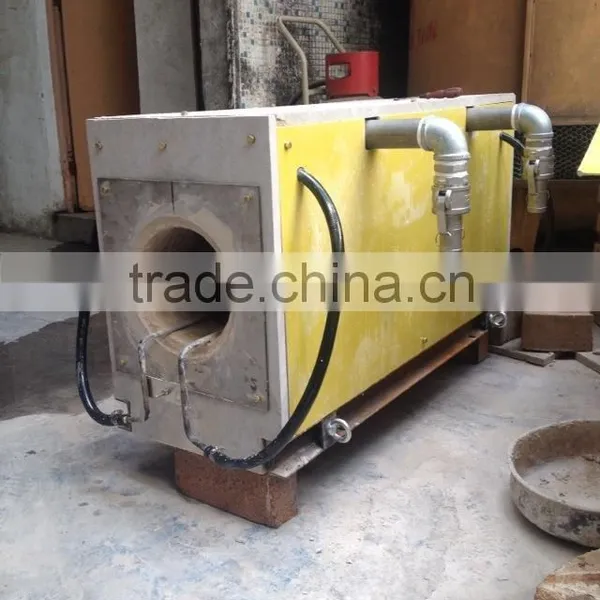

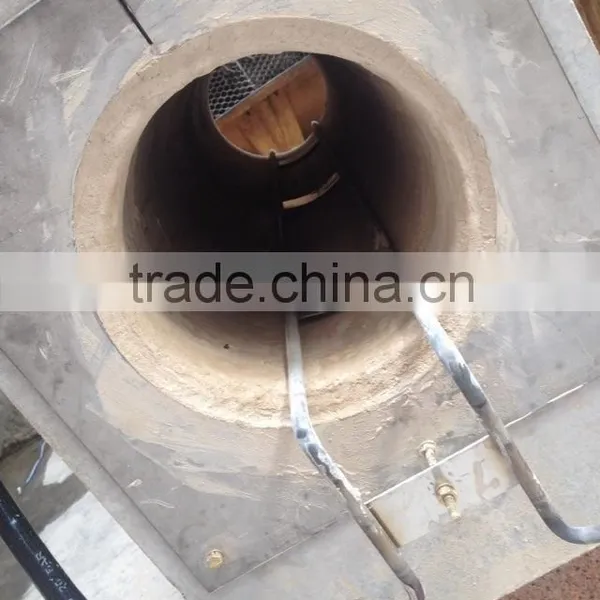

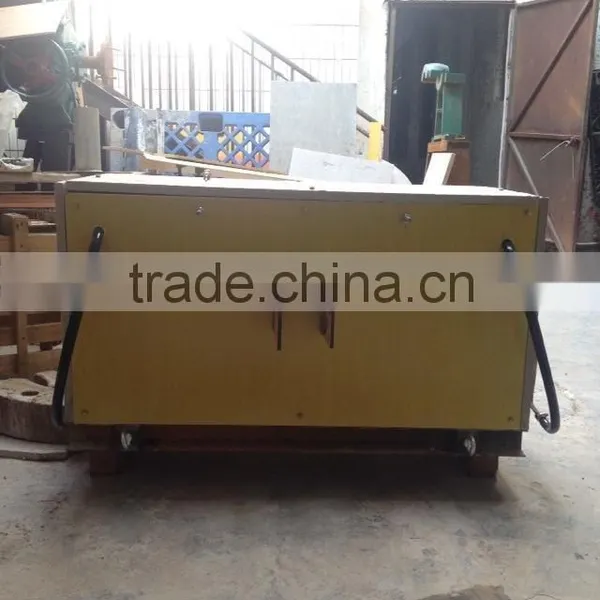

Big Iron Rod Induction Forging Furnace

Name: Big Iron Rod Induction Forging Furnace
Brand: Jinlai
SKU: 123718563
Availability: InStock

Big Iron Rod Induction Forging Furnace thumbnail-1

Big Iron Rod Induction Forging Furnace thumbnail-2

Big Iron Rod Induction Forging Furnace thumbnail-3

Big Iron Rod Induction Forging Furnace thumbnail-4

Big Iron Rod Induction Forging Furnace photo-1

Big Iron Rod Induction Forging Furnace photo-2

Big Iron Rod Induction Forging Furnace photo-3

Big Iron Rod Induction Forging Furnace photo-4

US$ 1,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Induction Furnace

Usage:

Melting Furnace

Contact Supplier Request Quote Chat Now

Dongguan Jinlai Electromechanical Device Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Induction Furnace

Usage Melting Furnace

Place of Origin Guangdong, China

Brand Name Jinlai

Model Number JL-KGPS

Certification ISO9001:2008, SGS,CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Big Iron Rod Induction Forging Furnace
1.high efficiency
2.easy operation, safety;
3.energy saving

Big Iron Rod Induction Forging Furnace

Product Description

Main feature:

1. Medium frequency power supply using full digital control system with standardization core control panel. interchangeable between all devices, Easy maintenance because it’s interchangeable between all devices. All equipment is equipped with unified standby panel, when there was a soft fault equipment, only need to replace the standby board to recover normal use, which will not affect production.

2.All chips adopt imported components, so the control system has good stability and low failure rate.

3.Has computer interface design, can implement computer control according to the need.

3.Has temperature closed-loop interface design, can to add temperature closed-loop instrument according to the need

4.100% startup reliability (whether no-load and full load).

Main Technical Parameter:

Medium Frequency Diathermy Equipment
Model NO	Input power(50/60HZ)							Water consumption /hour (ton)	Power consumption (KW/H)	Workpiece diameter (mm)	Efficiency (T/H)
Model NO	power (KW)	Input voltage (V)	Current (A)	Direct current (A)	Direct voltage (V)	MF voltage (V)	MF frequency (KHZ)	Water consumption /hour (ton)	Power consumption (KW/H)	Workpiece diameter (mm)	Efficiency (T/H)
JL-KGPS--50	50	380	80	100	500	750	2-4	2-10	450	10-30	0.12
JL-KGPS--100	100	380	160	200	500	750	2-4	2-10	450	20-50	0.25
JL-KGPS--160	160	380	256	320	500	750	2-4	2-10	430	25-70	0.4
JL-KGPS--200	200	380	320	400	500	750	2-4	2-10	430	30-100	0.52
JL-KGPS--300	300	380	480	600	500	750	2-4	2-10	420	50-150	0.83
JL-KGPS--400	400	380	640	800	500	750	2-4	2-10	400	60-200	1.15
JL-KGPS--500	500	380	800	1000	500	750	1-2.5	5-15	390	70-230	1.47
JL-KGPS-600	600	380	960	1200	500	750	1-2.5	5-15	390	70-270	1.76
JL-KGPS--800	800	380	1280	1600	500	750	0.7-1	10-20	370	80-300	2.4
JL-KGPS--1000	1000	380	1600	2000	500	750	0.7-1	10-20	370	100-350	2.95
JL-KGPS--1200	1200	380	1920	2400	500	750	0.7-1	10-20	380	120-380	3.2
JL-KGPS--1200	1200	720	1010	1260	950	1650	0.7-1	10-20	380	120-380	3.2
JL-KGPS--1500	1500	720	1263	1578	950	1200	0.5-1	15-25	360	120-380	3.7
JL-KGPS--1500	1500	950	960	1200	1200	1650	0.5-1	15-25	360	120-380	3.7
JL-KGPS--2000	2000	720	1684	2105	950	1200	0.5-1	20-30	330	120-380	4.3
JL-KGPS--2000	2000	950	1280	1600	1200	1650	0.5-1	20-30	330	120-380	4.3
JL-KGPS--2500	2500	720	2150	2630	950	1200	0.3-0.7	25-35	330	120-380	5
JL-KGPS--2500	2500	950	1600	2000	1200	1650	0.3-0.7	25-35	330	120-380	5
JL-KGPS--3500	3500						0.2-0.5	25-35	330	120-380	5.8
JL-KGPS--3500	3500	1000	1825	2280	1315	1650	0.2-0.5	25-35	330	120-380	5.8
Furnace temperture :1.steel 1250°C 2.iron1150°C copper 850 °C 4.brass 650 °C 5. aluminum500 °C
