Help CenterIntellight CNC Cutting Machine Center/processing Center for Aluninum Profile Any Angle Cutting
Related Products
-
Intellight CNC Cutting and Milling Machining Center/processing Center for Aluninum Profile Any Angle CuttingUS$ 150,000 - 180,000MOQ: 1 Set -
High Efficiency CNC Processing Cutting Center for Aluminum ProfilesUS$ 190,000 - 220,000MOQ: 1 Set
-
LJRJ-CNC-500*6000 Intelligent CNC Cutting Center for Southeast AsiaUS$ 160,000 - 220,000MOQ: 1 Set
-
Upvc Windows Making MachineNegotiableMOQ: 1 Set
-
Window Cleaning MachineNegotiableMOQ: 1 Set
CNC Cutting Machine Center
Advantage
1. One Time 8 Profiles On the feeding platform
2.Auto Feed
3.Any Angle Cut between 45° to 90°
4.NC Rotary Table Assure Steady and High Precision cut
5. Max.cutting length 6000mm
6. Any Angle for both ends between 45° and 90°
7. Robot Hand for auto discharge
8.Vacuum Scrap Collector
9.Germany AKE Saw Blade
10.Mitsubish CNC System
Main Specifications:
Max Cut Section 45°: 200*115mm
Max Cut Section 90°: 200*135mm
Cutting Accuracy: +-0.1mm
Blades Swing Scope: +-45°
Feeding Platform profile quantity: 6 pieces
Max length profiles: 6000m
Diameter of cutting saw blades: Φ500mm
Main shaft motor of saw blades: 2.2KW 2840r/min
Stroke of feeding handles: 6800mm
Stroke of discharge handles:1000mm
The working speed of transiting and discharging handles: 50m/min
Vertical working speed of saw blades: 0 — 15m/min
Air Source : 0.5 - 0.8 Mpa
Voltage: 380V/50HZ
Total Power: about 12KW
Lubrication and Cool Spray : Automatic
Dimension of production line: 12100x3200x1960mm
Dimension of Vacuum Collector : 1500 x 800mm
Machine Weight: About 5000Kg

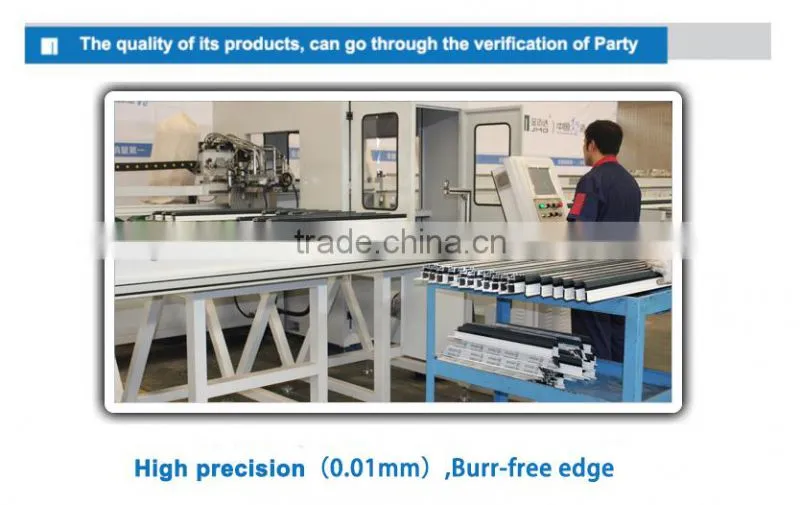

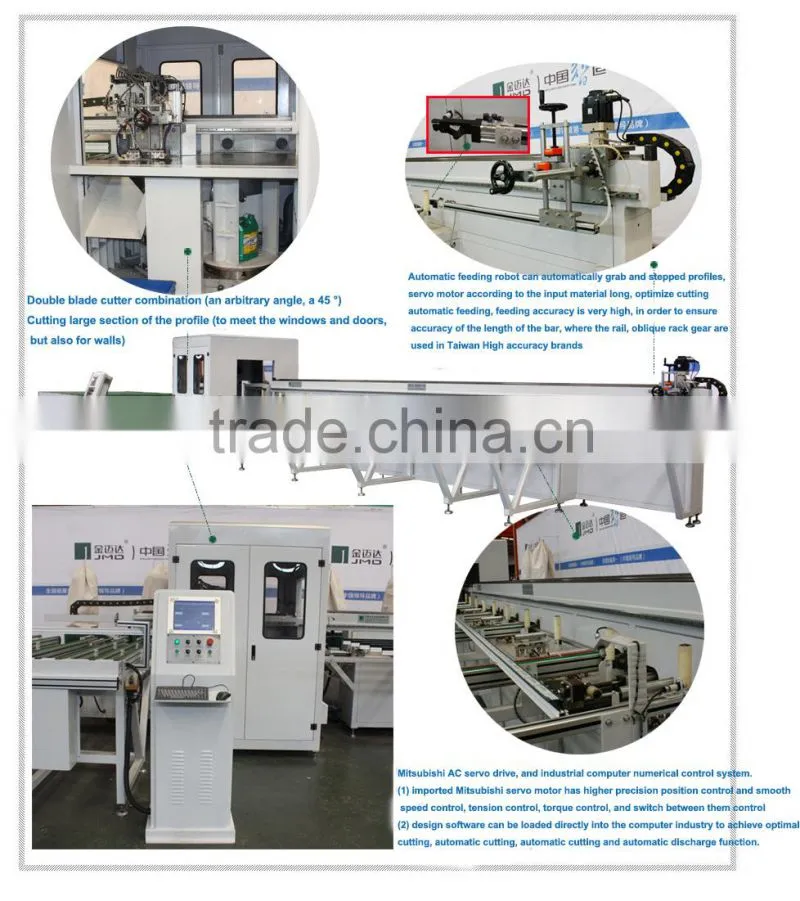

Pictures of this line
Mitsubishi CNC Control
Automatic Feeding Platform and Feeding Hand
CNC Rotary Table For Precision Any angle cut
Discharging Robot Hand
Details:
5.After-Sale Services:
