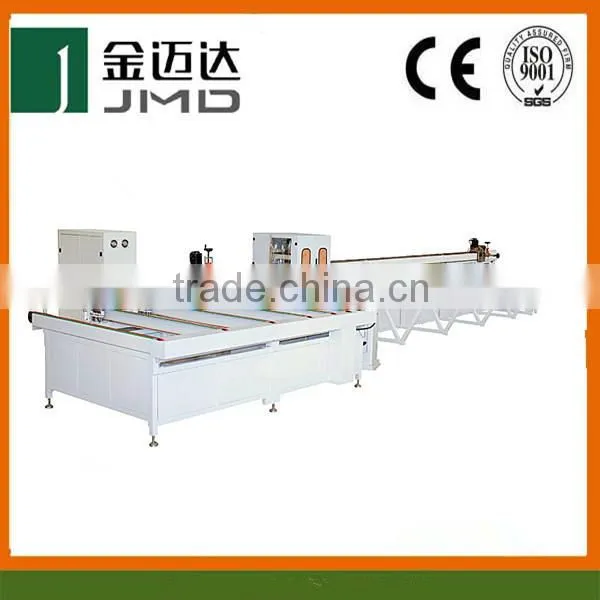

LJRJ-CNC-500*6000 Intelligent CNC cutting center for southeast asia
Advantage
1. One Time 6 Profile On
2.Auto Feed
3.Any Angle Cut between -45° to +45°
4.NC Rotary Table Assure Steady and High Precision cut
5. No Cut Length Limit
6. Any Angle for both ends
7. Robot Hand for auto discharge
8.Vacuum Scrap Collector
9.Germany AKE Saw Blade
10.Mitsubish CNC System

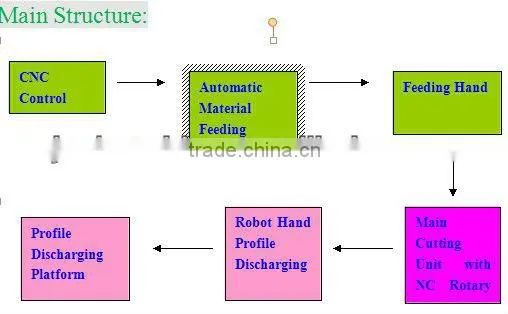

Pictures of this line

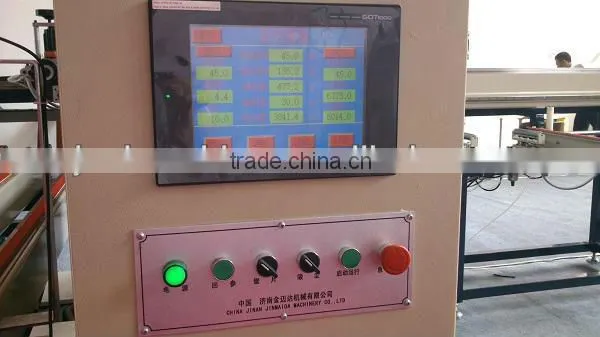

Mitsubishi CNC Control

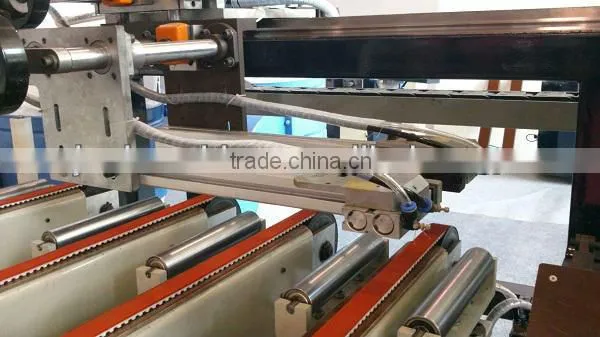

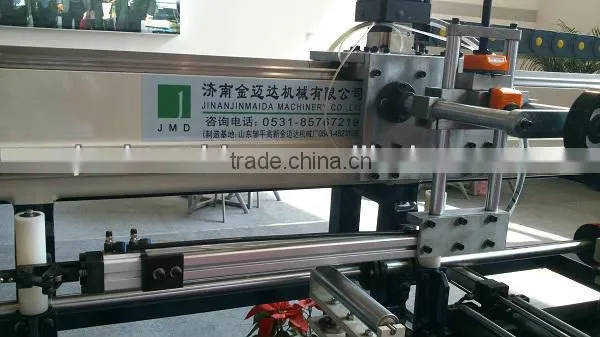

Automatic Feeding Platform and Feeding Hand

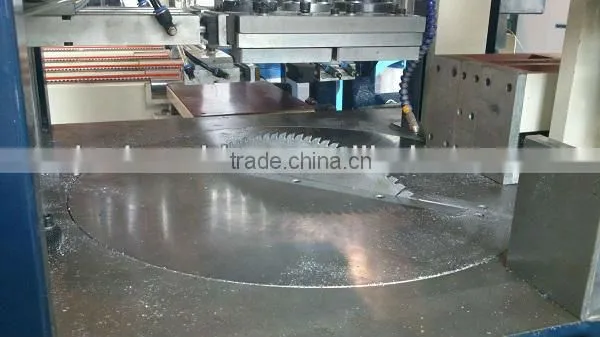

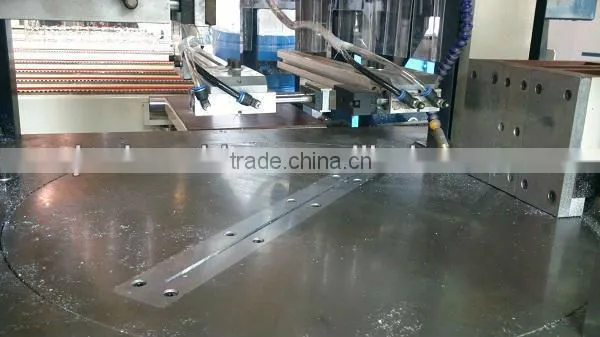

CNC Rotary Table For Precision Any angle cut

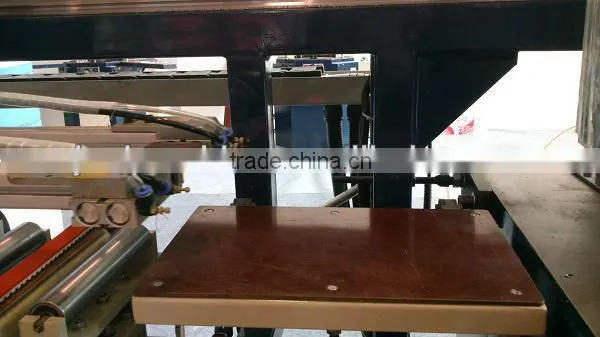

Discharging Robot Hand
Main Specifications:
Max Cut Section 45°: 200*115mm
Max Cut Section 90°: 200*135mm
Cutting Accuracy: +-0.1mm
Blades Swing Scope: +-45°
Feeding Platform profile quantity: 6 pieces
Max length profiles: 6000m
Diameter of cutting saw blades: Φ500mm
Main shaft motor of saw blades: 2.2KW 2840r/min
Stroke of feeding handles: 6800mm
Stroke of discharge handles:1000mm
The working speed of transiting and discharging handles: 50m/min
Vertical working speed of saw blades: 0 — 15m/min
Air Source : 0.5 - 0.8 Mpa
Voltage: 380V/50HZ
Total Power: about 12KW
Lubrication and Cool Spray : Automatic
Dimension of production line: 12100x3200x1960mm
Dimension of Vacuum Collector : 1500 x 800mm
Machine Weight: About 5000Kg
5.After-Sale Services:
