Help CenterCNC Bus Bar Saw
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Euro-Asia/Gaoji
Model Number:
GJCNC-BSM
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
Euro-Asia/Gaoji
Model Number
GJCNC-BSM
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

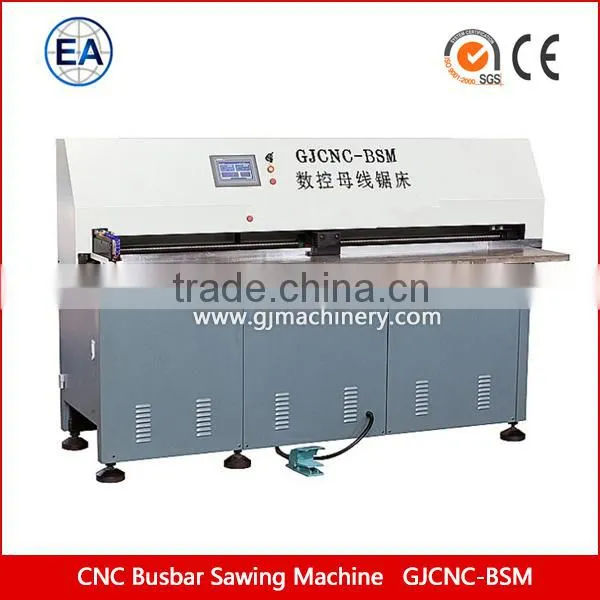

CNC Bus Bar Saw1.Approved by CE and ISO2008
2.High speed disk type alloy saw blades.
3.precision and fast efficiency
CNC Busbar Saw is a self-developed equipment for quickly cutting busbar.
1. This machine with high degree of vertical shearing ends, no collapse edge, reducing waste etc.
2. This machine equipped with automatic positioning device, stroke 2000mm.
3. This machine has high speed disk type alloy saw blades.
4. This positioning system adopts high accurate ball screw transmission and straight guide to guarantee high precision and fast efficiency.The adopted component is world-famous,with long service and good quality.
Main Technical Parameter
Cutting Section
Rotational Speed Of Blades:2800r/min
Motor Power:3Kw
Feeding Section
Stroke of X-axis:2000mm
Servo Power:1.5Kw
Max Speed of Location:48mm/min
Saw Blade Diamete:405mm
Min Allowable Length of Plate:40mm
Max Allowable Plate(WidthxThickness):200x20mm
Min Allowable Plate(WidthxThickness):30x3mm
Air Pressure:0.5-0.9Mpa
Voltage Total Power:5Kw
Host Outside Dimension:2480x750mm
Total Weight: 1000Kg
1. This machine with high degree of vertical shearing ends, no collapse edge, reducing waste etc.
2. This machine equipped with automatic positioning device, stroke 2000mm.
3. This machine has high speed disk type alloy saw blades.
4. This positioning system adopts high accurate ball screw transmission and straight guide to guarantee high precision and fast efficiency.The adopted component is world-famous,with long service and good quality.
Main Technical Parameter
Cutting Section
Rotational Speed Of Blades:2800r/min
Motor Power:3Kw
Feeding Section
Stroke of X-axis:2000mm
Servo Power:1.5Kw
Max Speed of Location:48mm/min
Saw Blade Diamete:405mm
Min Allowable Length of Plate:40mm
Max Allowable Plate(WidthxThickness):200x20mm
Min Allowable Plate(WidthxThickness):30x3mm
Air Pressure:0.5-0.9Mpa
Voltage Total Power:5Kw
Host Outside Dimension:2480x750mm
Total Weight: 1000Kg
