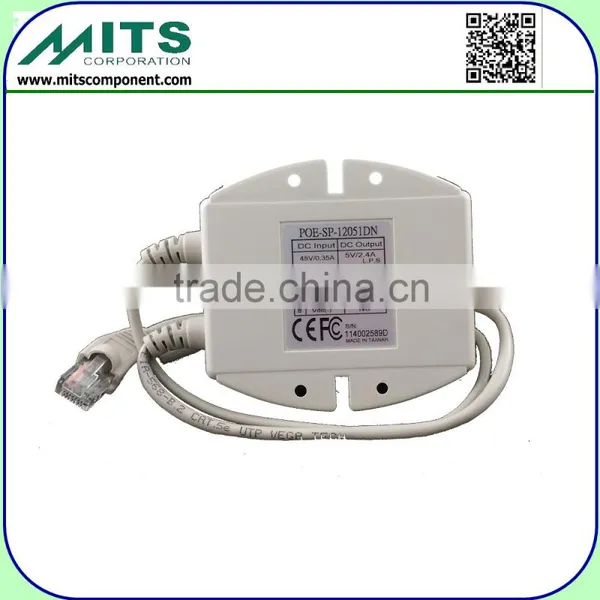

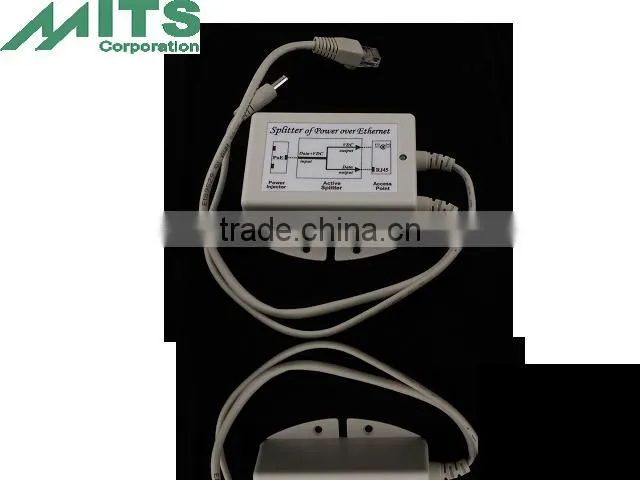

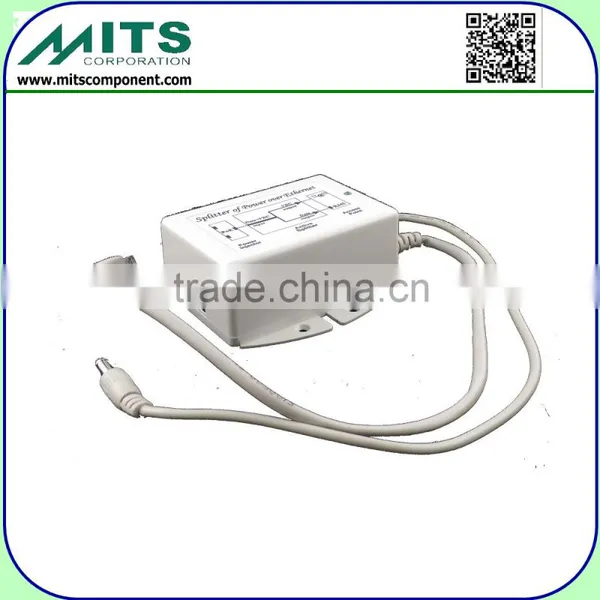

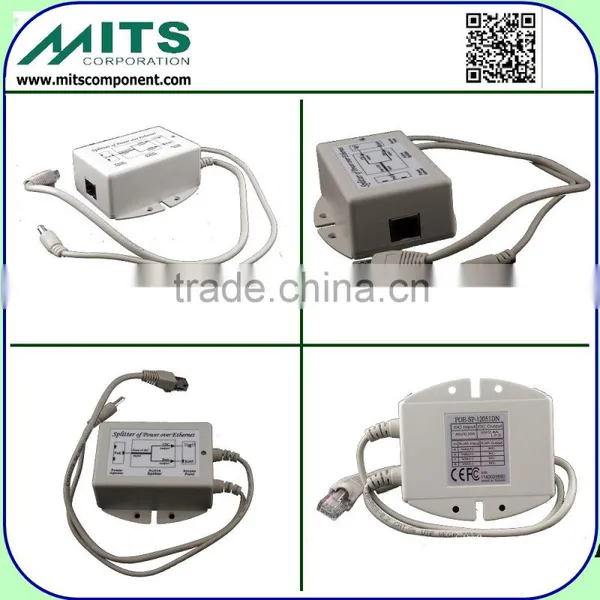

Part number: POE-SP-12121DN
Description: 12W/12V output, 2.1 / 5.5mm DC plug on
Application
- IP Phone
- IP Camera
- Access Point
- Door Security
- Security CAM
- Network terminals which require power under 12W.

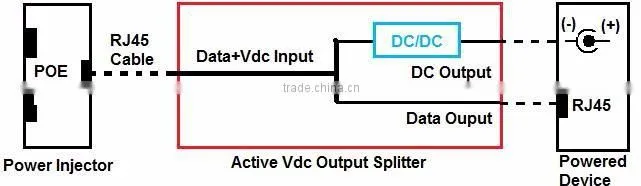

PSE feeds power via Spare pairs
|
RJ-45 Input (Data & Power) |
RJ-45 Output (Data Only) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
Rx+ |
Data Receive |
Rx+ |
Data Receive |
2 |
Rx- |
Data Receive |
Rx- |
Data Receive |
3 |
Tx+ |
Data Transmit |
Tx+ |
Data Transmit |
4 |
Vin +/- |
Feeding power(±) |
NC |
Not Connected |
5 |
Vin +/- |
Feeding power(±) |
NC |
Not Connected |
6 |
Tx- |
Data Transmit |
Tx- |
Data Transmit |
7 |
Vin +/- |
Feeding power(±) |
NC |
Not Connected |
8 |
Vin +/- |
Feeding power(±) |
NC |
Not Connected |
PSE feeds power via Data pairs
|
RJ-45 Input (Data & Power) |
RJ-45 Output (Data Only) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
Rx+ & Vin(±) |
Data Receive & Feeding power(±) |
Rx+ |
Data Receive |
2 |
Rx- & Vin(±) |
Data Receive & Feeding power(±) |
Rx- |
Data Receive |
3 |
Tx+ & Vin(±) |
Data Transmit & Feeding power(±) |
Tx+ |
Data Transmit |
4 |
NC |
Not Connected |
NC |
Not Connected |
5 |
NC |
Not Connected |
NC |
Not Connected |
6 |
Tx- & Vin(±) |
Data Transmit & Feeding power(±) |
Tx- |
Data Transmit |
7 |
NC |
Not Connected |
NC |
Not Connected |
8 |
NC |
Not Connected |
NC |
Not Connected |
>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
Mechanical & Dimension
Plastic Case Material |
PC |
|
Plastic Case Finish |
Texture |
|
Plastic Case Color |
Gray |
|
Plastic Case Dimension |
85 x 76 x 36 (L x W x H) mm |
|
Weight |
150g |
|

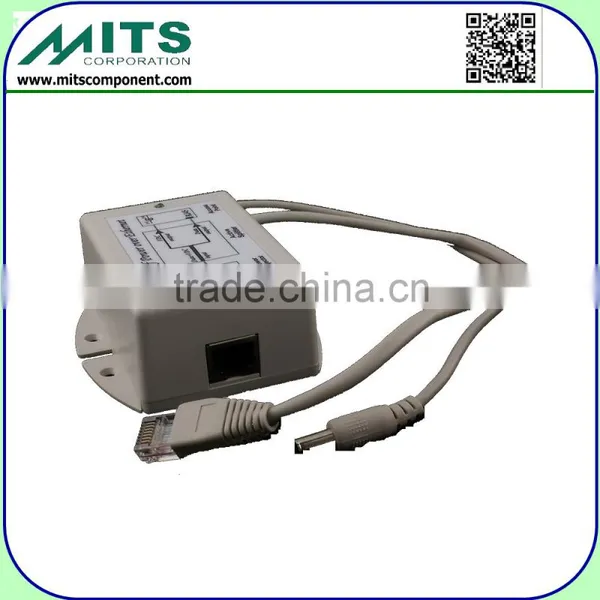

DC/AC Out Power Plug |
Diameter |
2.1 / 5.5mm or 2.5 / 5.5mm |
Length |
12 +/- 0.5mm. 180℃ angle |
|
Polarity |
Inside (+) / Outside (-) |
|

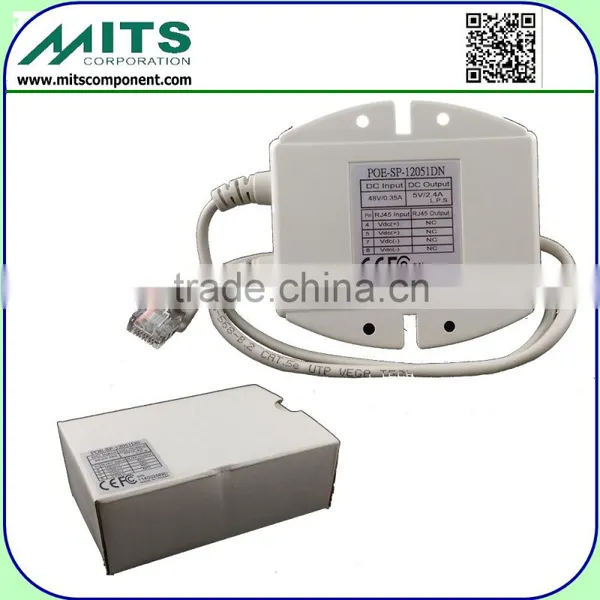

Package
Number of unit in one Carton |
100 |
Weight of Carton Volume |
N.W.:17Kg. G.W.:19Kg. 1.9Cuft. |
Dimension of Box |
120 x 85 x 40 (L x W x H) mm |
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.
Accept small, trial orders, and costomised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customizing product projects are welcome. Please feel free to contact us for product details.
