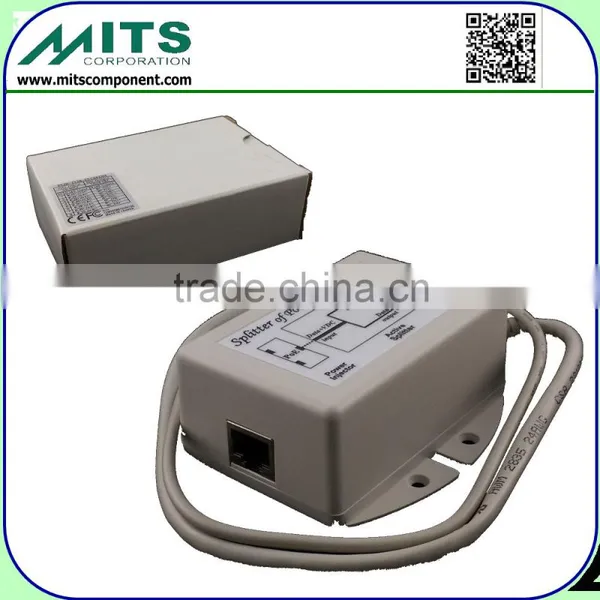

25W/12V, 2.5/5.5mm Gigabit PoE Splitter

Name: 25W/12V, 2.5/5.5mm Gigabit PoE Splitter
Brand: MITS
Price: USD $52 - 94 / Piece

FOB Price

USD $52 - $94 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port TPE

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Taiwan

Brand Name:

MITS

Model Number:

POE-TGS-25125DN

Product Description

Part number: POE-TGS-25125DN

Description: 25W/12V output, 2.5 / 5.5mm DC plug

Application

IP Phone
IP Camera
Access Point
Door Security
Security CAM
Network terminals which require power under 25W

PSE feeds power via Spare pairs

	RJ-45 Input (Data & Power)		RJ-45 Output (Data Only)
Pin	Symbol	Description	Symbol	Description
1	Rx+	Data Receive	Rx+	Data Receive
2	Rx-	Data Receive	Rx-	Data Receive
3	Tx+	Data Transmit	Tx+	Data Transmit
4	Vin +/-, Data	Feeding power(±), Data	Data	Data
5	Vin +/-, Data	Feeding power(±), Data	Data	Data
6	Vin +/-, Data	Data Transmit	Vin +/-, Data	Data Transmit
7	Vin +/-, Data	Feeding power(±), Data	Data	Data
8	Vin +/-, Data	Feeding power(±), Data	Data	Data

PSE feeds power via Data

	RJ-45 Input (Data & Power)		RJ-45 Input (Data & Power)
Pin	Symbol	Description	Symbol	Description
1	Rx+ & Vin(±)	Data Receive & Feeding power(±)	Rx+	Data Receive
2	Rx- & Vin(±)	Data Receive & Feeding power(±)	Rx-	Data Receive
3	Tx+ & Vin(±)	Data Transmit & Feeding power(±)	Tx+	Data Transmit
4	Data	Data	Data	Data
5	Data	Data	Data	Data
6	Tx- & Vin(±)	Data Transmit & Feeding power(±)	Tx-	Data Transmit
7	Data	Data	Data	Data
8	Data	Data	Data	Data

>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>

Packaging & Shipping

Mechanical & Dimension

Plastic Case Material	PC
Plastic Case Finish	Texture
Plastic Case Color	Gray
Plastic Case Dimension	85 x 76 x 36 (L x W x H) mm
Weight	150g
DC/AC Out Power Plug	Diameter	2.1 / 5.5mm or 2.5 / 5.5mm
	Length	12 +/- 0.5mm. 180℃ angle
	Polarity	Inside (+) / Outside (-)

Package

Number of unit in one Carton	100
Weight of Carton Volume	N.W.:17Kg. G.W.:19Kg. 1.9Cuft.
Dimension of Box	120 x 85 x 40 (L x W x H) mm

We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.

Accept small, trial orders, and costomised orders too!

Our Services

Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
