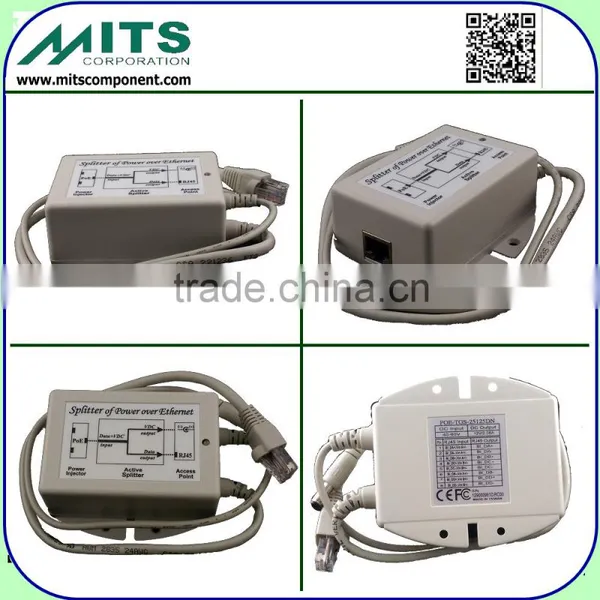

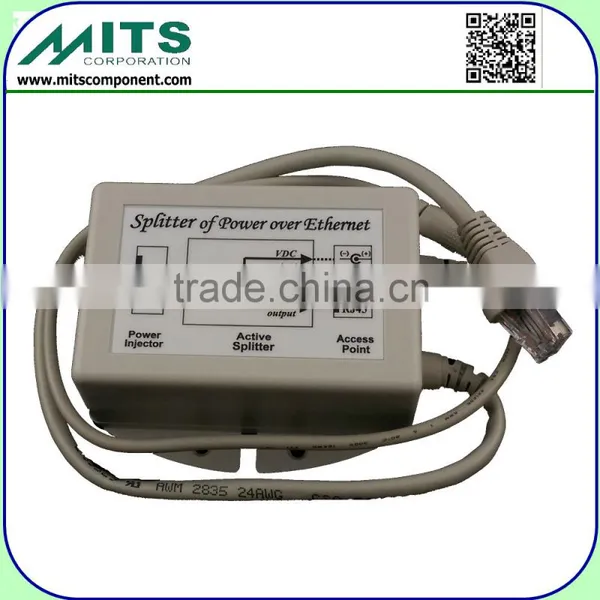

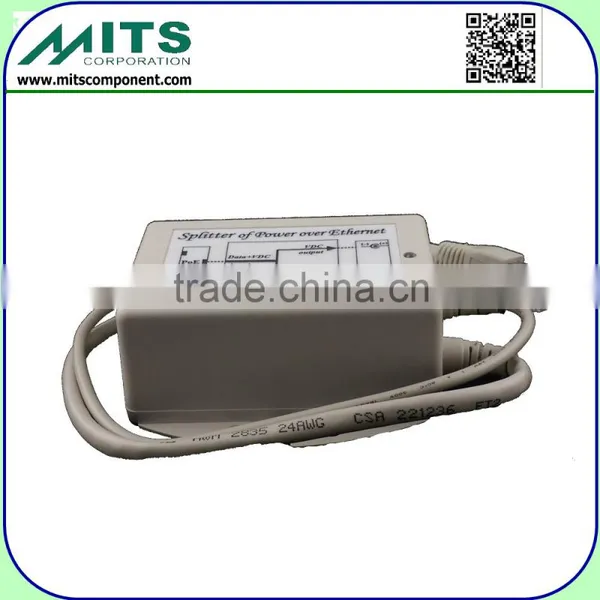

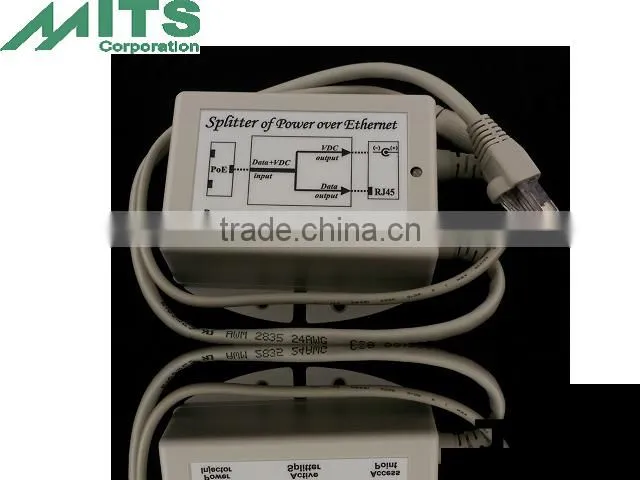

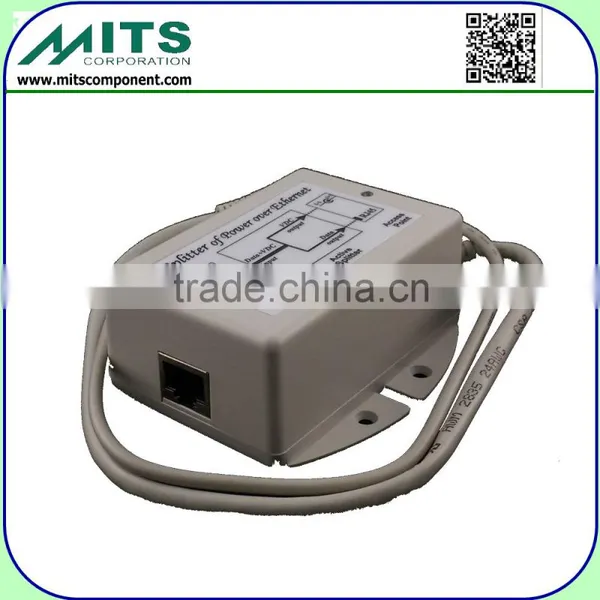

25W/12V, 2.1/5.5mm Gigabit PoE Splitter
- 5000 Piece / Pieces per Month
- TPE
Product Details
Place of Origin: | Taiwan | Brand Name: | MITS | Model Number: | POE-TGS-25121DN |
Product Description
Part number: POE-TGS-25121DN
Description: 25W/12V output, 2.1 / 5.5mm DC plug
Application
- IP Phone
- IP Camera
- Access Point
- Door Security
- Security CAM
- Network terminals which require power under 25W

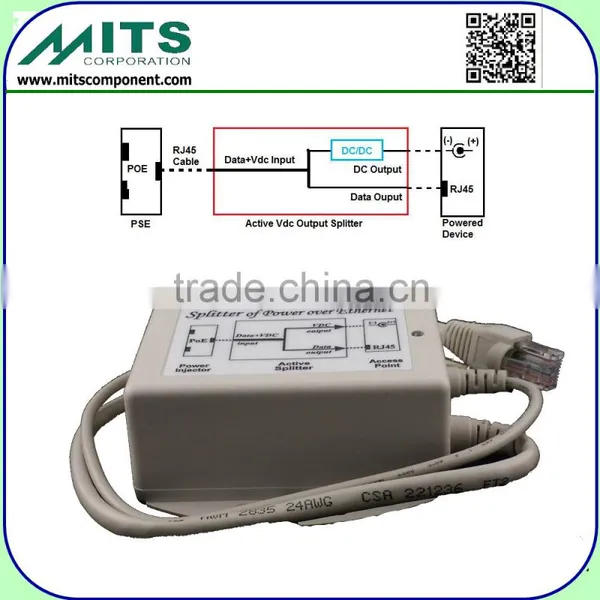

PSE feeds power via Spare pairs
| RJ-45 Input (Data & Power) | RJ-45 Output (Data Only) | ||
Pin | Symbol | Description | Symbol | Description |
1 | Rx+ | Data Receive | Rx+ | Data Receive |
2 | Rx- | Data Receive | Rx- | Data Receive |
3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
4 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
5 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
6 | Vin +/-, Data | Data Transmit | Vin +/-, Data | Data Transmit |
7 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
8 | Vin +/-, Data | Feeding power(±), Data | Data | Data |
PSE feeds power via Data
| RJ-45 Input (Data & Power) | RJ-45 Input (Data & Power) | ||
Pin | Symbol | Description | Symbol | Description |
1 | Rx+ & Vin(±) | Data Receive & Feeding power(±) | Rx+ | Data Receive |
2 | Rx- & Vin(±) | Data Receive & Feeding power(±) | Rx- | Data Receive |
3 | Tx+ & Vin(±) | Data Transmit & Feeding power(±) | Tx+ | Data Transmit |
4 | Data | Data | Data | Data |
5 | Data | Data | Data | Data |
6 | Tx- & Vin(±) | Data Transmit & Feeding power(±) | Tx- | Data Transmit |
7 | Data | Data | Data | Data |
8 | Data | Data | Data | Data |
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
Mechanical & Dimension
Plastic Case Material | PC | |
Plastic Case Finish | Texture | |
Plastic Case Color | Gray | |
Plastic Case Dimension | 85 x 76 x 36 (L x W x H) mm | |
Weight | 150g | |
DC/AC Out Power Plug | Diameter | 2.1 / 5.5mm or 2.5 / 5.5mm |
Length | 12 +/- 0.5mm. 180℃ angle | |
Polarity | Inside (+) / Outside (-) |
Package
Number of unit in one Carton | 100 |
Weight of Carton Volume | N.W.:17Kg. G.W.:19Kg. 1.9Cuft. |
Dimension of Box | 120 x 85 x 40 (L x W x H) mm |
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.
Accept small, trial orders, and costomised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
