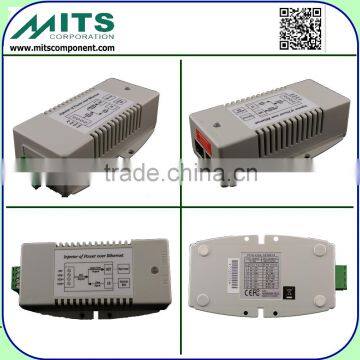

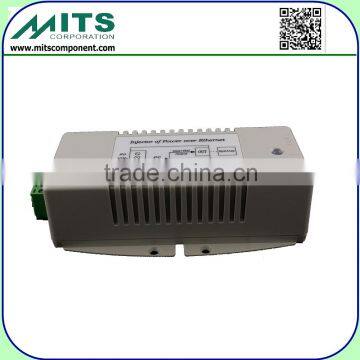

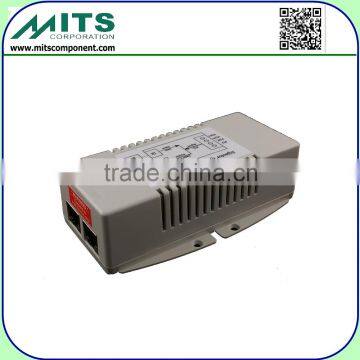

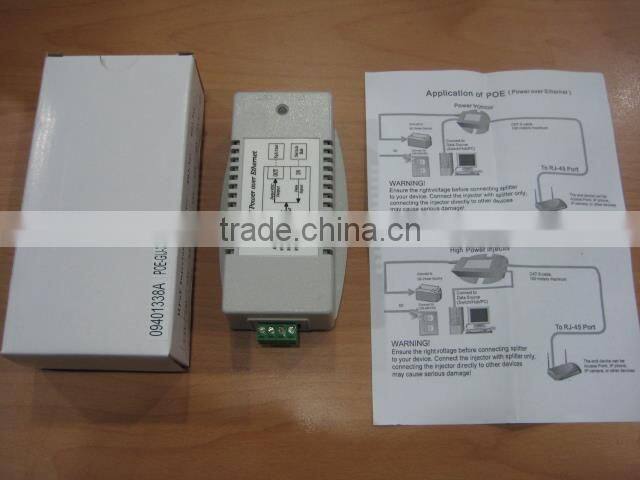

35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection

35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection thumbnail-1
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection thumbnail-2
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection thumbnail-3
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection thumbnail-4
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection thumbnail-5
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection thumbnail-6
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection photo-1
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection photo-2
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection photo-3
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection photo-4
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection photo-5
35W/56V DC 18V~36V Input Gigabit High PoE Injector With IEEE 802.3at Detection photo-6
US$ 76 - 124 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
MITS
Model Number:
POE-GIA-3556ID4
Contact Supplier Request Quote Chat Now
MITS COMPONENT & SYSTEM CORP.
Payment & Shipping
Payment Methods:
Port of Shipment:
TPE
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name MITS
Model Number POE-GIA-3556ID4



Product Description



35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection

Part number:    POE-GIA-3556ID4

Description:   DC 18V~36V Input, 35W/56V output, with IEEE 802.3at detection



Application



  • Industrial PC
  • Transportation
  • Security CAM
  • Any Gigabit Ethernet terminals which work with industrial DC input system
  • Any Gigabit Ethernet terminals which require power under 30W.


RJ-45 Connector and Pin-Out



RJ-45 Input (Data Only)

RJ-45 Output (Data & Power)

Pin

Symbol

Description

Symbol

Description

1

Rx+

Data Receive

Rx+

Data Receive

2

Rx-

Data Receive

Rx-

Data Receive

3

Tx+

Data Transmit

Tx+

Data Transmit

4

Data

Data

+Vdc

Power(+)+Data

5

Data

Data

+Vdc

Power(+)+Data

6

Tx-

Data Transmit

Tx-

Data Transmit

7

Data

Data

-Vdc

Power(-)+Data

8

Data

Data

-Vdc

Power(-)+Data


>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detectionContact us now >>>>

Packaging & Shipping



Mechanical & Dimension

Plastic Case Material

PC

Plastic Case Finish

Texture

Plastic Case Color

Gray

Plastic Case Dimension

125 x 75 x 38 (L x W x H) mm.



Package

Number of unit in one Carton

50

Weight of Carton Volume

N.W.:15Kg. G.W.:16Kg. 1.3Cuft.

White Box Dimension

N.W.:15Kg. G.W.:16Kg. 1.3Cuft.
35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection





35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection







We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.



Accept small, trial orders, and costomised orders too!



Our Services



Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection



35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>

Company Information



MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.

Any kind of customizing product projects are welcome. Please feel free to contact us for product details.35W/56V DC 18V~36V Input Gigabit High PoE Injector with IEEE 802.3at detection
