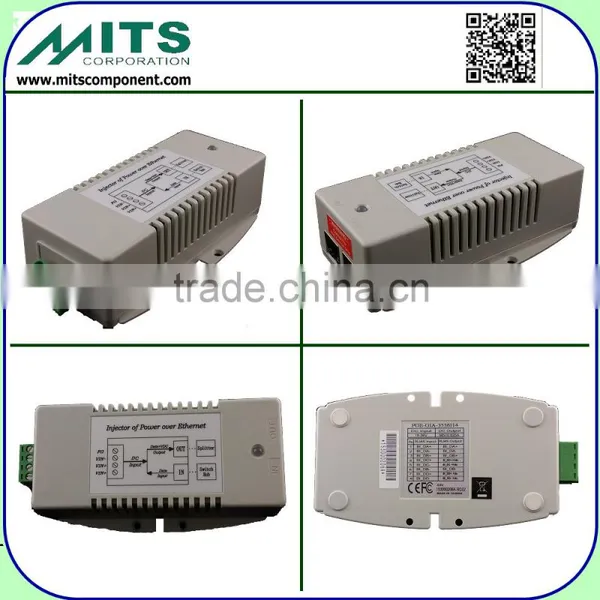

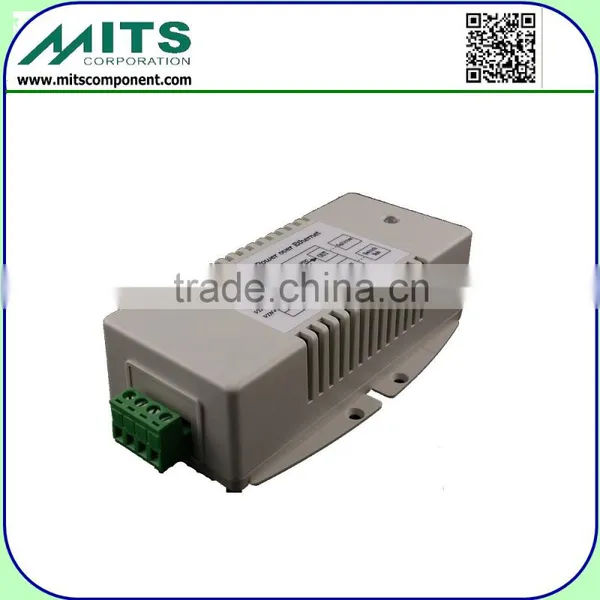

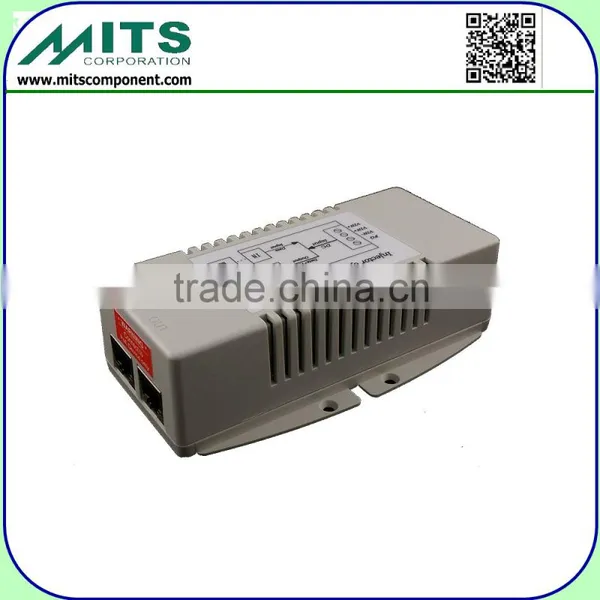

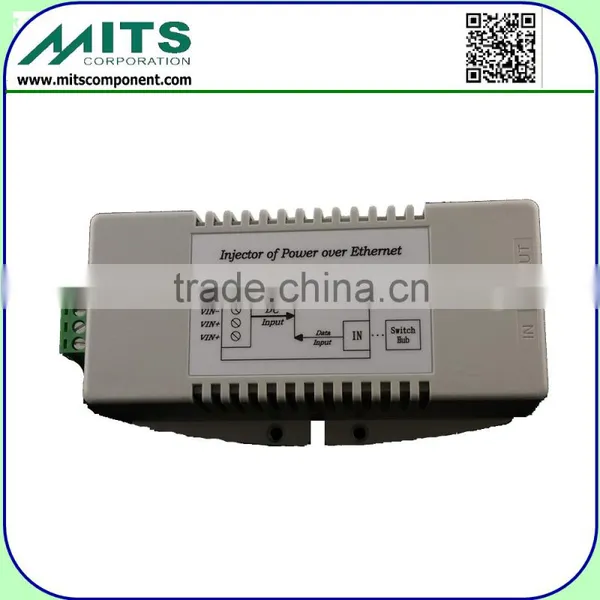

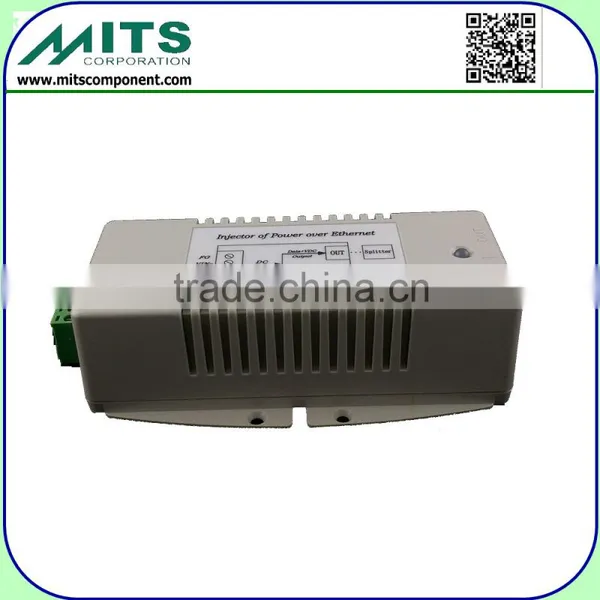

Help Center35W/56V DC 36V~72V Input Gigabit High PoE Injector
Related Products
-
35W/56V DC 10V~15V Input Gigabit High PoE Injector With IEEE 802.3at DetectionUS$ 76 - 124MOQ: 10 Pieces -
35W/56V DC 10V~15V Input Gigabit High PoE InjectorUS$ 60 - 104MOQ: 10 Pieces
-
12W/12V, 2.1 / 5.5mm PoE SplitterUS$ 26 - 62MOQ: 10 Pieces
-
12W/12V , 2.5 / 5.5mm PoE SplitterUS$ 26 - 62MOQ: 10 Pieces
-
12W/5V, 2.1 / 5.5mm PoE SplitterUS$ 26 - 62MOQ: 10 Pieces
Part number: POE-GIB-3556IN4
Description: DC 36V~72V Input, 35W/56V output, No optional function
Application
- Industrial PC
- Transportation
- Security CAM
- Any Gigabit Ethernet terminals which work with industrial DC input system
- Any Gigabit Ethernet terminals which require power under 30W.
RJ-45 Connector and Pin-Out
|
RJ-45 Input (Data Only) |
RJ-45 Output (Data & Power) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
Rx+ |
Data Receive |
Rx+ |
Data Receive |
2 |
Rx- |
Data Receive |
Rx- |
Data Receive |
3 |
Tx+ |
Data Transmit |
Tx+ |
Data Transmit |
4 |
Data |
Data |
+Vdc |
Power(+)+Data |
5 |
Data |
Data |
+Vdc |
Power(+)+Data |
6 |
Tx- |
Data Transmit |
Tx- |
Data Transmit |
7 |
Data |
Data |
-Vdc |
Power(-)+Data |
8 |
Data |
Data |
-Vdc |
Power(-)+Data |
>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
Mechanical & Dimension
Plastic Case Material |
PC |
Plastic Case Finish |
Texture |
Plastic Case Color |
Gray |
Plastic Case Dimension |
125 x 75 x 38 (L x W x H) mm. |
Package
Number of unit in one Carton |
50 |
Weight of Carton Volume |
N.W.:15Kg. G.W.:16Kg. 1.3Cuft. |
White Box Dimension |
N.W.:15Kg. G.W.:16Kg. 1.3Cuft. |
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.
Accept small, trial orders, and costomised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customizing product projects are welcome. Please feel free to contact us for product details.
