EN50155 & EN60945 Industrial DC Input POE Injector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Model Number:
MIT-45G Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
70W IEEE 802.3at Standard Ultra High Power PoE Injector, MITS Taiwan, Gigabit, POE-UIJ-7056ND8, 85% High EfficiencyNegotiableMOQ: 1 Unit -
AC 24V 80W, Ultra High Power POE SplitterNegotiableMOQ: 1
-
8 Port Gigabit PoE Switch & Extender, MITS Taiwan, Endspan, 7 PSE & 1 PD Port, IEEE802.3 af & at Standard, Auto-negotiatingNegotiableMOQ: 1 Unit
-
24 Port Management Rack Mount With IEEE 802.3 af Detection of Mutitiport POE Injector, MITS Taiwan, Midspan, DC & AC InputNegotiableMOQ: 1 Unit
-
4 Port IEEE 802.3 Af/at +1 Combo (UTP+Fiber) PoE Fiber Switch, MITS Taiwan, PoE Extender, PoE Switch, MDI/MDIX Auto-crossoverNegotiableMOQ: 1 Unit
Place of Origin
Taiwan, China
Model Number
MIT-45G Series
Product Description

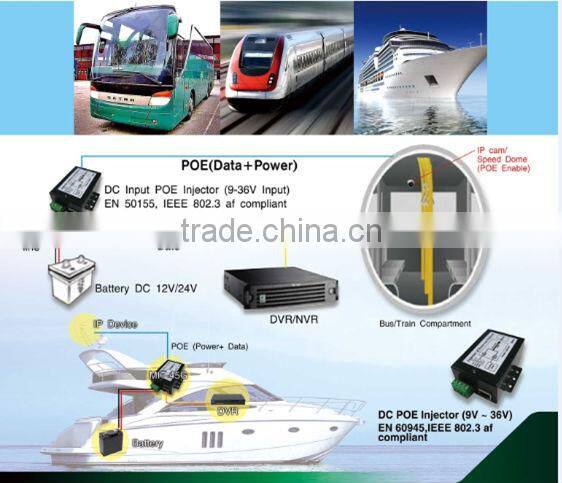

The product is a dc to dc poe injector which specially manufacture for vehicle, railing stock and ships. Its metal outdoor metal casing prevents the weathering of damaging the poe injector itself. If the unit is installed near th sea or bayside area.The point is the unit is passed the EN50155 and EN60945 certifications for allowance of its use.
- Specs:
- Input voltage: 9 to 36V DC
- Output voltage and current: 48V
- Maximum load: 0.35A
- Power: 17W maximum
- Total power: 16.8W
- Ripple and noise bandwidth: from DC to 20MHz
- Efficiency: 75% min at 12V/24V DC, input at F.L
- Short-circuit protected output
- Short GND terminal to prevent damage to power supply
- Auto-recovery
- Current limit: 150 to 250% at 9V to 36V DC
- FCC class B standard
- Operating temperatures: -25 to 70°C
- Storage temperatures: -25 to 85°C
- Operating humidity: 5 to 90%
- Free air cooling
- Dimensions: 86 x 76 x 36mm
- Low-battery protection
- Dual DC power input
- Output: 9.3 RJ45 connector

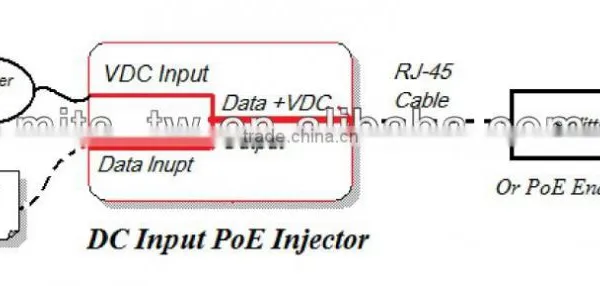

- RJ45 input (data only) and RJ45 output (data and power)
Our Services
- Customization for customer to fits their request
- Providing testing samples
