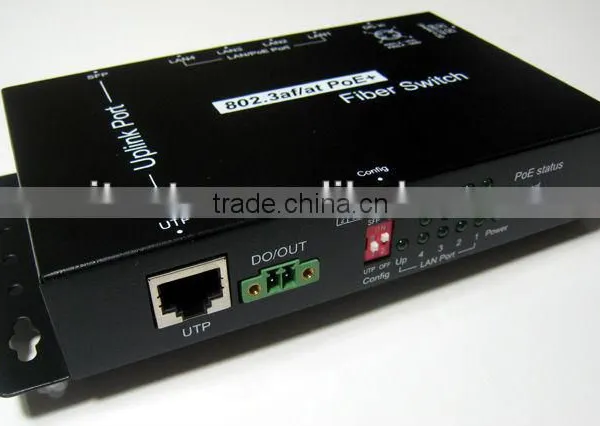

PFS-01O4-M is an Industrial 802.3at/af PoE+ Fiber Switch, providing Power over Ethernet capability and non-blocking wire-speed Fast Ethernet performance in harsh industrial environment. It provides 4 port 10/100Base-T copper with 802.3af/at PoE injector and also provide one Combo Port (UTP/SFP) for uplink to data-center. The PFS-01O4-M design for Industrial like function like redundant power input, Uplink fault detection for NO output, also can using fiber-GBIC for Fiber link without Media convert design.
The PFS-01O4-M is well suited for applications in deploying surveillance system, and security control and wireless service in climatically demanding environments with wide temperature range from -10 to 60 degrees C.
High Power PoE for Securty and Public
To fulfill the demand of High Power PoE for network applications with Megabit speed transmission under wide temperature, the PFS-01O4-M provides 4 10/100Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30 watts of power output and data per port over one Cat.5E / 6 Ethernet cable.
With totally 60-watt PoE budget on the whole system, the PFS-01O4-M is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.

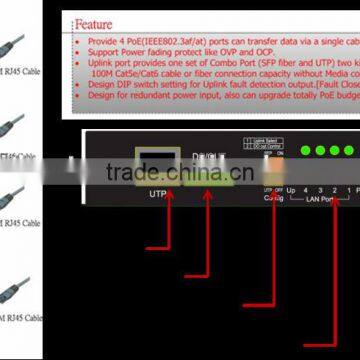

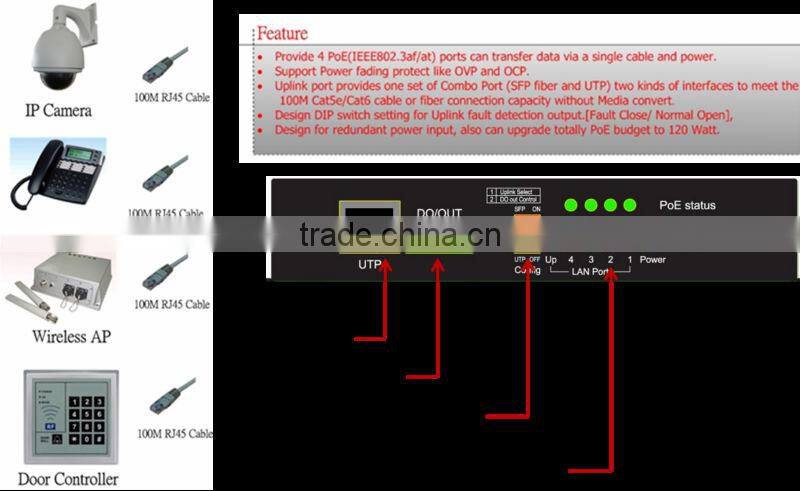

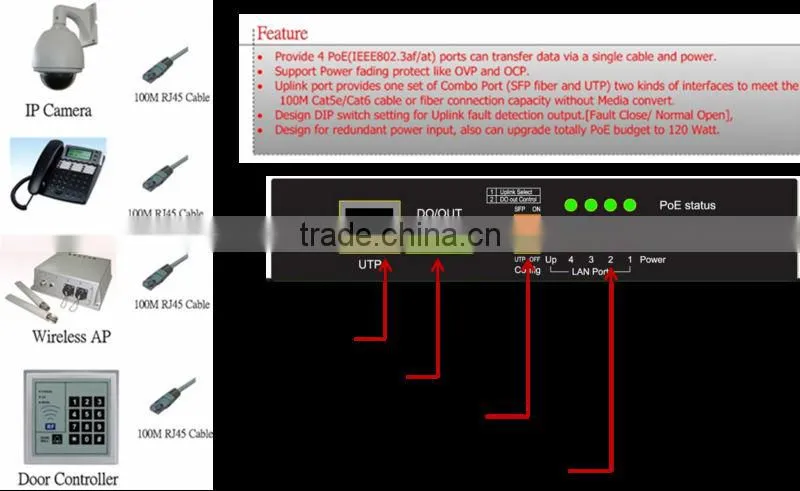

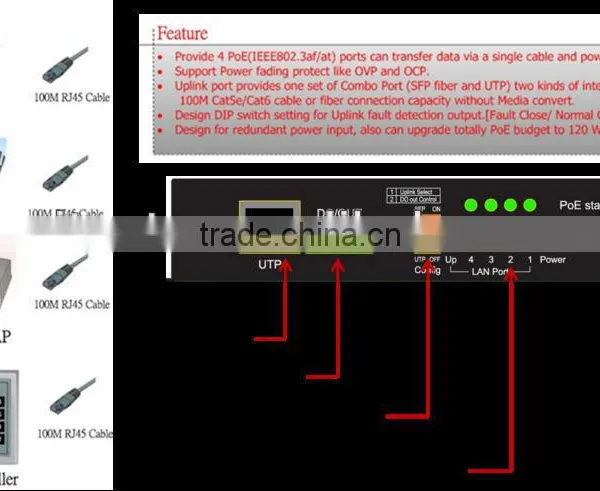

Key Features
l TP port Support MDI/MDIX auto-crossover function.
l TP port Support 10/100Base-T Auto-negotiation.
l Support Max packet size 1552 byte.
l Provide 4 PoE ports can transfer data via a single cable and power, also compatible IEEE802.3af/at each Port.
l Support Power fading protect like OVP and OCP.
l Uplink port provides one set of Combo Port (SFP fiber and UTP) two kinds of interfaces to meet the 100MCat5e/Cat6 cable or fiber connection capacitywithout Media convert.
l Design DIP switch setting for Uplink fault detection output.[Fault Close/ Normal Open],
l Design for redundant power input, also can upgrade totally PoE budget to 120 Watt.
Applications

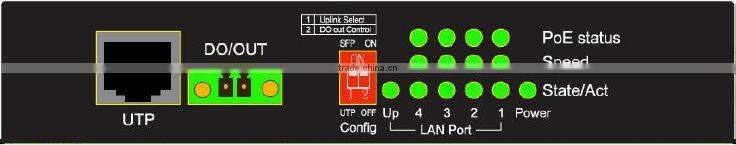

LED Indicators on the Front Panel
LED |
Status |
||
Glowing |
Dimming |
Flashing |
|
POWER |
DC power feeding in |
Not powered |
N/A |
|
LAN Port1~4 State/Act |
LAN Port Link |
Disconnected or Link failed |
Received or Transmit |
|
LAN Port Up State/Act |
Uplink Port UTP/SFP Link |
Disconnected or Link failed |
Received or Transmit |
LAN Port Speed |
Port Connect with 100Mbit |
Port Connect with 10Mbit |
N/A |
LAN 1~4 PoE Status |
Indicate the port is providing 48/56V DC in-line power. |
The port is turn-off 48/56V DC in-line power. |
N/A |
DIP Switch Config Setting
CONFIG |
DIP1 Uplink Port Selecting |
DIP2 Uplink Fault DO/OUT Controller |
ON |
Fiber Port for Uplink Enable |
Enable DO/OUT |
OFF |
UTP Port for Uplink Enable |
Disable DO/OUT |
Attention: To actively update DIP1 switch settings, power off and then power on the PSF-0104-M
Recommend CONFIG Setting
Uplink Interface Using SFP Mini-GBIC
CONFIG |
DIP1 |
DIP2 |
|
ON |
ON |
Uplink Interface Using UTP RJ45
CONFIG |
DIP1 |
DIP2 |
|
OFF |
ON |

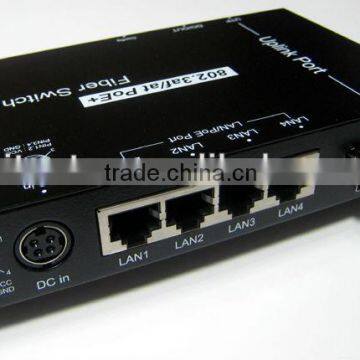

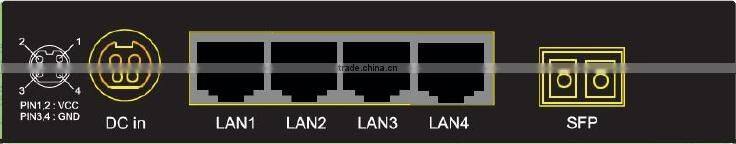

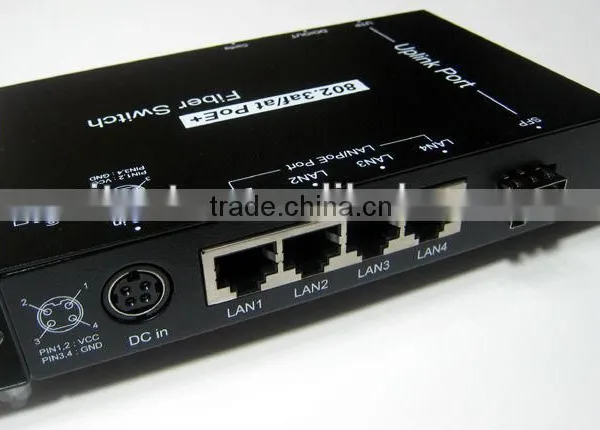

Ports on the Real Panel
Port Name |
Type |
Functions |
DC IN |
DC 48/56V |
Connects to the power adapter |
LAN1~4 |
RJ45 |
Connects to Ethernet port on FTTx/xDSL Modem or Switch for Internet Access. |
SFP |
SFP |
Option SFP type Gigabit for Fiber Link with longer distance |
Note: Uplink port for SFP or UTP port cannot using in the same time.
Specification
Product Model: |
PFS-0104-M 4-port IEEE 802.3af/at+1 Combo (UTP+Fiber) POE Fiber Switch |
Technical Specifications | |
Hardware |
|
|
Connectors
|
4 x 10/100 Base-T RJ45 with PSE function |
(Uplink Port) Fast Ethernet: 1 x 10/100 Base-T RJ45 TP | |
(Uplink Port) Fiber: 1x SFP Socket (optional SFP transceivers) | |
4 PIN DC In (PWR 1) | |
2 PIN DC In (PWR 2) Terminal Block | |
|
Indicators |
Power LED |
LAN 1~4 Link / Act LED | |
LAN 1~4 Speed LED | |
LAN 1~4 Poe On/ Off LED | |
WAN Link/ Act LED (For UTP/Fiber Uplink Status) | |
Dip Switch Functionality |
Uplink Interface Setting (ON->Fiber, Off-> UTP) |
Uplink No Connection /No Signal Output : ON/OFF | |
|
Power Protection: (Surge) |
IEC 61000-4-2 level 4 (ESD), 15KV (air discharge), 8KV(contact discharge) |
IEC-61000-4-5 | |
MIL STD 883G, method 3015-7 Class 3B, -25kv HBM (human body model) | |
Installation |
DIN Rail Kit and Wall Mount Ear |
Dimension |
173mm(W) X90mm (D) X 28 mm (H) |
Weight |
450g |
|
Power Requirement |
External Power Supply: 48V~56V/ 65W |
System Power Consumption:< 4 Watts | |
PoE Power Budge: 60W (Can add 2nd Power Adapter to extend) | |
Power over Ethernet | |
PoE Standard |
IEEE 802.3af/ IEEE 802.3 at Power Over Ethernet |
Power Pin Assignment |
4/5 (+), 7/8 (-) |
PoE Power Output |
Per port 48~56V, DC 350mA Max. 15.4 Watts (IEEE 802.3af) |
Per port 48~56V, DC 600mA Max. 30Watts (IEEE 802.3at) | |
Max. number of Class 4PD |
4 |
Switch Specification | |
|
Network Standards |
IEEE 802.3 10 Base-T, 10M bit/s |
IEEE 802.3u 100 Base-TX/100 Base-FX, 100M bit/s, Auto negotiation | |
IEEE 802.3x Full Duplex and Flow Control | |
IEEE 802.3 af Power over Ethernet | |
IEEE 802.3 at High Power over Ethernet | |
MDI/MDI-XZ Auto Crossover | |
Switch Processing Scheme |
Store and Forward |
Address Table |
Support 2K MAC address entries |
Flow Control |
Back pressure for half duplex IEEE 802.3x . Pause Frame for full duplex |
Switch fabric |
1Gbps |
Maximum Transmit Unit |
1552 byte |
Emissions Compliance |
FCC part 15 Class B, CE Mark |
|
Environmental Conditions |
Operating Temperature: -10°C~+65°C |
Storage Temperature: -20°C~+70°C | |
Operating/ Storage Humidity: 10%~90%, Non-condensing | |
