The DIN-POE4S and DIN-POE4D family is a DC/DC PoE (Power over Ethernet) Injector, provide up to 4 different voltage DC input and four different voltage PoE output, output power maximum 35W/port (DIN-POE4D) or 1A/port (DIN-POE4S) , data rate can be operating at 10/100/1000Mbps.
The polarity of each PoE output can be reversed if you need to reverse the output polarity. This manual will help you to install and setting the PoE injector.
Hardware Description:
Data Input

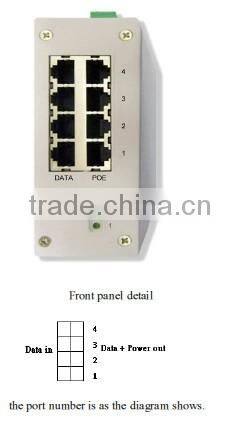

The left RJ45 ports 1-4 on the front panel are used for Gigabit Ethernet Data Input. The model is a midspan, without Ethernet switch funtionality. All four ports with surge protection.
Power Input

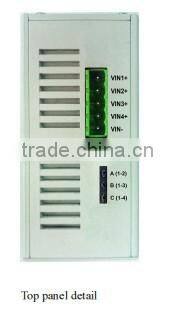

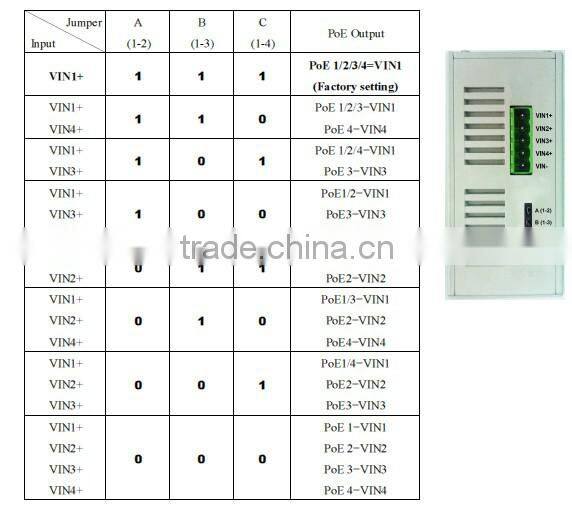

The input voltage range of DIN-POE4D is40~57Vdc. they are all common negative design, the green terminal (CON1) on top panel is used for power input wiring, it can be connected to maximum 4 different sources with 4 different voltges, the jumper A, B,C of JP9 on tp and controls the input and ouptut connectioin, its settig as below:
POE Output
The right RJ45 ports 1-4 on the front panel are used for carry poe output. the output voltage is the same as inpu, no regulated. Nomrally as detailed beow:
- Data pair A on line 1 and 2
- Data pair B on line 3 and 6
- Data pair C plus V+ on line 4 and 5
- Data pair D plus V- on line 7 and 8
Spec
Data Rate |
10/100/1000Mbps |
Input Voltage |
44Vdc to 57Vdc (DIN-POE4D) 12Vdc to 57Vdc (DIN-POE4S); |
Maximum PoE output |
|
Compliance |
802.3af/at (DIN-POE4D) |
PoE protection |
over-current protection/under voltage |
LEDs: |
Green-Power ready, Off-No power apply |
Operating temperature |
-40℃~ +75℃ |
Operation humidity |
90% relative humidity, non-condensing |
Storage temperature |
-40℃~+85℃ |
Dimension |
125mm(H) x46mm(W) x102mm(D) , DIN RAIL Mountable |
Surge Protection on data Input ports : | |
Operating Voltage |
Data 5V |
Clamping Voltage |
Data 16.5V(@IPP = 5A, tp = 8/20µs, I/O pin to GND) |
Peak Pulse Current |
20A (tp = 8/20µs) |
Pin Protected |
All 8 pin protected |
Max Shut Capacitance |
<3pF (VR-0V, f-1MHz, I/O pin to GND) <1.5 pF (VR-0V, f-1MHz, Between I/O pins) |
IEC compatibility(EN 61000-4) |
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 20A (8/20µs) |
