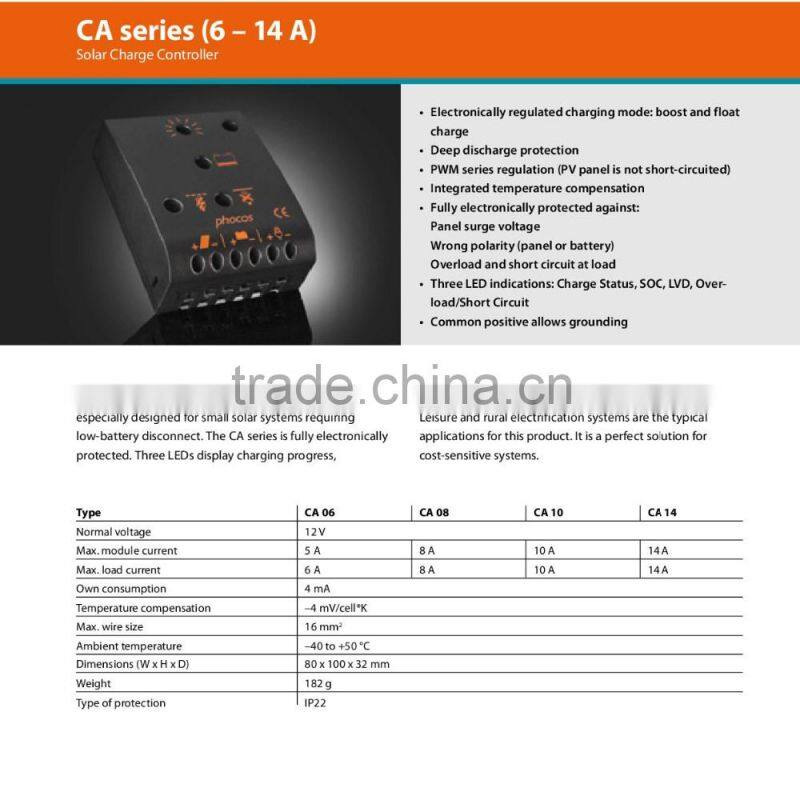

•Electronically regulated charging mode: boost and float charge

•Deep discharge protection

•PWM series regulation(PV panel is not short-circuited)

•Integrated temperature compensation

•Fully electronically protected against

Panel surge voltage

Wrong polarity(panel or battery)

Overload and short circuit at load

•Three LEO indications: charge status , SOC,LVO,Overload/short circuit

•Common positive allows grounding

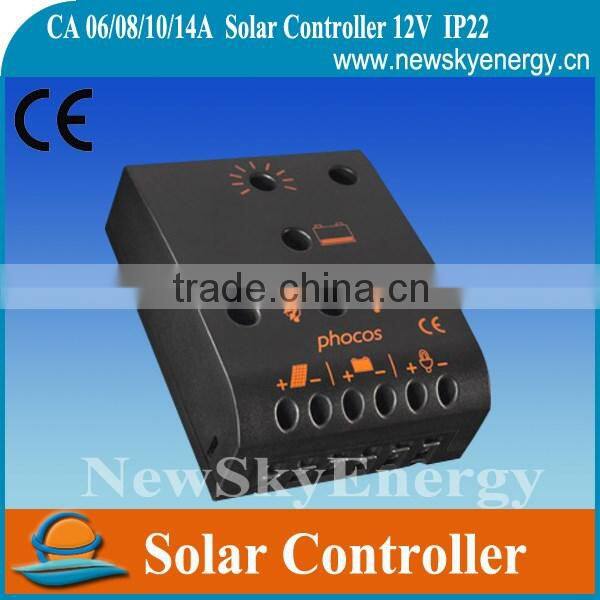

The new version of the CA solar charge controller series is especially designed for small solar system requiring Low battery disconnect. The CA series is fully electronically protected. Three LEDs display charging progress,battery SOC and load status(load disconnect). Leisure and rural electrification systems are the typical applications for this product. It is a perfect solution for cost-sensitive systems.

The charge controller is intended exclusive for use in photovoltaic system with 12v nominal voltage, and in conjunction with vented or sealed (VRLA) lead acid battries only.

1.Batteries store a large amount of energy. Never short circuit a battery under any circumstances. We recommend connecting a fuse(slow acting type) directly to the battery.

2.Batteries can produce flammable gases. Avoid making sparks,using fire or any naked flame under any circumstances. Make sure that the battery room is entilated.

3.Avoid touching or short circuiting wires or terminals. Be aware that the voltages on specific terminals or wires can be up to double the battery voltage. Use isolated tools, stand on dry ground and keep your hands dry.

4.Keep children away from batteries and the charge conntroller.

5.please observe the safety recommendations of the battery manufacturer. if in doubt, consult your dealer or installer.
