Electricity Save Easy Use Very Clean Solar Panel Controller

Electricity Save Easy Use Very Clean Solar Panel Controller

• Negative grounding

• Robust aluminum housing

• Epoxy encapsulated PCB to prevent corrosion (IP68)

• Infrared remote control programming accessory (CIS-CU

• Timer functions

• Wide range of programmable functions

• External temperature sensor (optional)

• 4-stage battery charging (main, float, boost, equalization)

• Dual load or dimmable load output

•  Automatic system voltage recognition (12/24 V)

•  Compact size

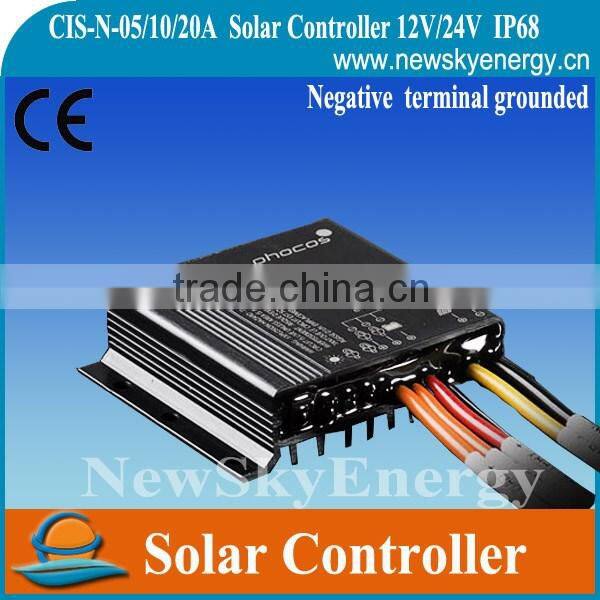

1.The Phocos CIS-N Charge Controller is one of the latest members of the successful Phocos family of fully encapsulated, high-performance CIS charge controllers providing optimum performance. Thanks to its high protection class (IP68), the CIS-N is ideal for applications in demanding environments such as the gas and oil industry (e.g. remote monitoring, weather stations, valves controlling, SCADA, and many more). It is also perfect for any solar outdoor applications which are exposed to harsh weather conditions. CIS-N was specially developed as a charge controller for applications requiring negative grounding, and features the identical properties as the popular positive-grounded CIS.

2.It is available in two versions: A single load version with dimming output and a dual load version with two load outputs for independent control of two loads.

3.The timer and other useful functions are completely programmable via the CIS-CU remote control unit. The small size of the devices offers extra flexibility, fitting easily into almost every application.

4.Hazardous Locations (HazLoc) tested according to: ANSI/ISA 12.12.01-2012, Class I Division 2 (Groups A-D)

5.Ordinary Locations (OrdLoc) tested according to: UL1741:2005 CAN/CSA C22.2 No. 107.1-01

Also offer different phocos solar charge controller series :

CIS05/10/20A

CIS-05/10/20A-2L

CIS-N- 05/10/20A

CML 08-20A

CA6-14A

CISLEDX 10-20A

CIS MPPT20A

CM 4-10A

CX 10-40A

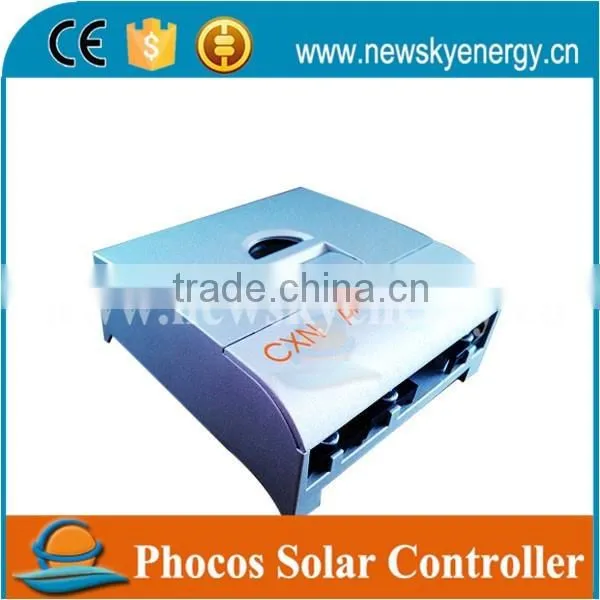

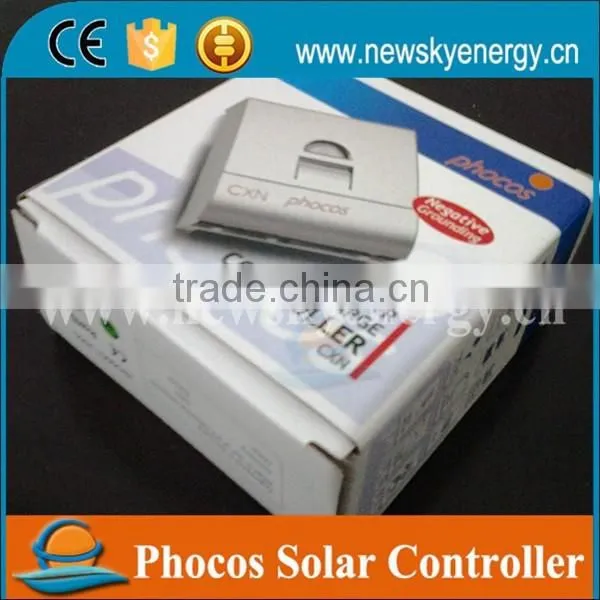

CXN 10-40A
