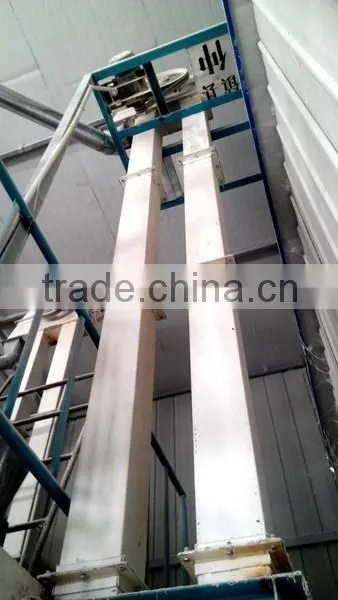

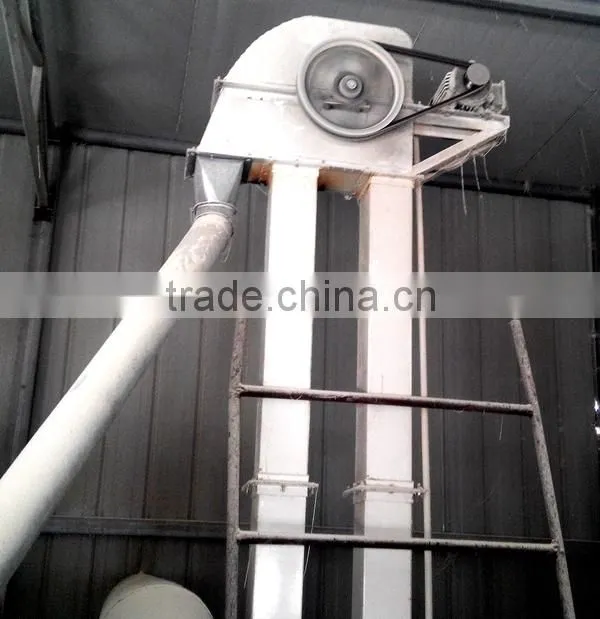

grain bucket elevator
We introduce ourselves as Henan Chengli Grain&Oil Machinery Co., Ltd.,
established in 2008, is a professional manufacturer which specializes in producing grain processing machineries.
Our superior products are complete set of 5T-200T/D maize flour processing machine and wheat flour processing machine.
In the past many years, our company has developed a series of new and high-tech products which were awarded with the titles of "Famous and Excellent Product" and "Trustworthy Quality". We not only have a ready market in China, but also export our products to many countries and regions including Russia, Nepal, Ukraine and South Africa all around the world .
Principal function:
Bucket elevator is widely used to deliver grain at vertical or big angle direction .
It can guarantee the sequential of grain delivery .
Working principle:

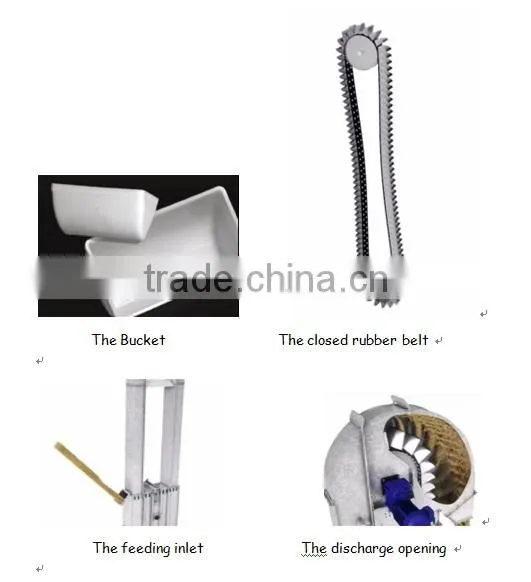

There will be one bucket fixed on closed rubber belt at every certain distance.
Outside driving device will drive the rubber belt and bucket to move .

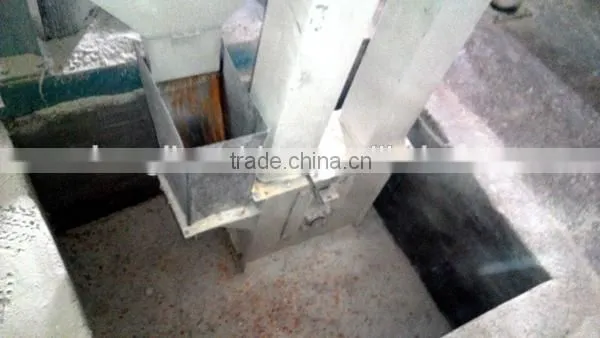

Grain goes into the bottom of the machine from the feeding inlet ,
and lifted by moving bucket upside, then goes to the top, and drop from the bucket to discharge opening be effect of gravity and centrifugal force.
The parameter
|
Parameter
Model |
Diameter of the head |
Power |
Capacity |
Width of the belt |
TDTG20/10 |
200 |
1.1 |
2.5 |
110 |
TDTG26/13 |
260 |
1.5 |
7 |
140 |
TDTG36/18 |
360 |
2.2 |
15 |
190 |
TDTG36/23 |
360 |
3 |
25 |
240 |
TDTG50/28 |
500 |
7.5 |
50 |
290 |
More details about grain bucket elevator, feel free to contact me .
