Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > High Quality Electromagnetic Water and Air Ultrasonic Flow Meter for Liquid

High Quality Electromagnetic Water and Air Ultrasonic Flow Meter for Liquid

US$ 300 - 999 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

KF700-KA

Contact Supplier Request Quote Chat Now

Ningbo GC Bob Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GC

Model Number KF700-KA

High quality electromagnetic water and air ultrasonic flow meter for liquid

Specification

Diameter	DN10mm-DN100
Electrode	316L,Hb,Hc,Ti,Ta,Pt
Liner	PTFE,PFA,F46
Medium	Conductivity liquids
Medium conductivity	≥5μ s/cm
Accuracy	±0.5%RS- ±1.0%RS
Velocity of flow	0.1m/s- 10m/s
Working temperature	-25°C~150°C(base on material)
Working pressure	0.6MPa-1.6MPa(base on diameter)
Output signal	4-20mA/pulse/frequency
Power supply	220VAC/24VDC,battery
Installation type	Compact, remote
Protection class	IP65,IP67,IP68
Communication	RS485 or HART protocol is optional

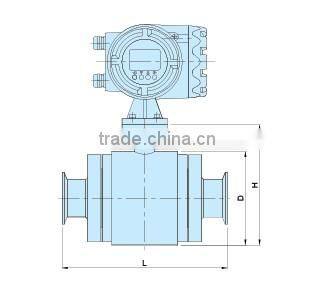

Size

D N	L	D	H
10	180	91	230
15	180	91	230
20	180	91	230
25	180	91	230
32	190	105	145
40	200	120	165
50	220	140	180
65	230	150	190
80	250	160	200
100	270	190	23

Flow Range

DN mm	Min flow m3/h	Flow Range Selection(m3/h)
10	0.08	0.16, 0.2, 0.25, 0.3, 0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5
15	0.2	0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0
20	0.3	0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0
25	0.5	1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0
32	0.8	1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.16,20,25
40	1.2	2.5, 3.0, 4.0, 5.0, 6.0, 8.0,10.0,12,16,20,25,30,40
50	2	4.0, 5.0, 6.0, 8.0, 10, 12,16,20,25,30,40,50,60,70
65	3.5	6.0,8.0,10,12,16,20,25,30,40,50,60,80,100,120
80	5	10,12,16,20,25,30,40,50,60,80,100,120,160
100	8	16,20,25,30,40,50,60,80,100,120,160,200,250
125	12	25,30,40,50,60,80,100,120,160,200,250,300,400
150	18	40,50,60,80,100,120,160,200,250,300,400,500,600
200	30	60,80,100,120,160,200,250,300,400,500,600,800,1000
250	50	100, 120, 160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600
300	70	160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500
350	100	200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000
400	120	250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000
450	160	300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000
500	200	400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000
600	300	600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000
700	400	800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000
800	500	1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000
900	650	1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 18000
1000	800	1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000, 20000
1200	1200	2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000
1400	1500	3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000
1600	2000	4000, 5000, 6000, 8000, 10000,1 2000, 16000, 20000,2 5000, 30000, 40000,50000, 60000
1800	2500	5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000
2000	3000	6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000, 80000, 100000

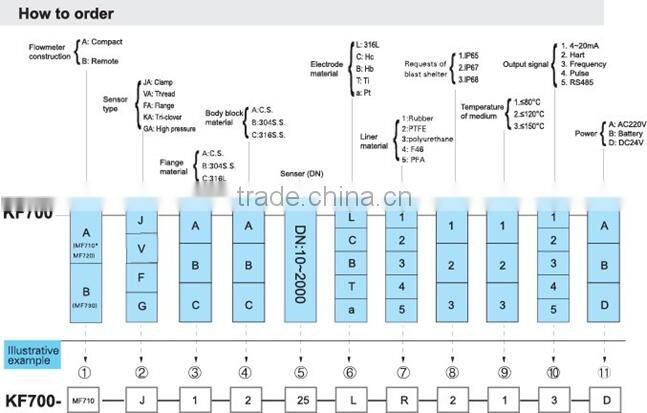

How to order

Quality Control

Based on the advanced equipment, high technology, serious inspection procedure, best after-sales service, our professional level and unremitting efforts, gaining the best reputation and response from the customers.

Testing

Welding

Quality Control

Packaging & Shipping

From the raw material to the finished production we have the very strict and serious procedure to guarantee our products get to the different quality requirements.

Company Information

Ningbo GC-BOB Instrument Company is a professional pressure gauge & thermometer manufacturer which located in China main port Ningbo, cover an area of 2000 square.

Why choose us? ------- Ningbo GC Bob Instrument Co.,Ltd.
------------------------------------------------------------------------------------------------
1) Advance Equipment and Professional Technology: we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.

2) Best After-sales Service : Our company provide best after-sale service all the time , for our goal is a long trade cooperation term.

3) Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated.

4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.

5) Convenient Purchase And Save Cost: GCBob is a direct exporter and skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.

6) Best Reputation : Our factory have ten years experiences and have already gaining the best reputation and response from the customers from all over the world.

7) OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .

8) Multilingual: We can provide all kinds of languages, English, Spanish, French, Arabic, Japanese, Russian, meet the different needs of our customers.

Welcome OEM orders and process according to customer’s sample or drawing. We will constantly develop new products, new technology of application and consistently focus on product quality and after-sales service with the company's image,our goal is a long trade cooperation term.
