High quality cable float level switch
Working Principle:
Float Level Switch adopts micro-switch or mercury switch as the contact component, when the liquid level is raised and touch with the float ball, the float ball will change the angel along with the liquid level.
1. For micro-switch, when the angle is above 28°between liquid level and top angular, the float level switch will output signal of ON or OFF.
2. For mercury switch, when the angle is above 10°between liquid level and top angular, the float level switch will output signal of ON or OFF
Technical Data:
High Corrosive Liquid Useable
Set Point adjustable (max. set point 7)
Multiple Level Set Point available
Float Enclosure Class: IP65
Material: Housing Aluminum alloy with paint, PP and option available;
Float-Stainless Steel;
Cable-PVC,plastic;
Flange: PVC, PP and option available;
Weight-PVC
Float Size:80 x 110mmL
Housing Conduit Size: ¾”NPT(F), option available
Flange Size: 4” (for LQ-01-LQ-05),6”(for LQ-06-LQ-07) option available
Cable Length: Standard 4M, option available (max. 25M)
Working pressure Limited: maximum 2.5kg/cm²
Working Temperature:-30 ~ 160℃
Working SP. Gr.: ≥0.9
Switch Mode: SPDT mode
Switch Rating: 5A/125VAC, 3A/250VAC, 5A/8V & 14VDC,
4A/30VDC, 0.4A/125VDC

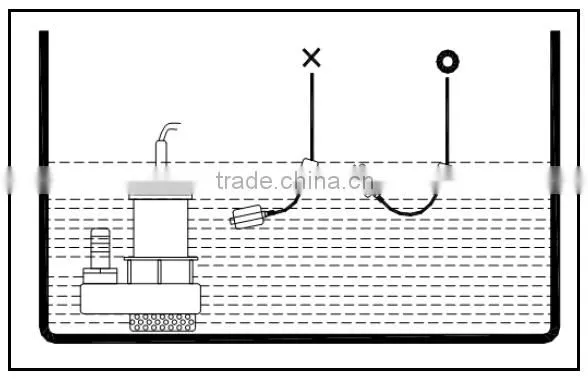

Installtion:
Combination Mode:
